What battery configurations does this 200A Smart BMS support?

This BMS supports 7S to 16S LiFePO4 battery packs, covering 24V (8S), 36V (12S), and 48V (16S) nominal voltage systems with 200A continuous charge and discharge current.

Does this BMS have communication ports for inverter or solar charge controller integration?

Yes, it features RS485 and CAN communication ports, allowing integration with compatible inverters, solar charge controllers, and external monitoring systems for real-time data exchange.

Can I adjust the overcharge and over-discharge protection parameters?

Yes, this is a fully adjustable smart BMS. You can customize overcharge voltage, over-discharge voltage, overcurrent limits, delay timers, and battery capacity settings through the configuration interface.

What type of cell balancing does this BMS use, and is it automatic?

It uses automatic passive balancing, which activates during charge cycles to maintain uniform voltage across all cells, improving efficiency and extending overall battery lifespan without manual intervention.

Does the HD TFT display show all critical battery parameters in real-time?

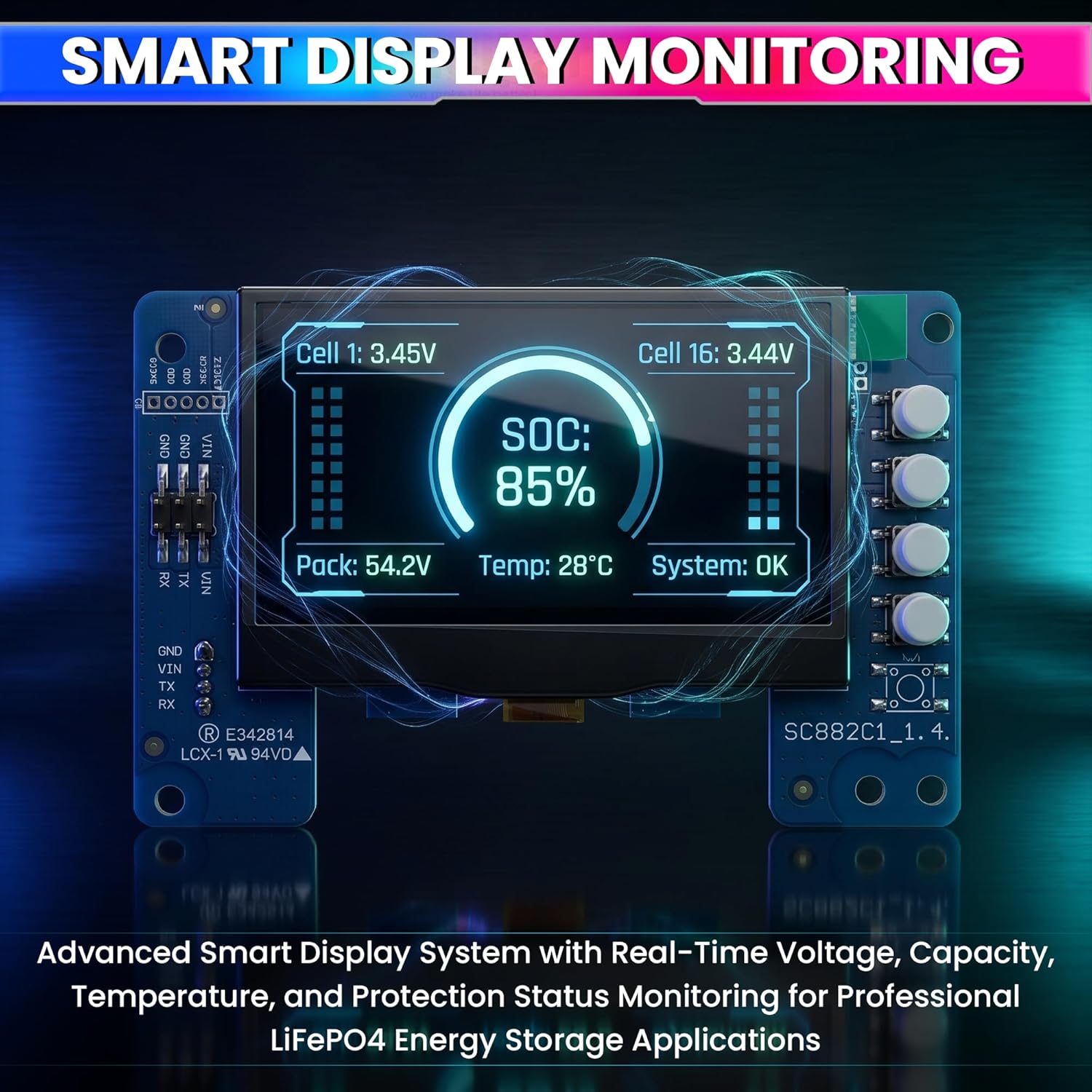

Yes, the built-in HD TFT display shows real-time individual cell voltages, total pack voltage, charge/discharge current, state of charge (SOC), and temperature readings for quick on-site system diagnostics.

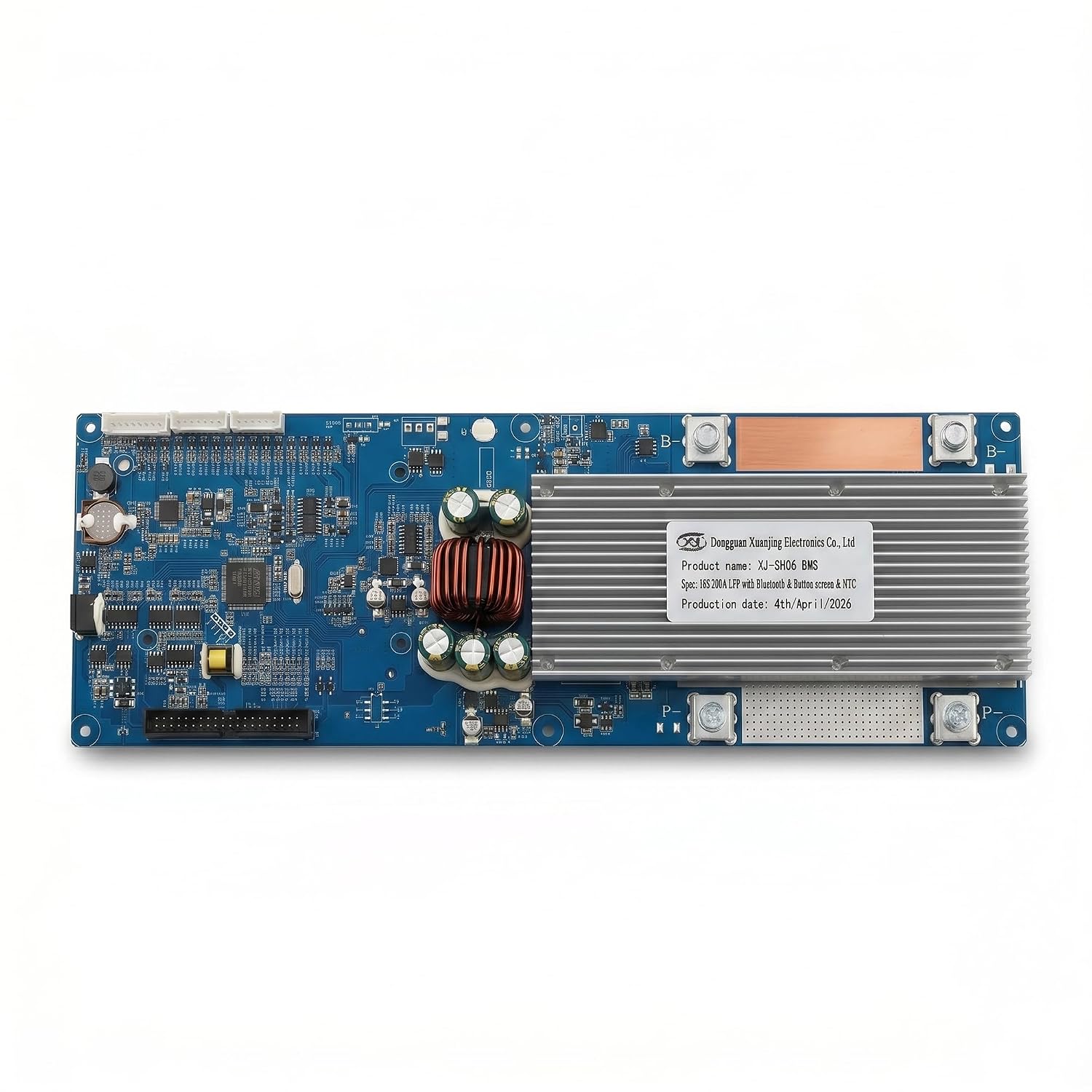

7S–16S 200A Smart BMS for LiFePO4 Battery Pack | Display | ESS Solar Energy Storage BMS

Product label: Sold out

7S–16S 200A Smart BMS for LiFePO4 Battery Pack | Display | ESS Solar Energy Storage BMS

Name: 7S–16S 200A Smart BMS for LiFePO4 Battery Pack | Display | ESS Solar Energy Storage BMS
Brand: amiciKart
SKU: 1xBMS-7-16S-200A-BS
Price: 27899.00 INR
Availability: OutOfStock

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Rs. 27,899.00 -21% Rs. 35,000.00 (MRP Inclusive of All Taxes)

Rs. 27,899.00

Chat on WhatsApp

Superfast Same-Day Shipping

30-Day Easy Returns

No questions asked return policy

1-Year Warranty

Comprehensive product warranty for peace of mind

Best Price Guarantee

Found it cheaper? We’ll match the price

Building a high-capacity LiFePO4 battery pack for solar or ESS? The 7S–16S 200A Smart BMS delivers intelligent protection, real-time monitoring, and massive current handling in one powerful board.

Designed for 24V to 48V LiFePO4 battery systems, this BMS supports 7S to 16S configurations with a robust 200A continuous charge and discharge capacity. Whether you're assembling a solar energy storage system, inverter backup, EV battery pack, or off-grid power solution, this board handles high-current demands without breaking a sweat. The built-in HD TFT display shows real-time voltage, current, SOC, and temperature — so you can check battery health at a glance without connecting external devices.

What sets this BMS apart is its fully adjustable smart protection system. Customize overcharge, over-discharge, and overcurrent limits, along with delay timers and capacity settings to match your exact battery specifications. Integrated NTC temperature sensors and MOS overheating protection keep things safe during extreme charging cycles. The automatic passive cell balancing function maintains uniform voltage across all cells, extending your battery pack's lifespan significantly. RS485 and CAN communication ports allow integration with external monitoring systems and inverters.

Backed by a 1-year warranty and dedicated technical support via WhatsApp, call, or email, Amicikart ensures you're never alone in your battery build journey. 🔋⚡

Maximise battery lifespan with intelligent 200A continuous charge & discharge support (7S–16S LiFePO4 compatibility)
Monitor battery health at a glance with real-time voltage, current, SOC, and temperature tracking on the built-in HD TFT display
Customise your battery protection fully with adjustable overcharge, over-discharge, overcurrent limits, and delay settings

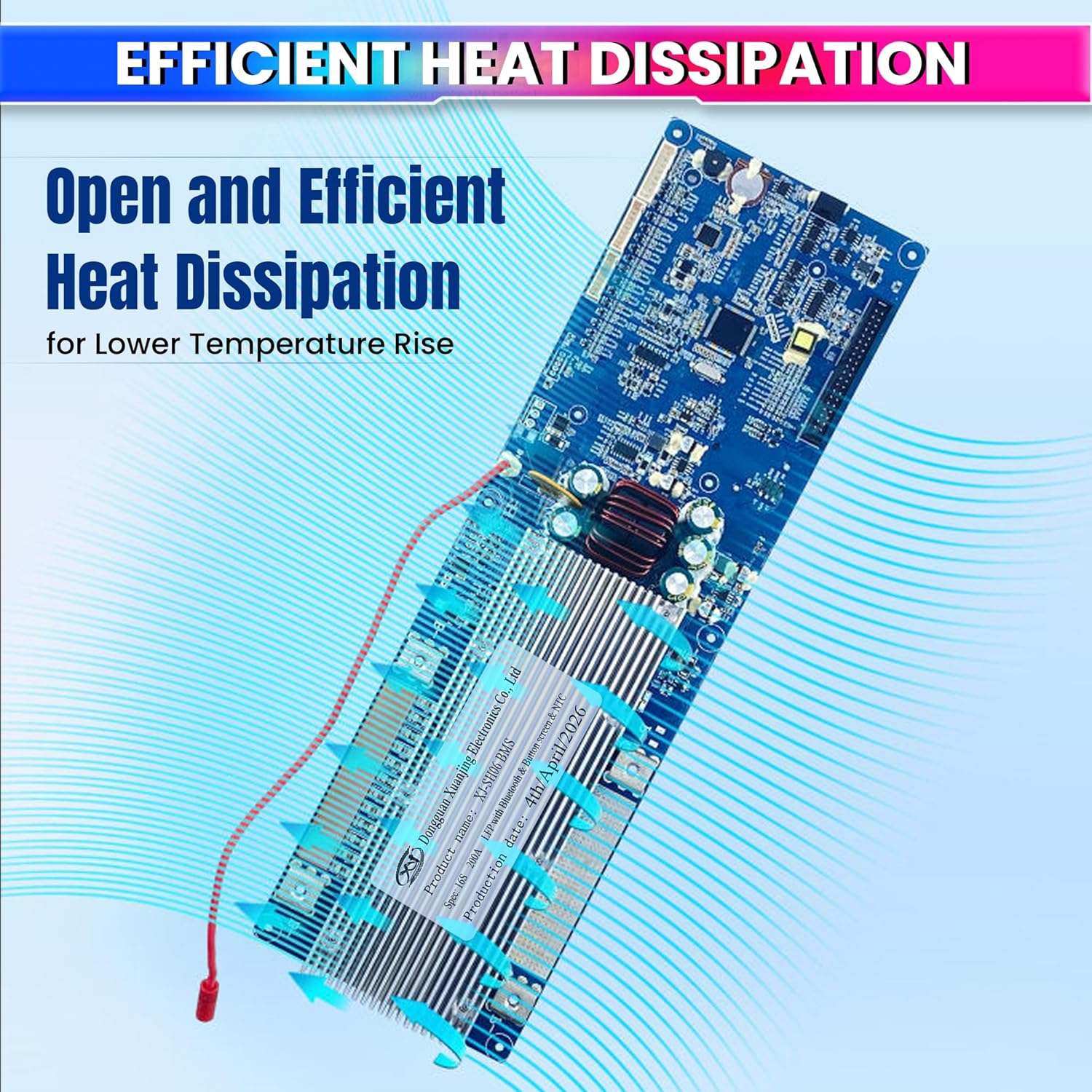

Ensure safe operation under extreme conditions with integrated NTC temperature sensors and MOS overheating protection
Maintain uniform cell voltage automatically with smart passive balancing for improved efficiency and longer battery life
Shop risk-free with a 1-year warranty, 30-day easy returns, COD Available, and free same-day dispatch across India
Get dedicated technical assistance via WhatsApp, call, or email for complete peace of mind (📞 980-970-9898 | ✉️ care@amicikart.com)

Description

Technical Specification:

Operating Current
Continuous Charge Current:- 200A
Continuous Discharge Current:- 200A

Charge Protection
Overcharge Protection Voltage:- 3.65V (Can be set)
Overcharge Protection Delay:- 1.0s (Can be set)

Discharge Protection
Over Discharge Protection Voltage:- 2.8V (Can be set)
Over Discharge Protection Delay:- 1.0s (Can be set)

Overall Overcharge Protection
Overall Overcharge Protection Voltage (16S):- 58.4V (Can be set)
Overall Overcharge Protection Delay:- 1.0s (Can be set)
Overall Overcharge Protection Release Voltage (16S):- 54.08V (Can be set)

Overall Over Discharge Protection
Overall Over Discharge Protection Voltage (16S):- 44.8V (Can be set)
Overall Over Discharge Protection Delay:- 1.0s (Can be set)
Overall Over Discharge Protection Release Voltage (16S):- 48V (Can be set)

Charging Overcurrent Protection
Charging Overcurrent Alarm Current:- 205A (Can be set)
Charging Overcurrent Protection Current:- 210A (Can be set)
Charge Overcurrent Delay:- 1.0s (Can be set)

Discharge Overcurrent Protection
Discharge Overcurrent 1 Protection:- 210A (Can be set)
Discharge Overcurrent 1 Delay:- 1s (Can be set)
Discharge Overcurrent 2 Protection:- 250A (Can be set)

Short Circuit Protection
Short Circuit Protection Delay:- ＜300Us
Short Circuit Current:- 360A
Short Circuit Protection Released:- After the load is removed, it will be automatically released

Equalization Function
Balanced Turn-on Voltage:- 3.4V (Can be set)
Open Pressure Difference:- 30mV (Can be set)

MOS High Temperature Protection
MOS Over Temperature Alarm Temperature:- 90℃ (Can be set)
MOS Over Temperature Protection Temperature:- 115℃ (Can be set)
MOS Protection Release Temperature:- 85℃ (Can be set)

Temperature Protection
Charge High Temp Protection:- 55℃ (Can be set)
Charge High Temp Release:- 50℃ (Can be set)
Charge Low Temp Protection:- -10℃ (Can be set)
Charge Low Temp Release:- -8℃ (Can be set)
Discharge High Temp Protection:- 60℃ (Can be set)
Discharge High Temp Release:- 55℃ (Can be set)
Discharge Low Temp Protection:- -20℃ (Can be set)
Discharge Low Temp Release:- -15℃ (Can be set)

Capacity Default Settings
Design Capacity Settings:- 200Ah (Can be set)
Full Capacity Setting:- 200Ah (Can be set)

Power Consumption
Operating Mode:- <40mA
Sleep Mode:- <200uA

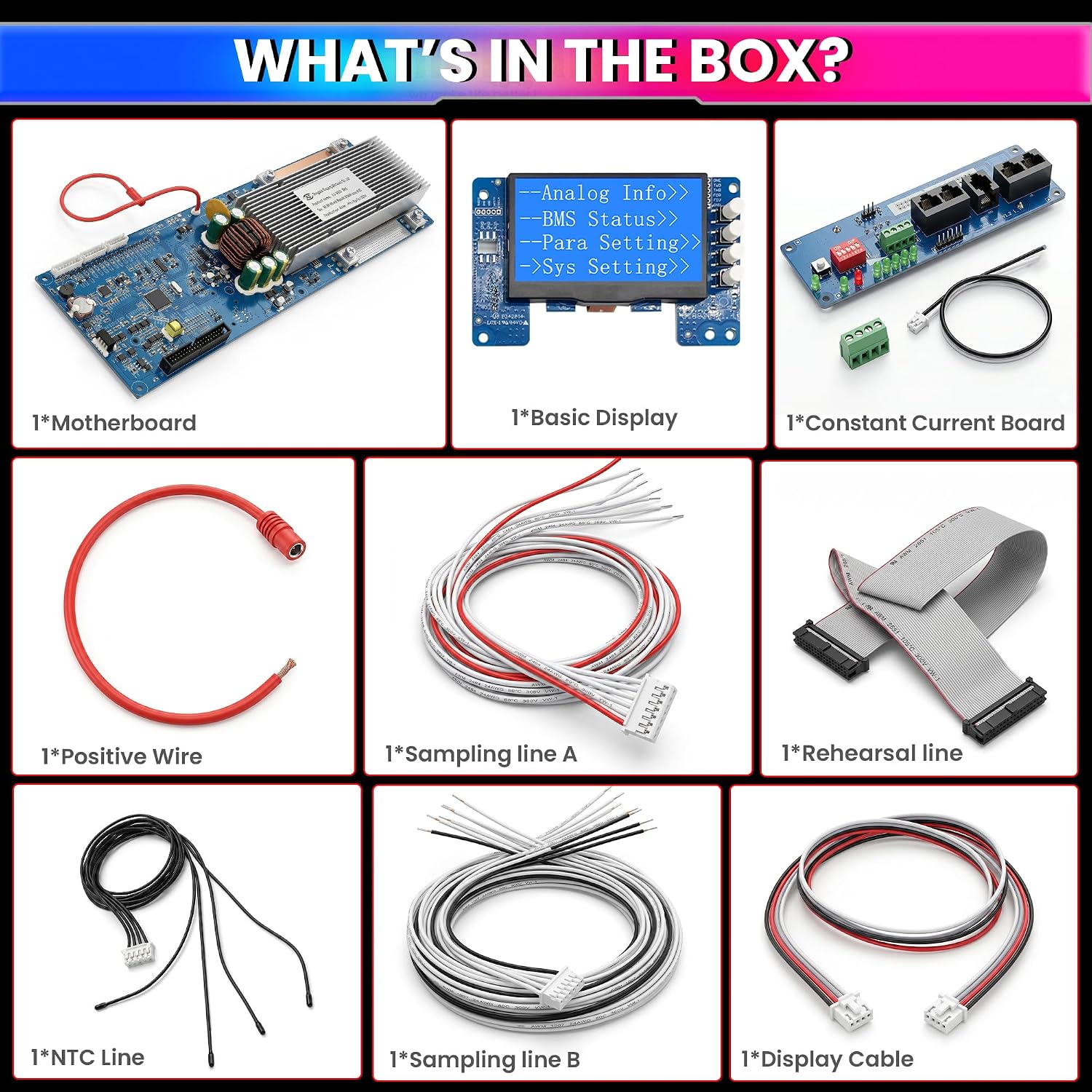

In the Box
Motherboard:- 1pcs
Constant Current Board:- 1pcs
Display:- 1pcs
Communication Adapter Board:- 1pcs
Positive Wire:- Female banana head red soft silicone wire 260MM 1pcs
Sampling Line A:- 1pcs
Sampling Line B:- 1pcs
NTC Line:- 1pcs
Rehearsal Line:- 1pcs
Weak Current Switch Line:- 1pcs
Display Cable:- 1pcs
Screw M5*10:- 4pcs
