7S–16S 200A Smart BMS for LiFePO4 Battery Pack with HD TFT Display & Bluetooth App

Product label: Sold out

7S–16S 200A Smart BMS for LiFePO4 Battery Pack with HD TFT Display & Bluetooth App

Name: 7S–16S 200A Smart BMS for LiFePO4 Battery Pack with HD TFT Display & Bluetooth App
Brand: amiciKart
SKU: 1xBMS-7-16S-200A-TS
Price: 27799.00 INR
Availability: OutOfStock

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Rs. 27,799.00 -31% Rs. 40,000.00 (MRP Inclusive of All Taxes)

Rs. 27,799.00

Superfast Same-Day Shipping

30-Day Easy Returns

No questions asked return policy

1-Year Warranty

Comprehensive product warranty for peace of mind

Best Price Guarantee

Found it cheaper? We’ll match the price

Why You Need This Smart BMS?: -Protects your battery investment with real-time monitoring, advanced safety, and full control, ensuring longer life, better efficiency, and safe operation of your energy system.

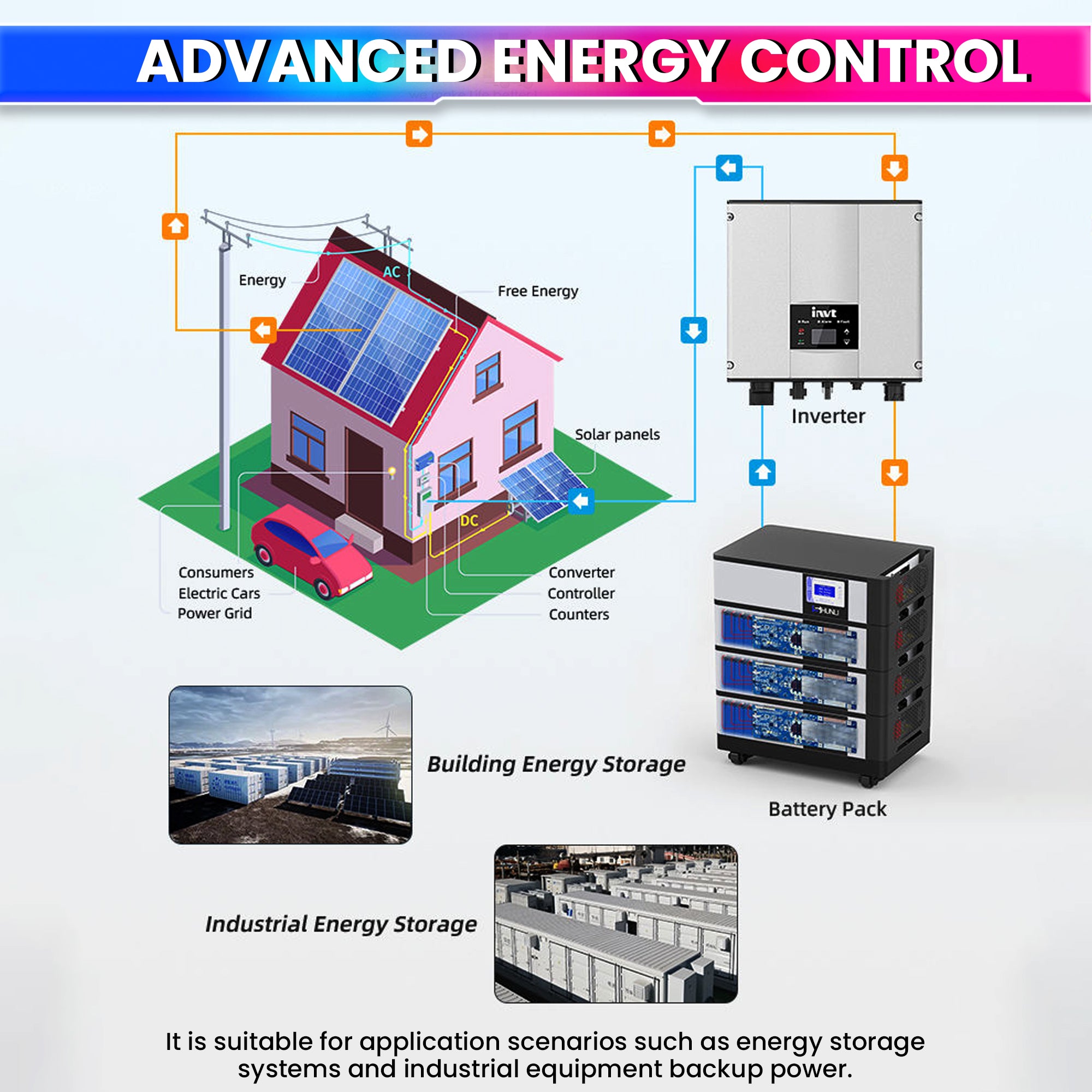

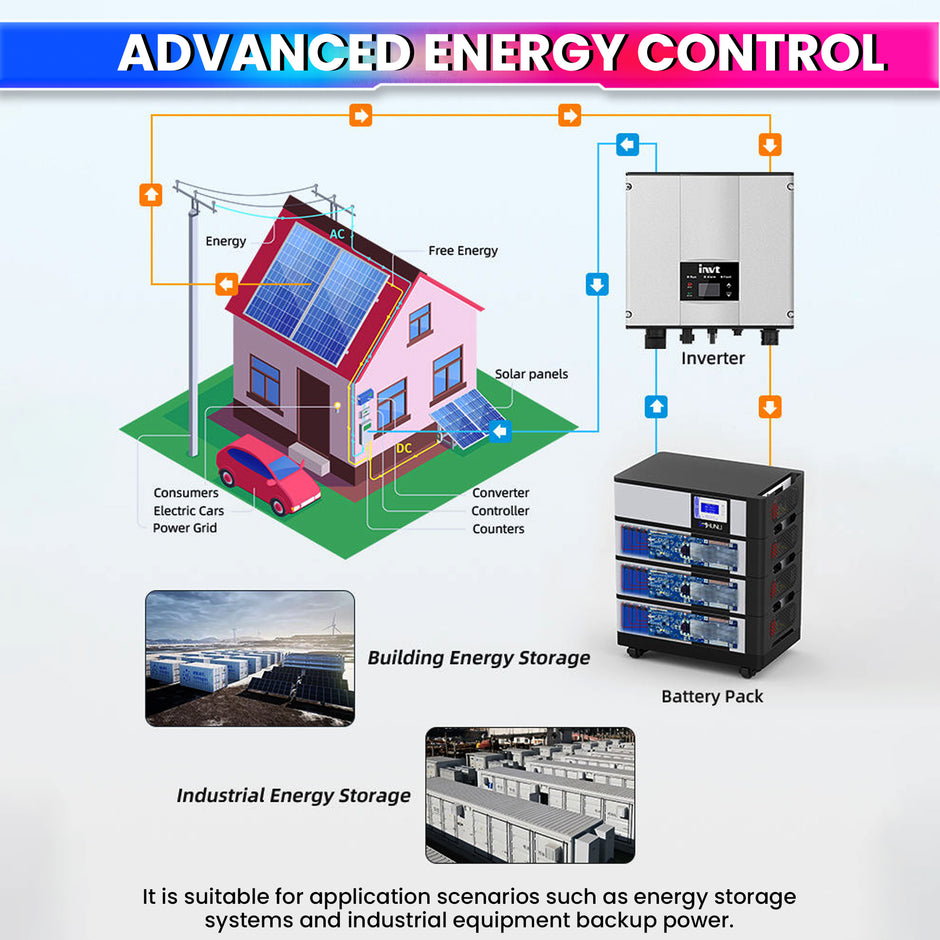

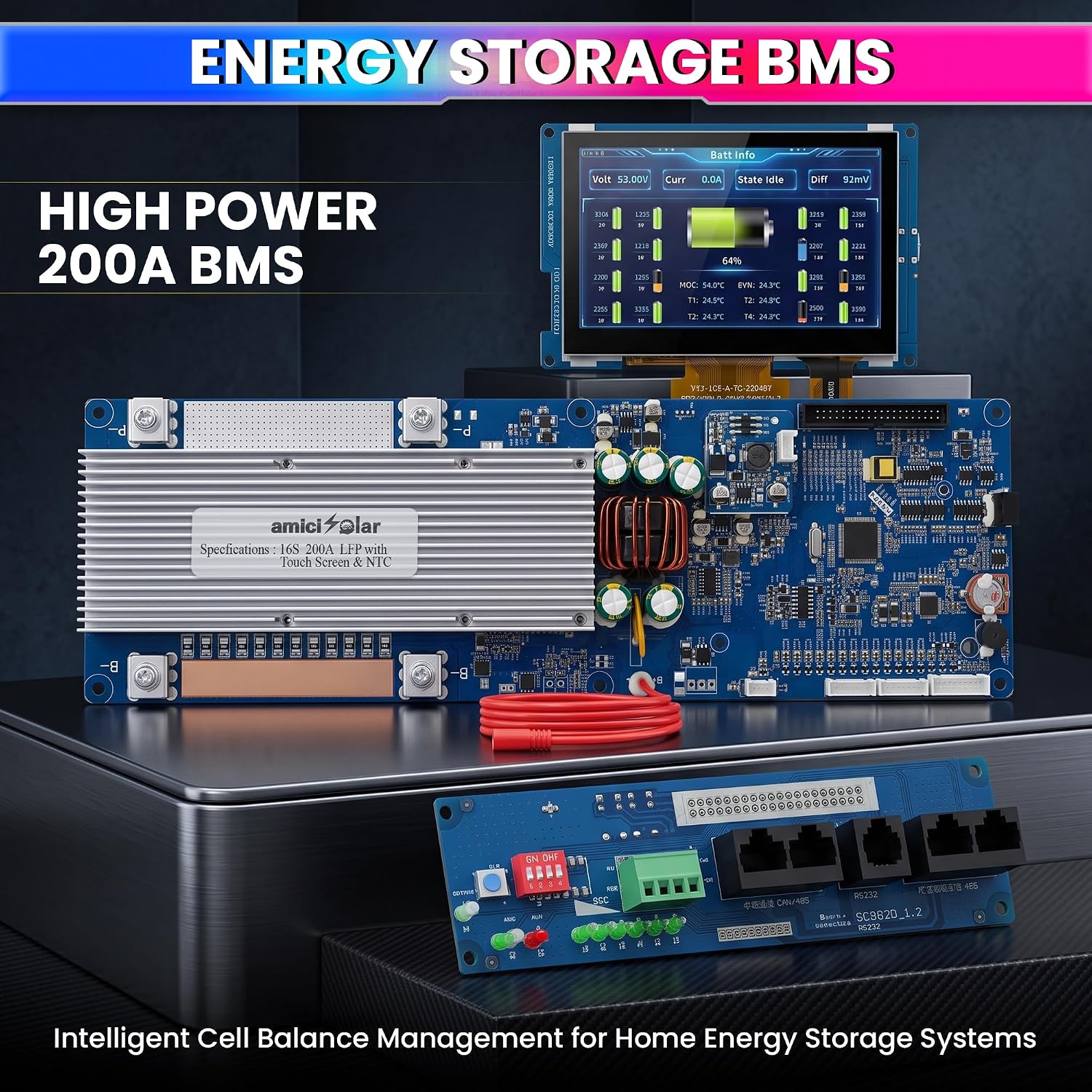

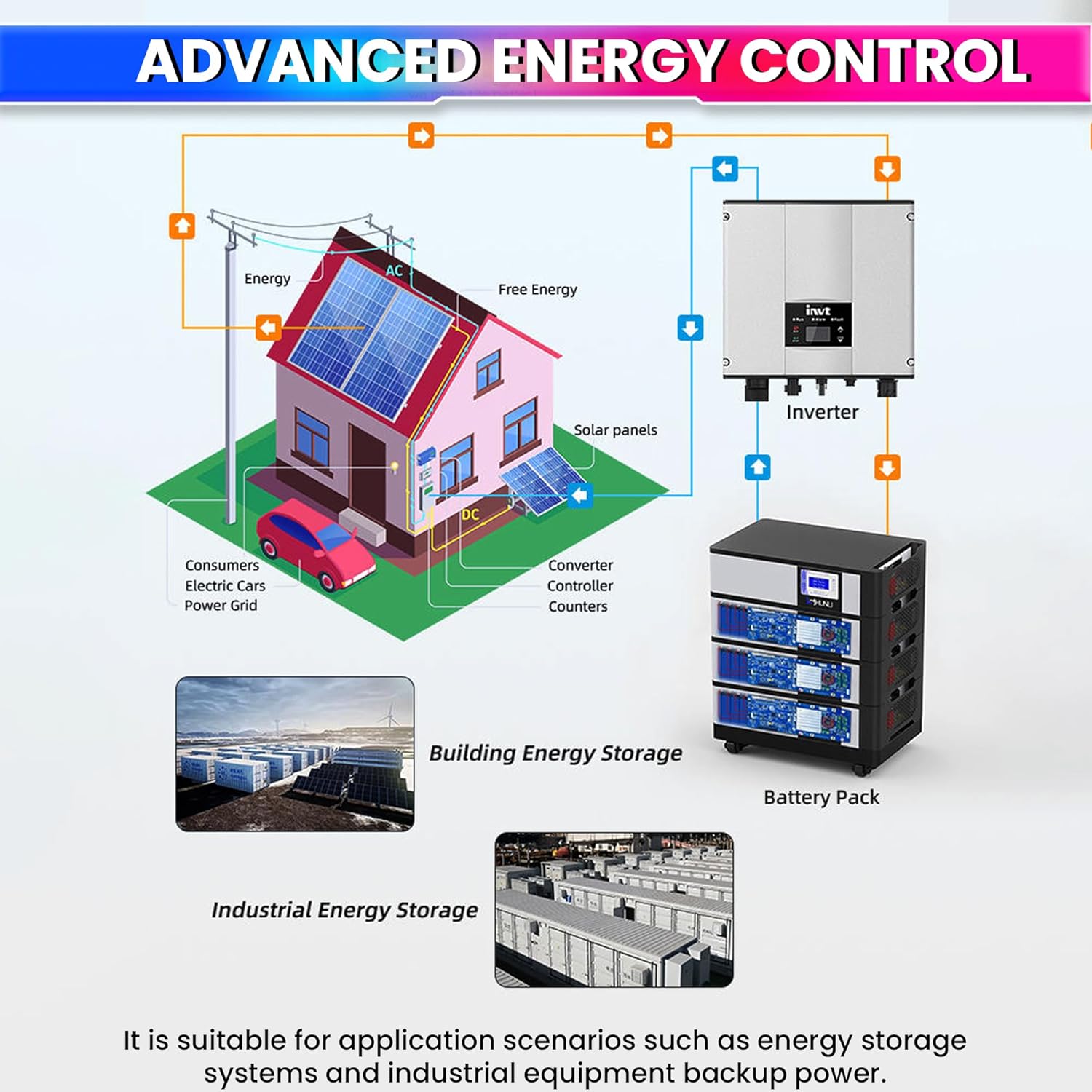

High Power Smart BMS for Solar & Energy Storage (200A): -Designed for 7S–16S LiFePO4 battery packs, supporting 200A continuous charge & discharge, making it ideal for solar systems, ESS setups, EVs, and inverter batteries.

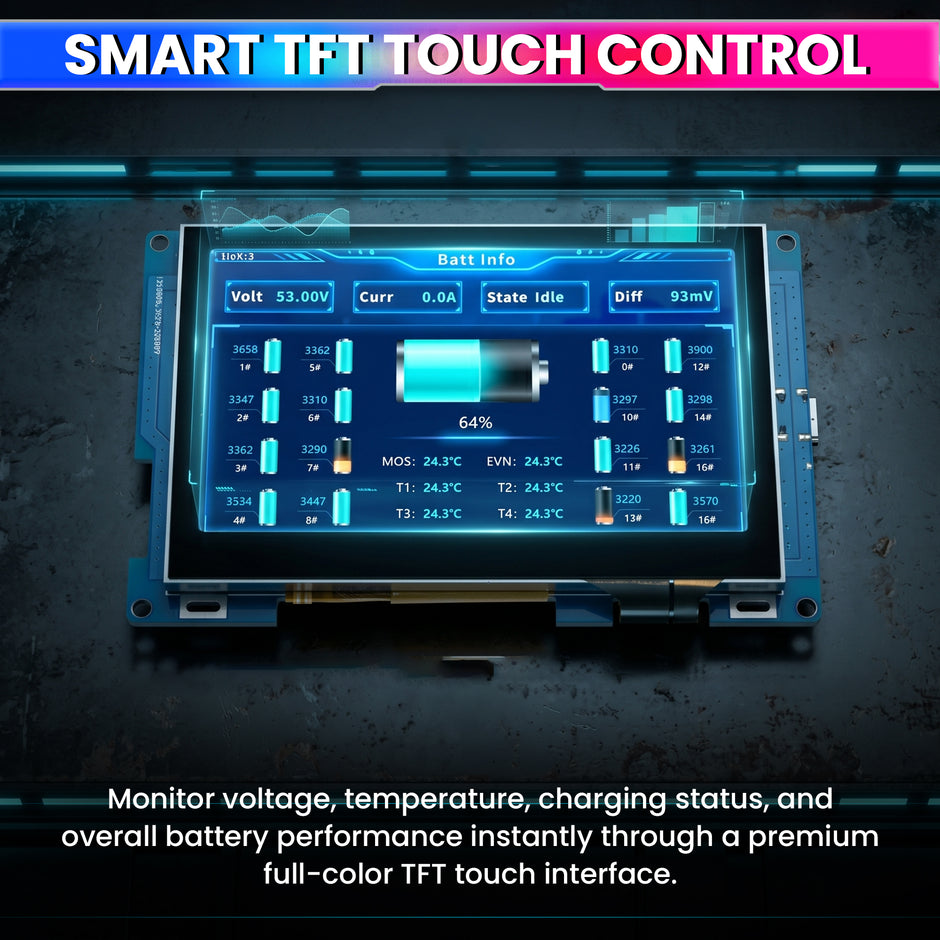

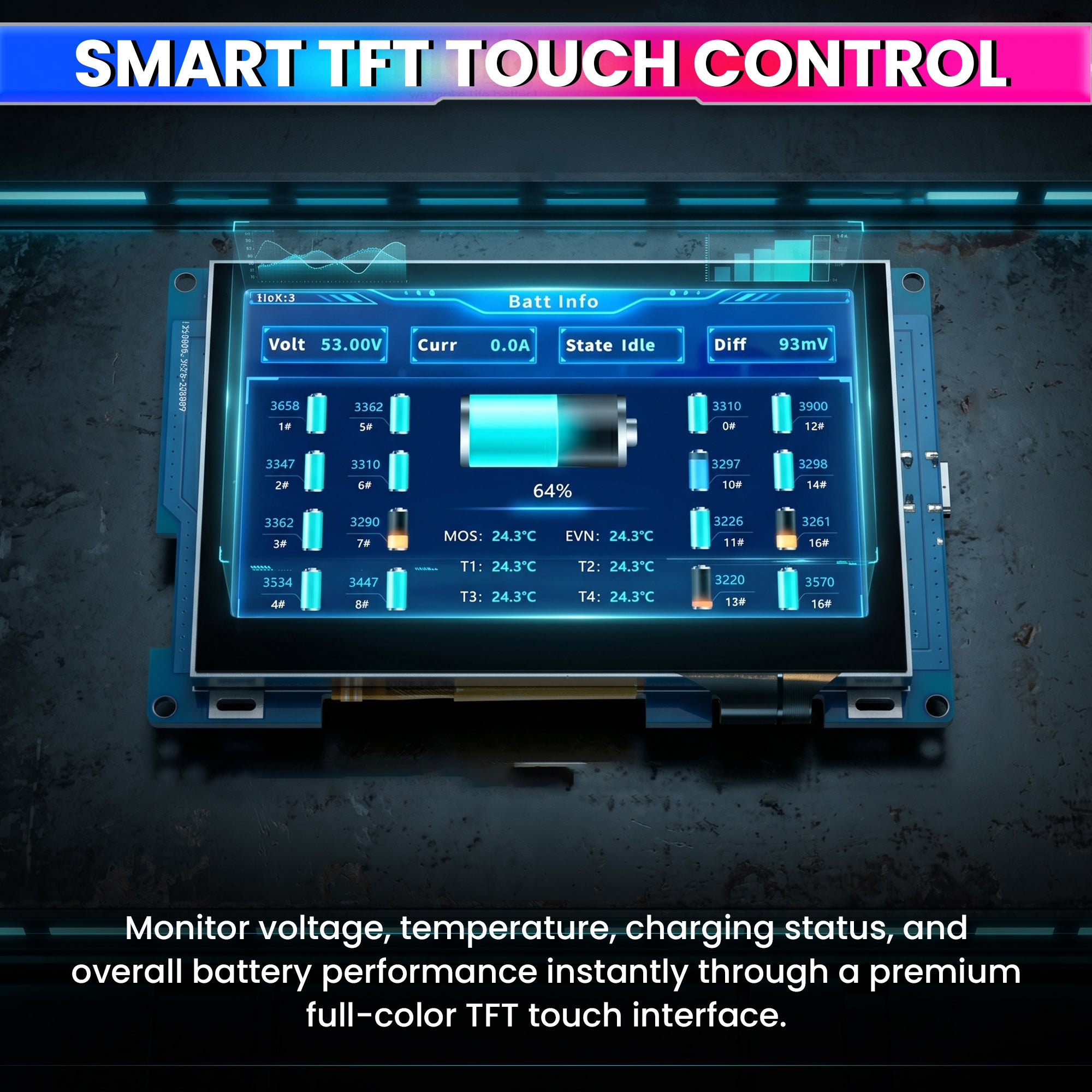

HD TFT Display + Bluetooth App Monitoring: -Comes with a high-definition TFT display for instant data visibility and Bluetooth (XJBMS App) for real-time monitoring of voltage, current, SOC, temperature, and system status.
Fully Adjustable Smart Protection System: -Customize overcharge, over-discharge, overcurrent, delay timings, and capacity settings as per your battery setup for precise and safe battery management.
Advanced Temperature & MOS Protection: -Equipped with NTC temperature sensors and MOS overheating protection, ensuring safe charging/discharging with high & low temperature cut-offs.
Smart Cell Balancing for Longer Battery Life: -Automatic balancing function maintains uniform cell voltage, improving battery performance, efficiency, and lifespan.

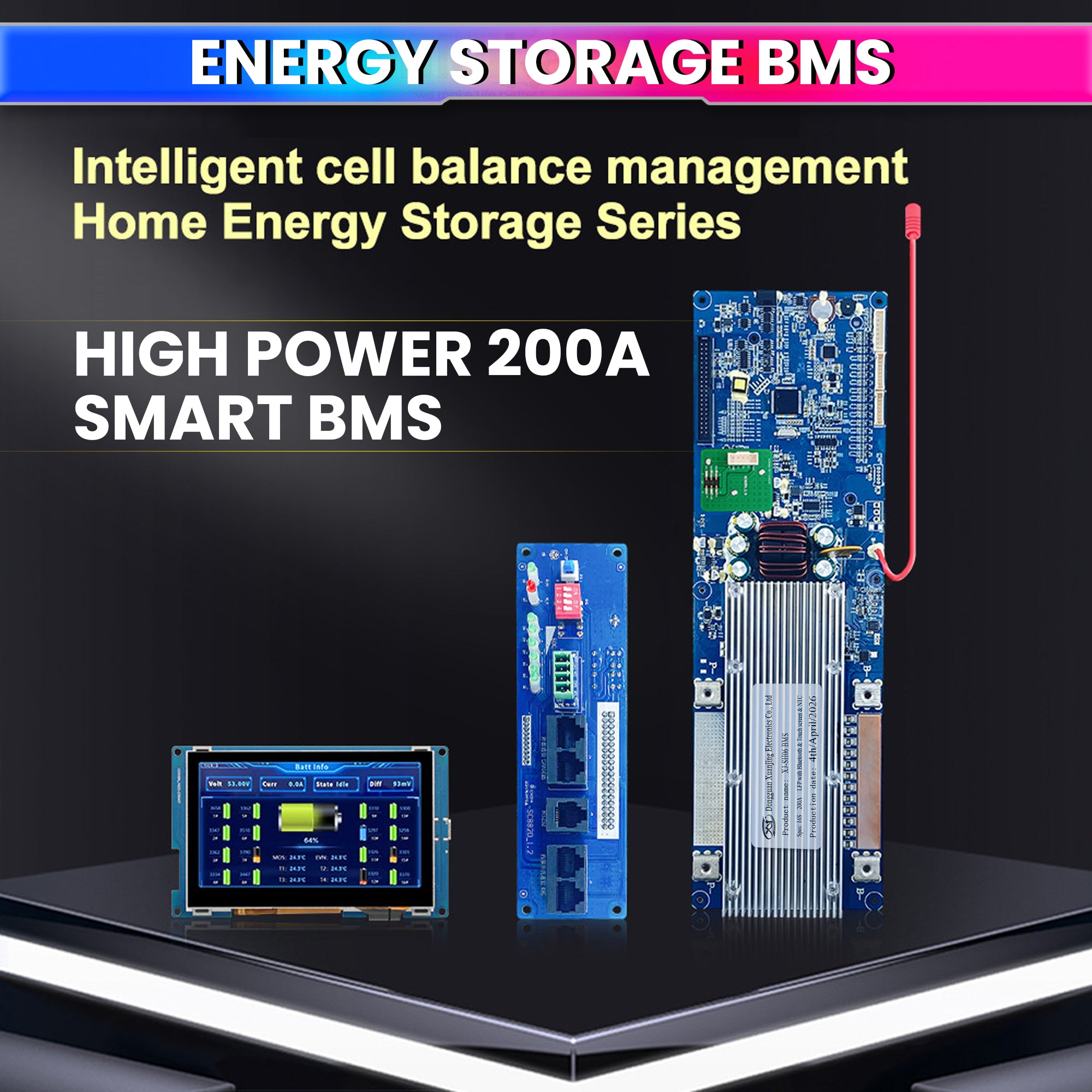

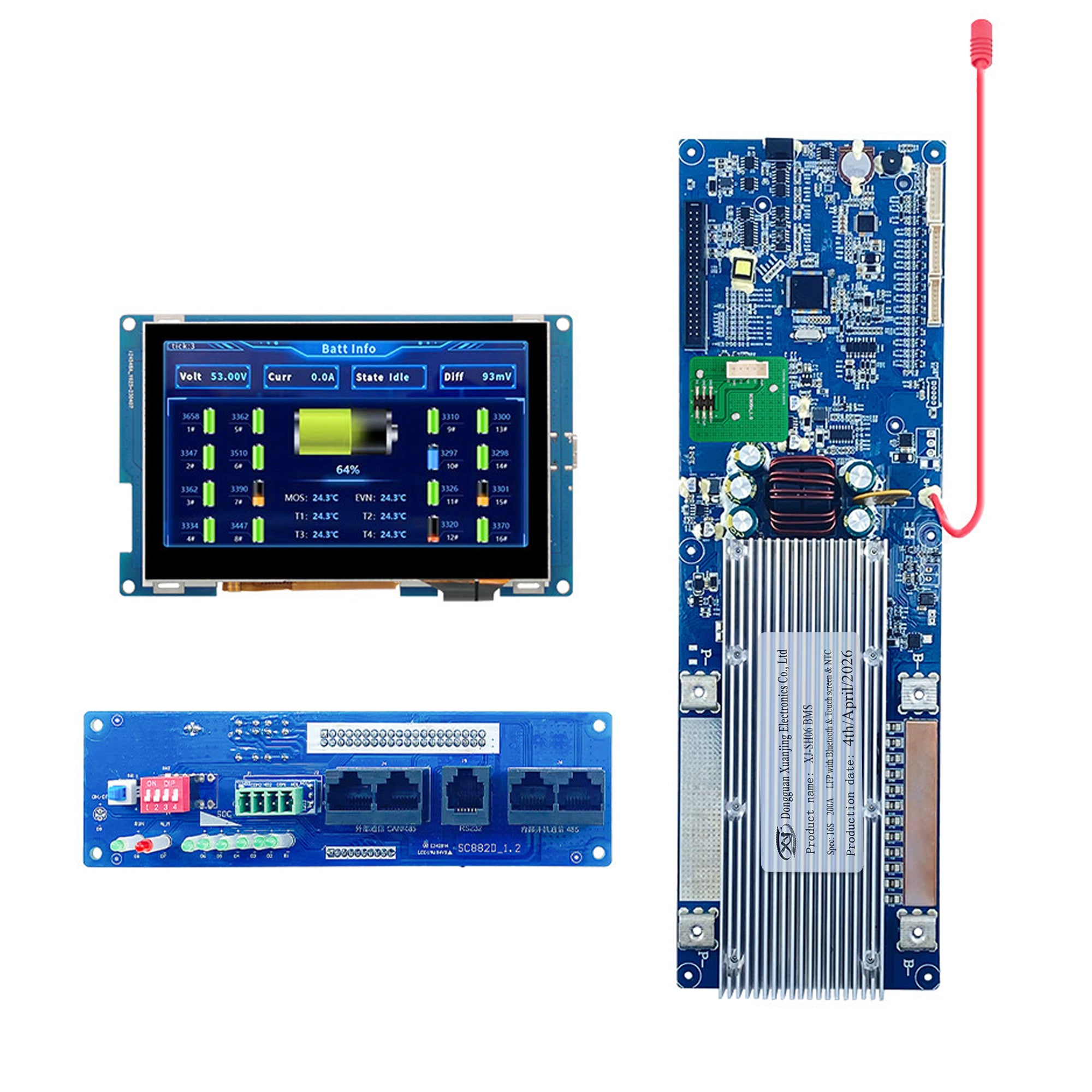

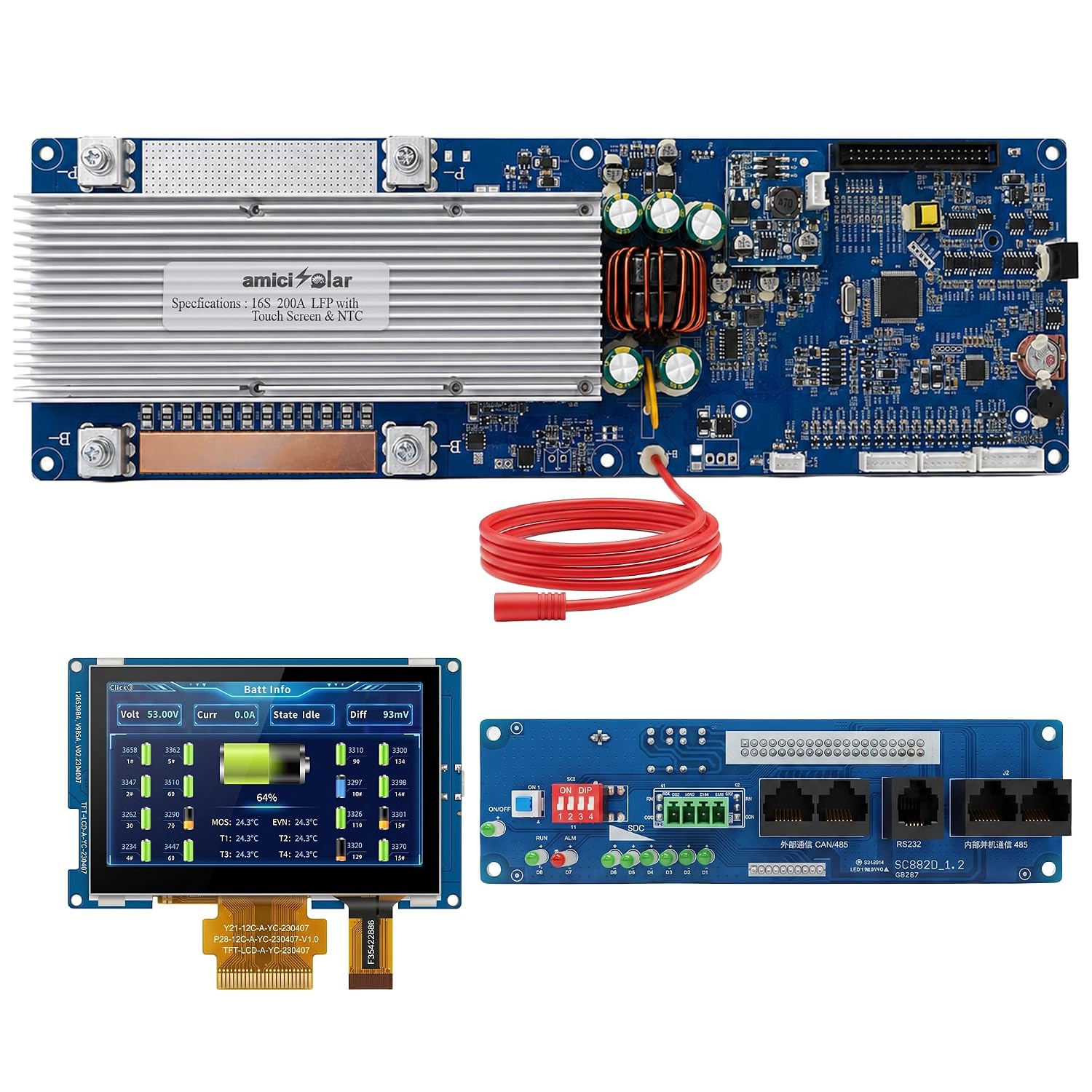

Complete Kit – Ready to Install: -Includes motherboard, TFT display, communication board, wiring harness, NTC sensor, and accessories, making installation easy for both professionals and DIY users.
1-Year Warranty & Dedicated Support:- For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.

Description

Mobile App:- XJBMS (Not available on Play Store) Scan QR Code for app download

Operating Current
Continuous Charge Current:- 200A
Continuous Discharge Current:- 200A

Charge Protection
Overcharge Protection Voltage:- 3.65V (Can be set)
Overcharge Protection Delay:- 1.0s (Can be set)

Discharge Protection
Over discharge Protection Voltage:- 2.8V (Can be set)
Over discharge Protection Delay:- 1.0s (Can be set)

Overall overcharge protection
Overall overcharge protection voltage (16S):- 58.4V (Can be set)
Overall overcharge protection delay:- 1.0s (Can be set)
Overall overcharge protection release voltage (16S):- 54.08V (Can be set)

Overall over discharge protection:-
Overall over discharge protection voltage (16S):- 44.8V (Can be set)
Overall over discharge protection delay:- 1.0s (Can be set)
Overall over discharge protection release voltage (16S):- 48V (Can be set)

Charging Overcurrent Protection
Charging overcurrent alarm current:- 205A (Can be set)
Charging overcurrent protection current:- 210A (Can be set)
Charge Overcurrent Delay:- 1.0s (Can be set)

Discharge Overcurrent 1 Protection:- 210A (Can be set)
Discharge Overcurrent 1 Delay:- 1s (Can be set)
Discharge Overcurrent 2 Protection:- 250A (Can be set)

Short Circuit Protection
Short circuit protection delay:- ＜300Us
Short Circuit Current:- 360A
Short circuit protection released:- After the load is removed, it will be automatically released

Equalization function:-
Balanced turn-on voltage:- 3.4V (Can be set)
Open pressure difference:- 30mV (Can be set)

MOS high temperature protection
MOS over temperature alarm temperature:- 90℃ (Can be set)
MOS over temperature protection temperature:- 115℃ (Can be set)
MOS protection release temperature:- 85℃ (Can be set)

Temperature Protection
Charge High Temp Protection:- 55℃ (Can be set)
Charge High Temp Release:- 50℃ (Can be set)
Charge Low Temp Protection:- -10℃ (Can be set)
Charge Low Temp Release:- -8℃ (Can be set)
Discharge High Temp Protection:- 60℃ (Can be set)
Discharge High Temp Release:- 55℃ (Can be set)
Discharge Low Temp Protection:- -20℃ (Can be set)
Discharge Low Temp Release:- -15℃ (Can be set)

Capacity default settings
Design capacity settings:- 200Ah (Can be set)
Full capacity setting:- 200Ah (Can be set)

Power Consumption
Operating Mode:- <40mA
Sleep Mode:- <200uA

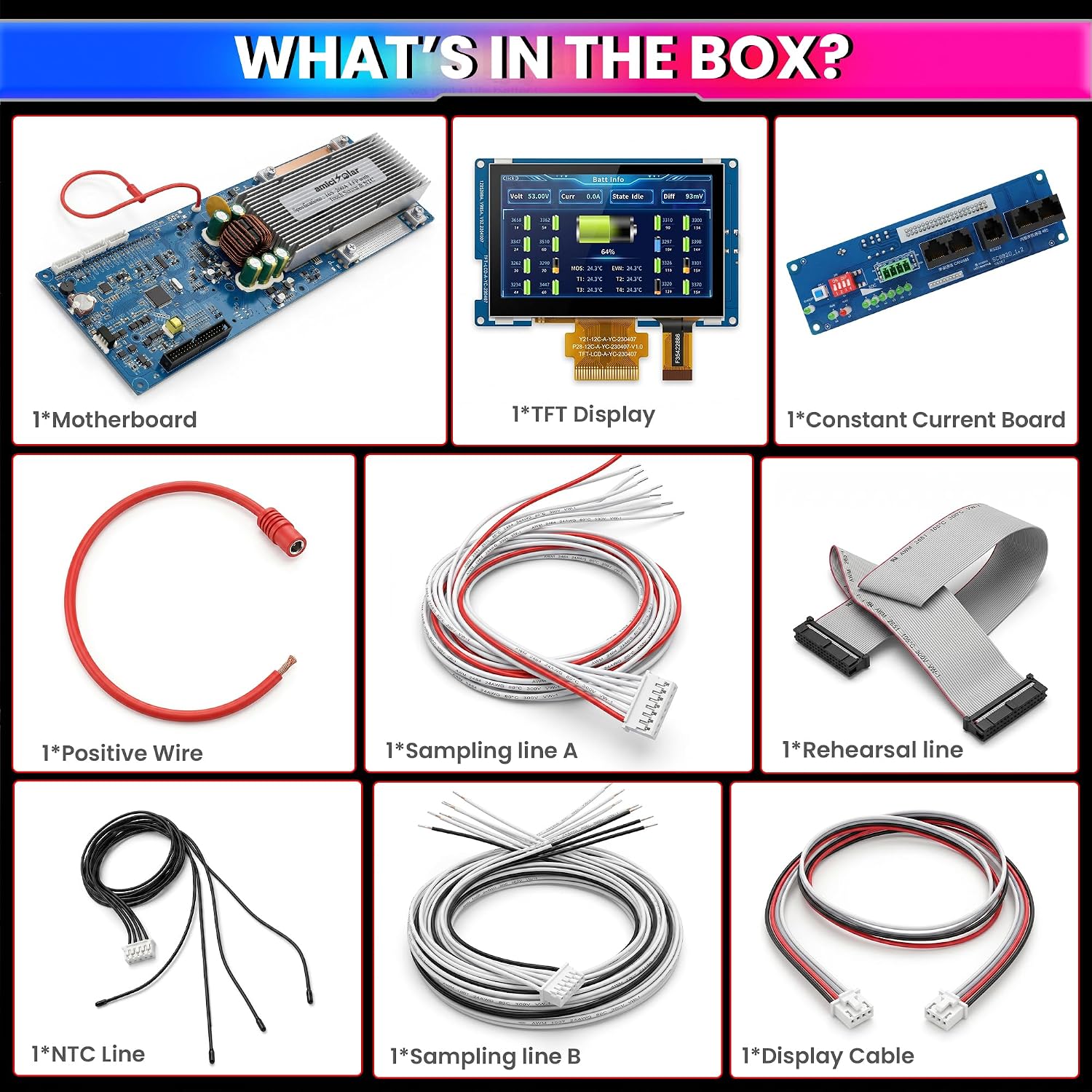

In the Box list

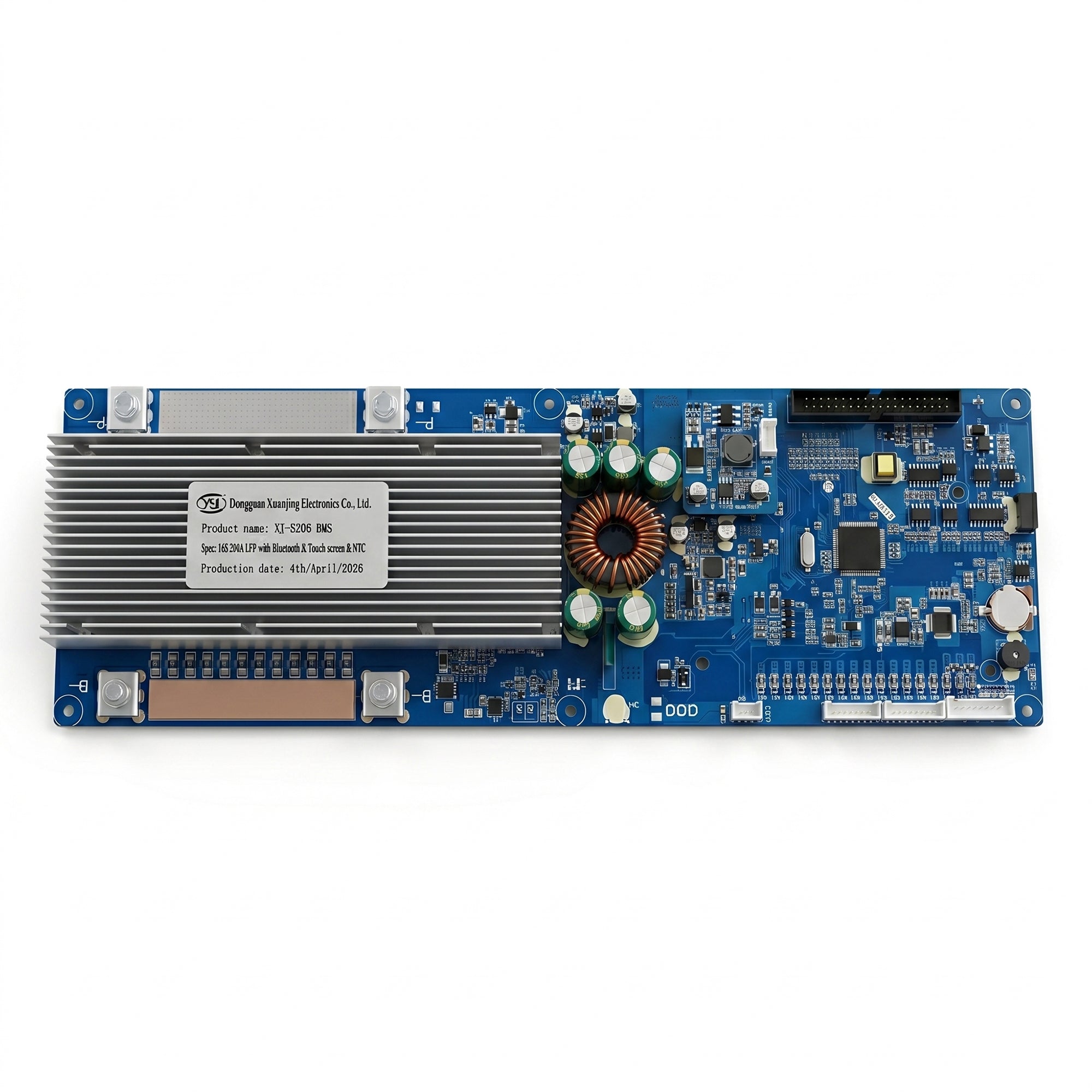

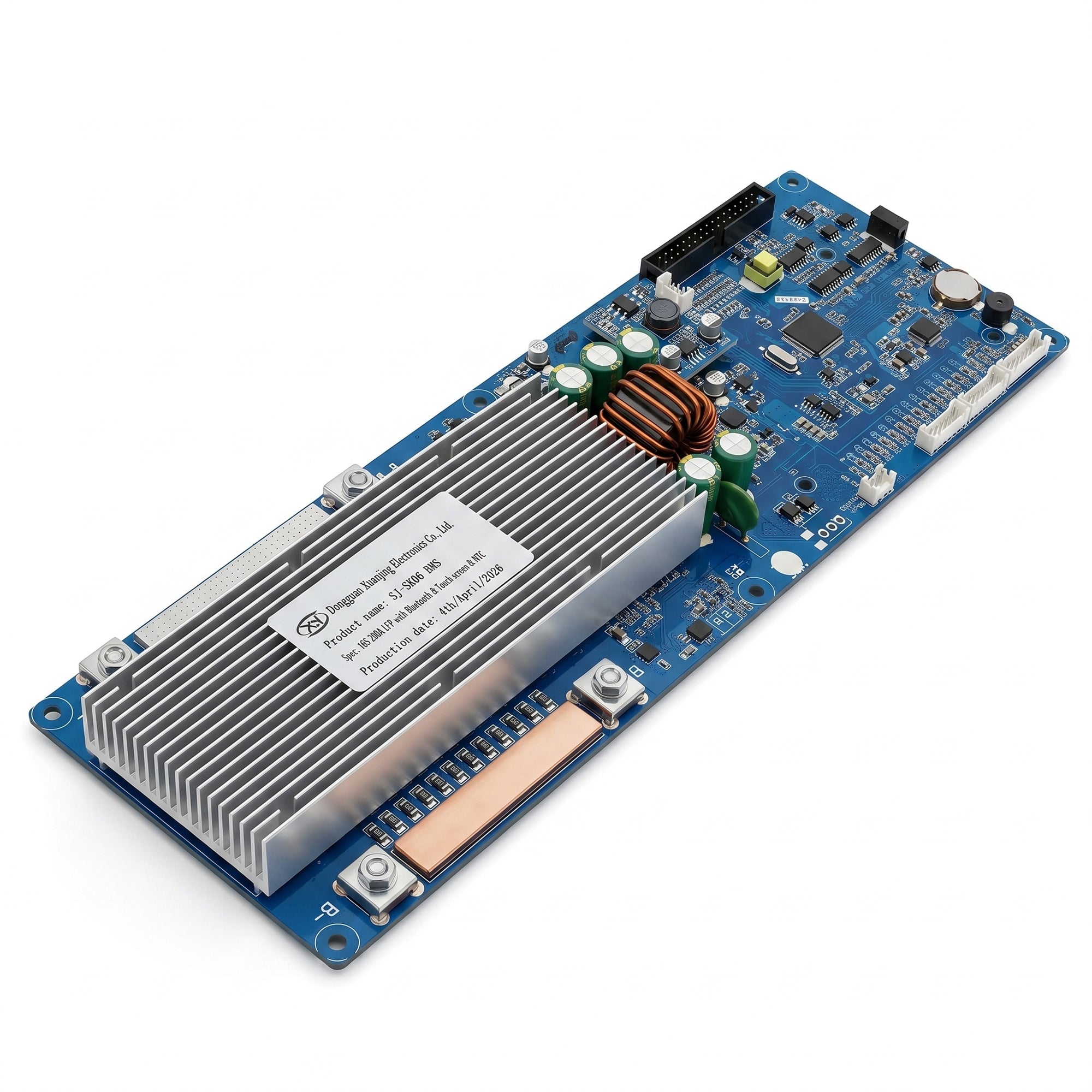

Motherboard:- 1pcs
Constant current board:- 1pcs
Display:- 1pcs
Communication adapter board:- 1pcs
Positive wire:- Female banana head red soft silicone wire 260MM 1pcs
Sampling line A:- 1pcs
Sampling line B:- 1pcs
NTC line:- 1pcs
Rehearsal line:- 1pcs
Weak current switch line:- 1pcs
Display cable:- 1pcs
Screw M5*10:- 4pcs
