Know before you buy
-
LiFePO4, 6S to 24S
For 24V to 72V lithium iron phosphate packs.
-
60A continuous discharge
Keep your load within 60A.
-

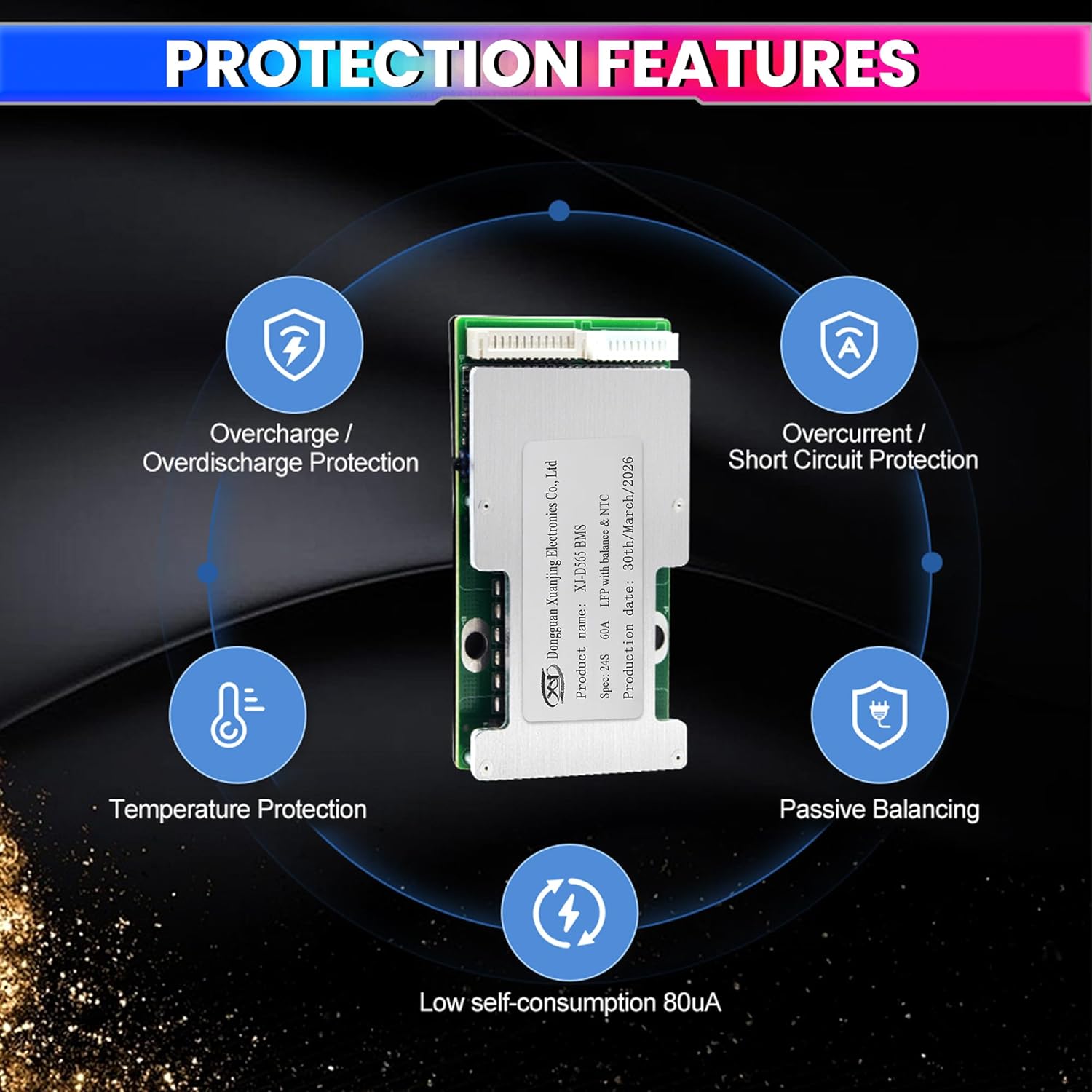

Six-way protection
Overcharge, deep discharge, overcurrent, short circuit, over-temperature and imbalance.
-
80µA standby
Won't silently drain your pack between uses.
Features that make it useful
-
100V MOSFETs
For stable high-power operation.
-
60mA auto balancing
Keeps every cell at a uniform voltage.
-
550µS short-circuit cut-off
Reacts before damage can spread.
-
Temperature protection
Cuts charge and discharge in unsafe temperatures.
-
1-year warranty
Support at 980-970-9898 or care@amicikart.com.

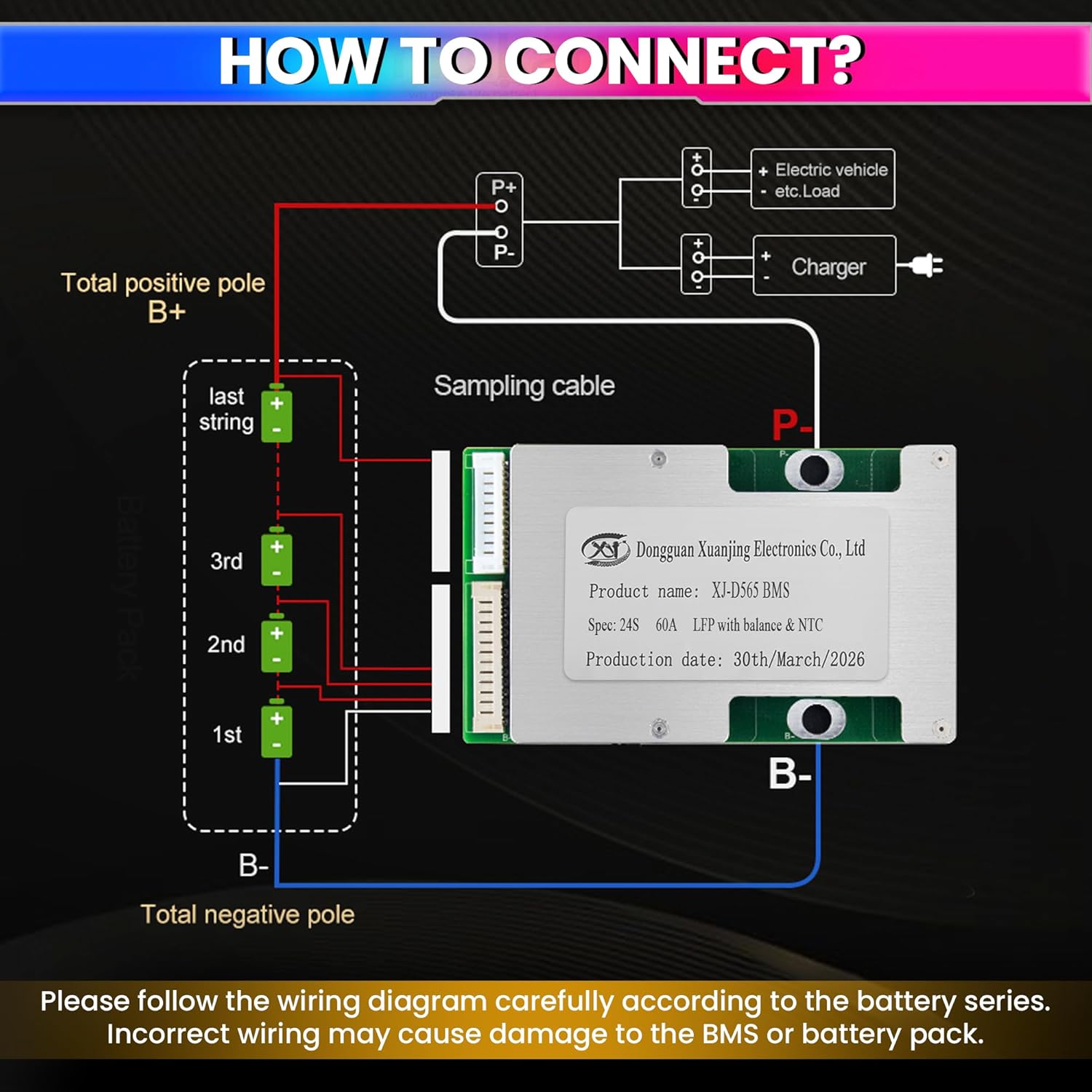

How to use
-
Confirm your cell count
Check that your LiFePO4 pack is between 6S and 24S.
-
Connect the balance leads in order
Wire each balance lead to its cell in the order marked on the board, and check each with a multimeter before plugging in.
-
Connect the main leads
Connect the battery and load/charger leads as marked. Keep continuous discharge within 60A.
-
Test before use
Check the pack output before connecting your vehicle or system.

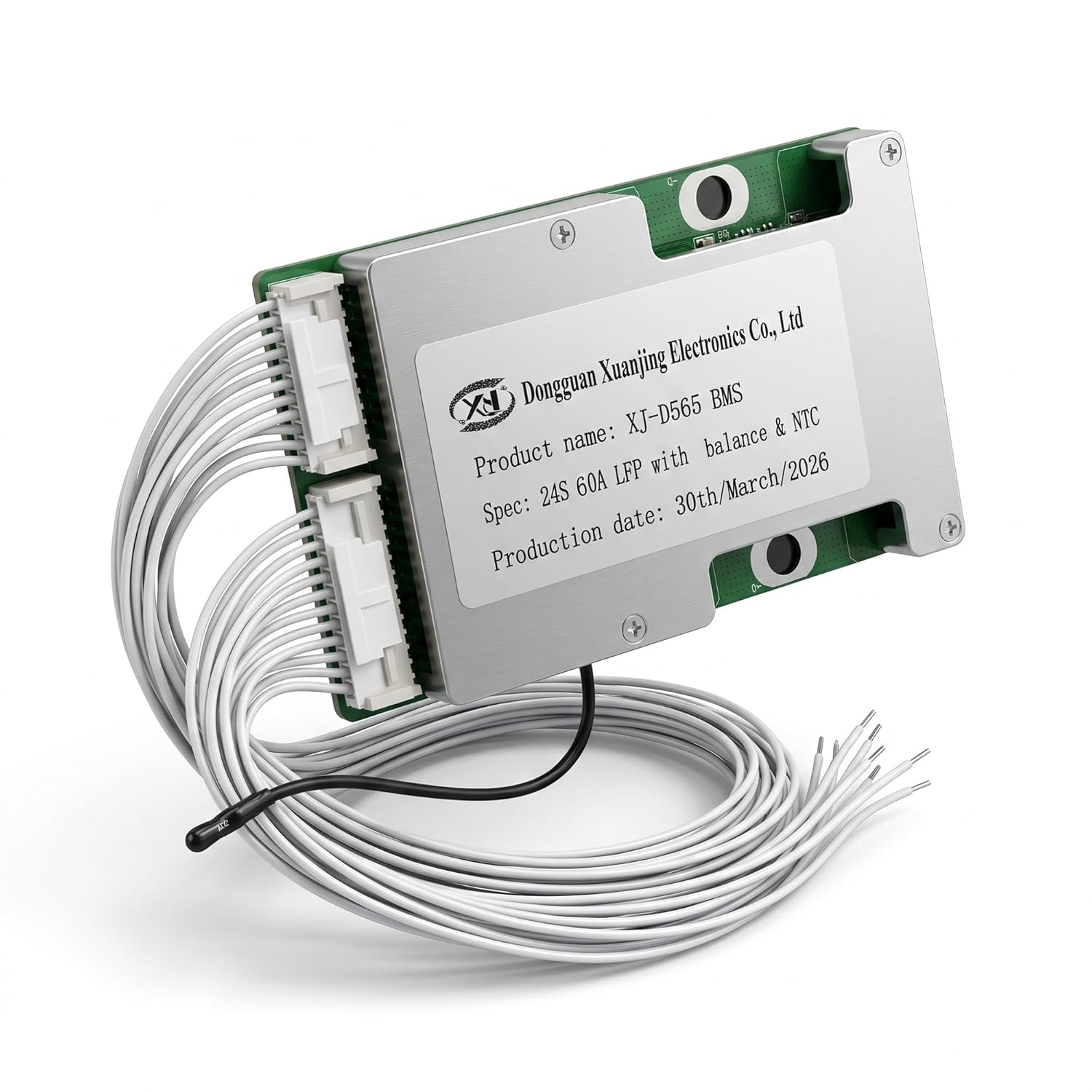

6S–24S LiFePO4 BMS 60A, 24V–72V Packs
amiciKart · LiFePO4 6S to 24S (24V–72V) · 60A continuous discharge · 100V MOSFETs · 60mA balancing · 550µS short-circuit cut-off
A battery management system (BMS) for LiFePO4 packs from 6S to 24S (24V to 72V). It uses 100V MOSFETs rated for 60A continuous discharge and protects against overcharge, deep discharge, overcurrent, short circuit, over-temperature and ce...
Sale price
Rs. 3,499.00
-42%
Regular price
Rs. 6,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 3,499.00
Unit price
Increments of 1
Minimum of 1
Maximum of
6S–24S LiFePO4 BMS 60A Battery Protection Board for 24V–72V Battery Packs
Sale price
Rs. 3,499.00
Regular price
Rs. 6,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 3,499.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xBMS-24S-60A |
| Type | LiFePO4 battery management system |
| Cell count | 6S to 24S |
| Pack voltage | 24V to 72V |
| Continuous discharge | 60A |
| MOSFETs | 100V |
| Balancing | 60mA automatic |
| Short-circuit response | 550µS |
| Standby current | 80µA |
| Protection | Overcharge, deep discharge, overcurrent, short circuit, over-temperature |
| Warranty | 1 year |
Frequently asked questions
Which packs does it fit?
LiFePO4 packs from 6S to 24S, which covers 24V, 48V and 72V builds.
How much current can it handle?
60A continuous discharge.
Does it balance the cells?
Yes, with 60mA automatic balancing.
Will it drain my battery when idle?
Standby current is just 80µA.
Full Product Description
6S–24S LiFePO4 BMS 60A, 24V–72V Packs
A battery management system (BMS) for LiFePO4 packs from 6S to 24S (24V to 72V). It uses 100V MOSFETs rated for 60A continuous discharge and protects against overcharge, deep discharge, overcurrent, short circuit, over-temperature and cell imbalance. Built-in 60mA automatic balancing keeps cells even, short-circuit protection reacts in 550µS, and standby draw is only 80µA. For e-bikes, EVs, golf carts, solar storage and DIY packs. 1-year warranty.
- 100V MOSFETs: For stable high-power operation.
- 60mA auto balancing: Keeps every cell at a uniform voltage.
- 550µS short-circuit cut-off: Reacts before damage can spread.
- Temperature protection: Cuts charge and discharge in unsafe temperatures.
- 1-year warranty: Support at 980-970-9898 or care@amicikart.com.
Important: Wrong wiring order can damage the BMS and the cells. Connect the balance leads in the order marked, and check each wire first.
