What is the maximum output power and which USB-C PD voltage profiles does this module support?

The module delivers up to 65W maximum output power. It supports USB-PD 3.1 PPS voltage profiles ranging from 3.3V to 20V with automatic negotiation, including fixed PDO profiles at 5V, 9V, 12V, 15V, and 20V, as well as PPS (Programmable Power Supply) profiles for fine-grained voltage control.

Can I use this board with a 12V car battery or a 24V solar panel system?

Yes — the module accepts any DC input between 8V and 30V, making it fully compatible with 12V lead-acid or lithium car batteries, 24V solar panel outputs, and standard DC adapters. Just ensure your input source can supply sufficient current to sustain the desired output wattage (e.g., at least 6A from a 12V source for full 65W output).

Does this module charge Apple iPhones and MacBooks, or is it limited to Android devices?

Yes, this module is compatible with Apple devices that support USB-C PD charging, including MacBook Air/Pro models and iPhone 15 series (USB-C). For older iPhones using Lightning, you would need a separate USB-C to Lightning cable; the module itself negotiates PD correctly. Android phones from Samsung, OnePlus, Xiaomi, and others are also fully supported via QC4.0/3.0, SCP, AFC, and PD protocols.

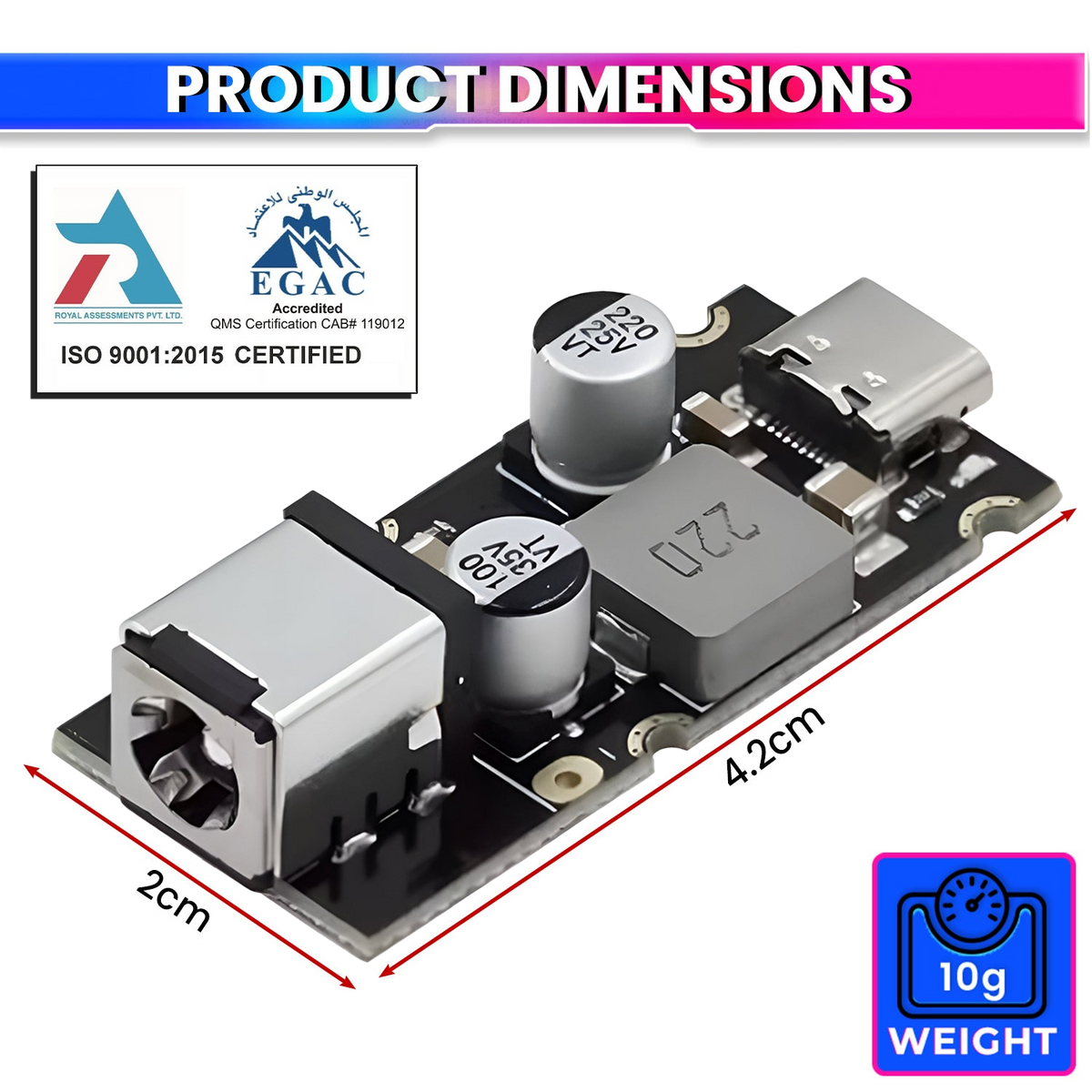

What are the physical dimensions of the board and how should it be mounted in a DIY enclosure?

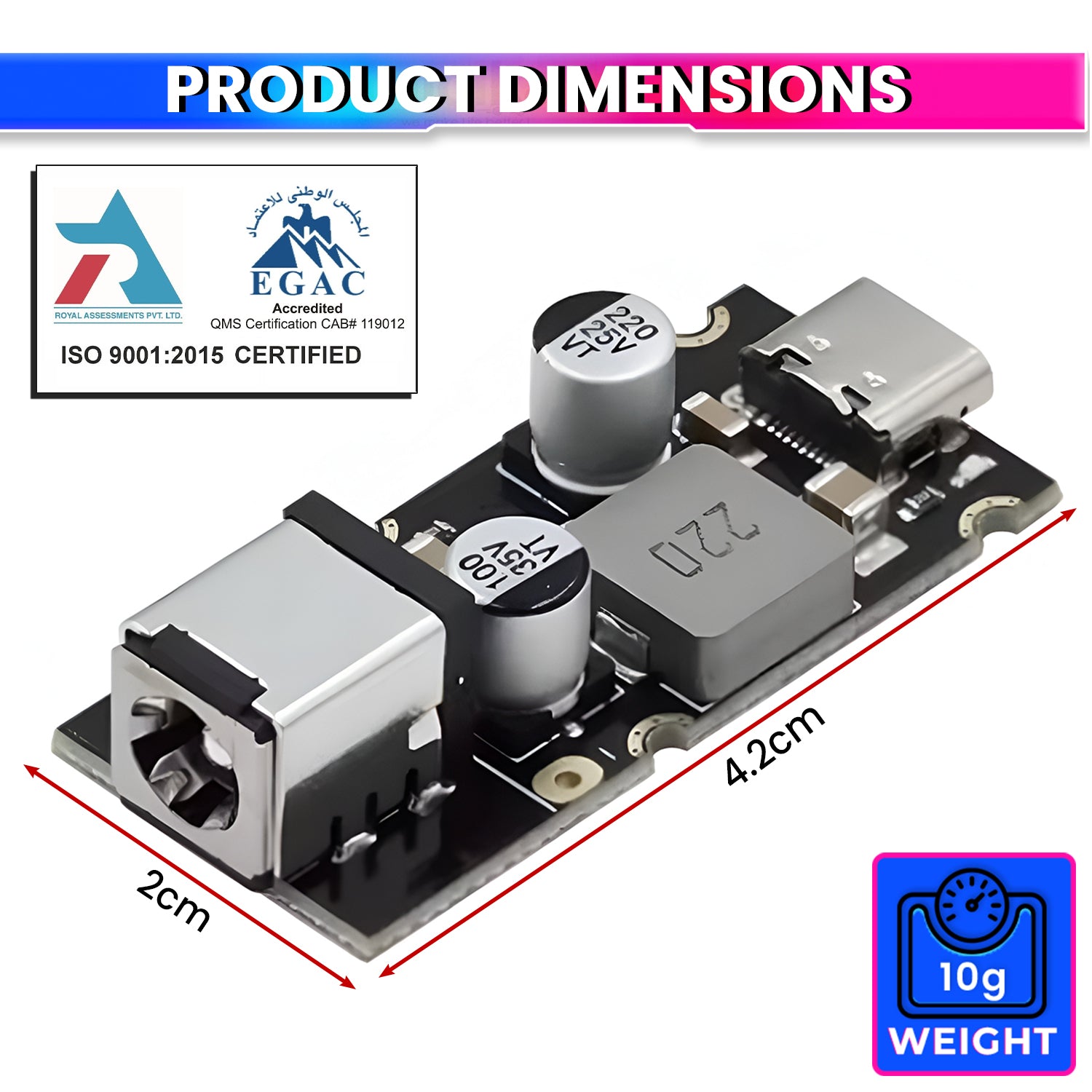

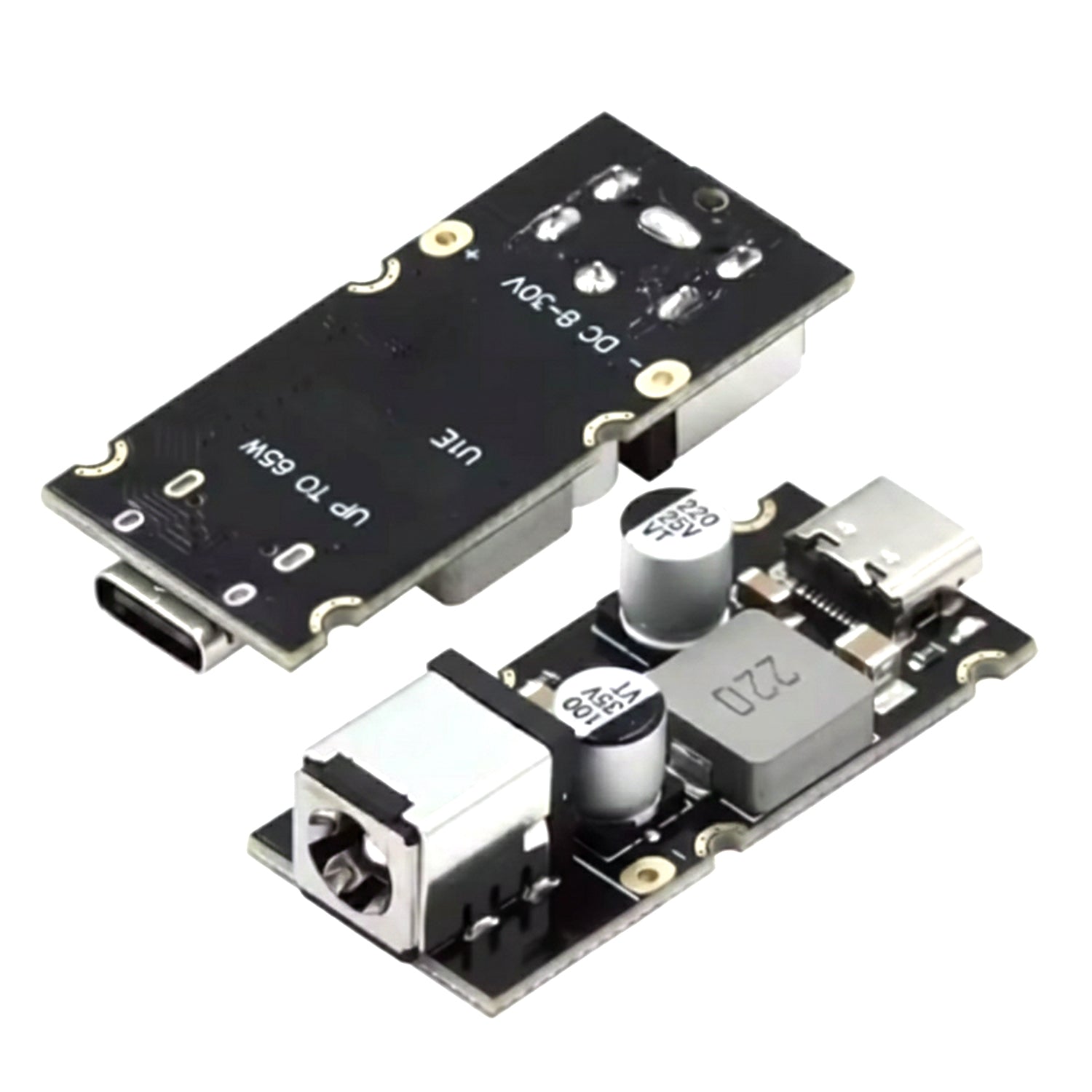

The board measures approximately 40×20×10mm — roughly the size of a large postage stamp — making it ideal for compact enclosures. It features solder pads for DC input and a USB-C output port; mounting can be done using M2 standoffs through the corner holes or with double-sided thermal tape. Ensure adequate airflow around the board for optimal thermal performance during sustained high-wattage charging.

What happens if there is a short circuit or the input voltage drops below 8V — will the board or connected device be damaged?

No — the module includes comprehensive built-in protection: over-voltage protection (OVP), under-voltage protection (UVP), over-current protection (OCP), short-circuit protection (SCP), and over-temperature protection (OTP). If the input drops below 8V or a short circuit is detected, the board automatically shuts down output to protect both itself and the connected device, resuming operation once conditions normalise.

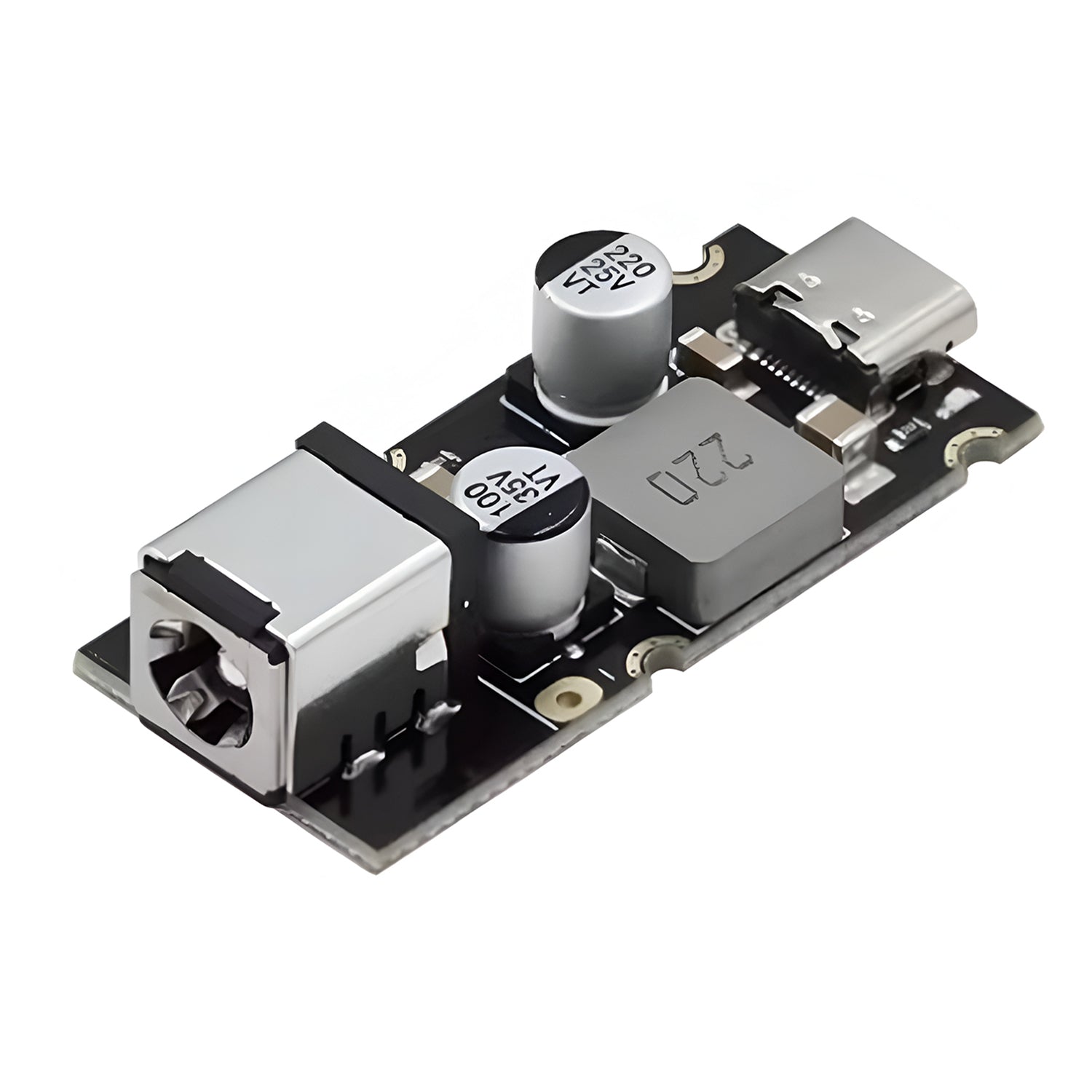

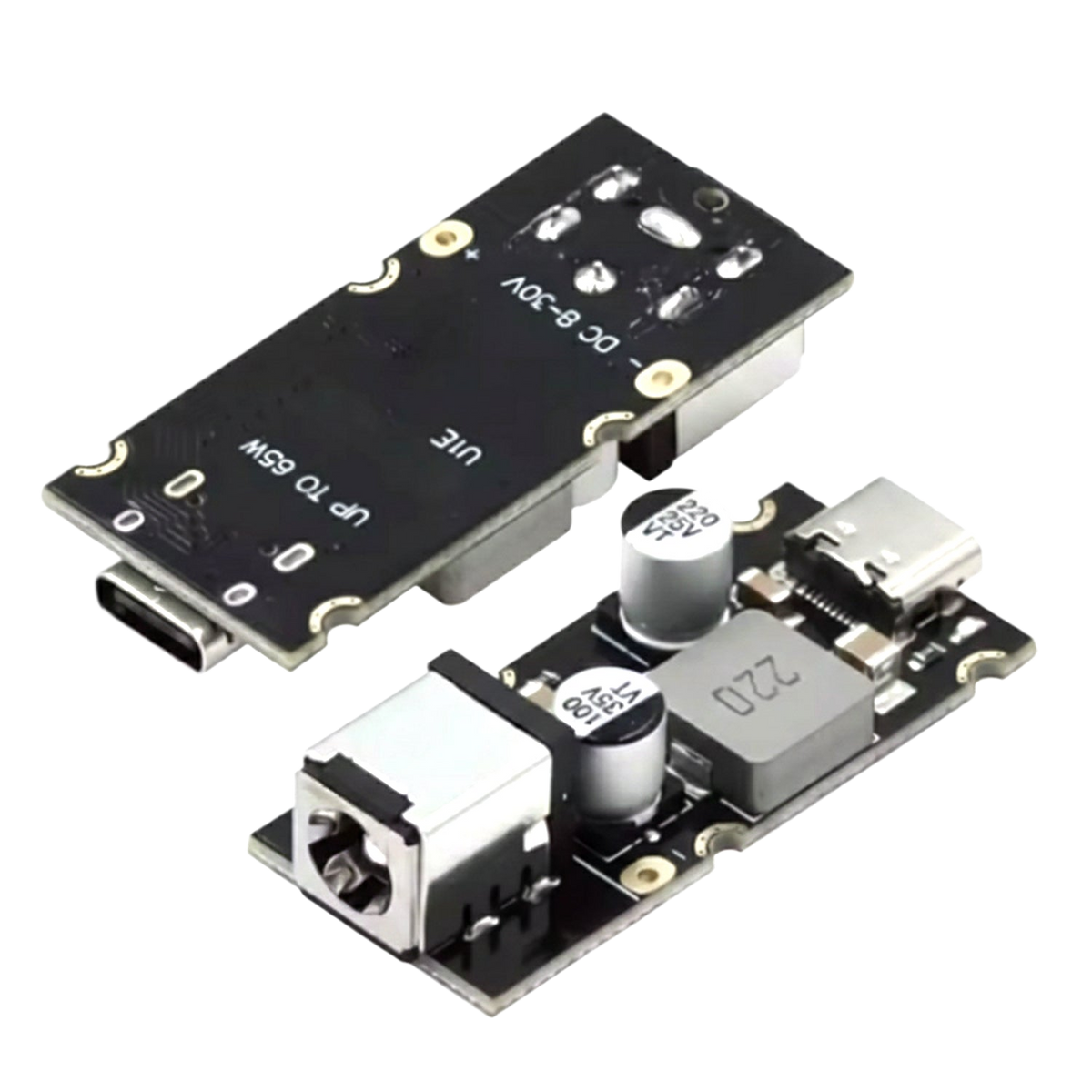

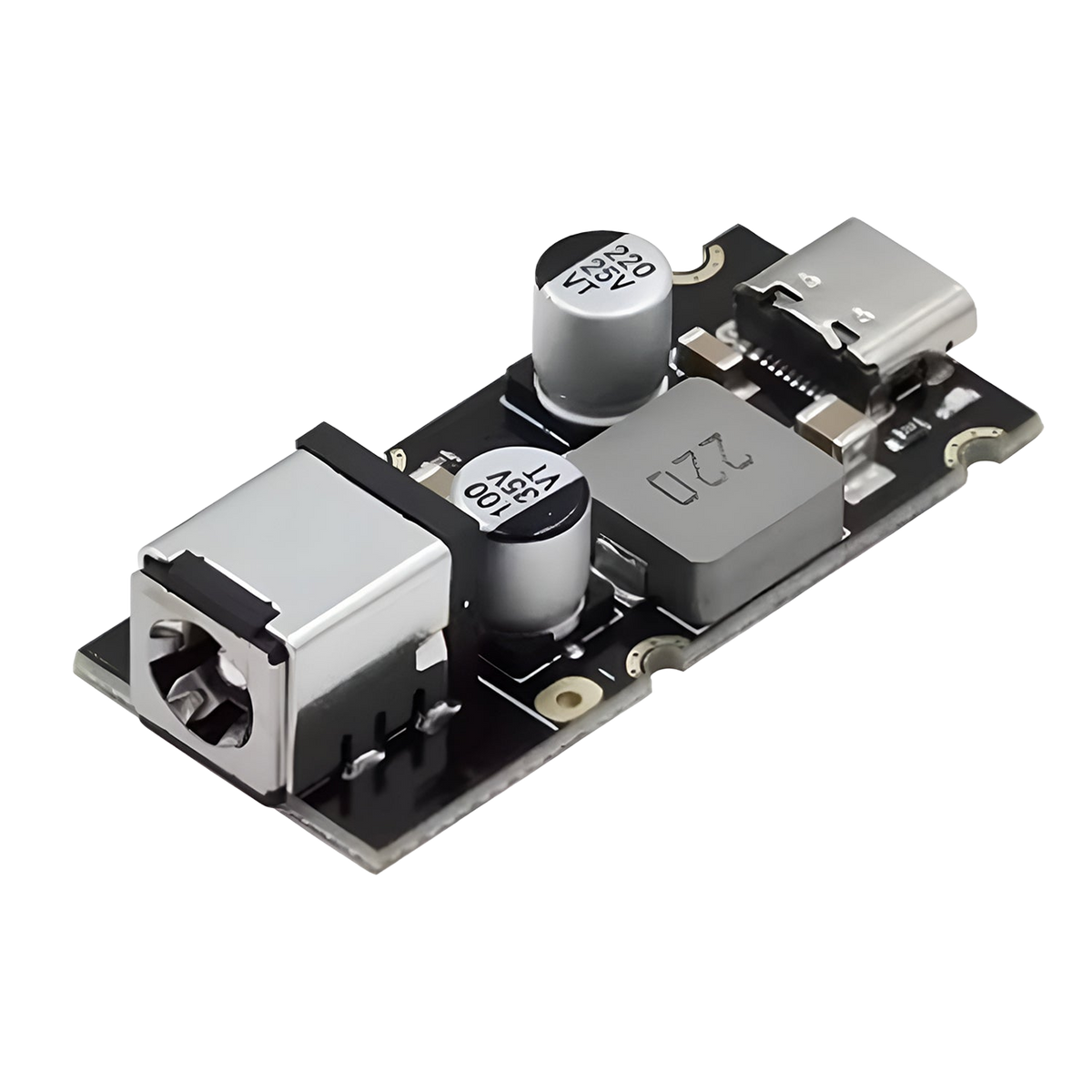

65W USB Fast Charger Module QC4.0 / QC3.0 & PD3.1 (PPS) | DC 8–30V Input DIY USB-C Charging Board

65W USB Fast Charger Module QC4.0 / QC3.0 & PD3.1 (PPS) | DC 8–30V Input DIY USB-C Charging Board

Name: 65W USB Fast Charger Module QC4.0 / QC3.0 & PD3.1 (PPS) | DC 8–30V Input DIY USB-C Charging Board
Brand: amiciKart
SKU: 1xBAT-8-32V-3.25A
Price: 359.00 INR
Availability: InStock

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Rs. 359.00 -56% Rs. 800.00 (MRP Inclusive of All Taxes)

Rs. 359.00

Chat on WhatsApp

Superfast Same-Day Shipping

30-Day Easy Returns

No questions asked return policy

1-Year Warranty

Comprehensive product warranty for peace of mind

Best Price Guarantee

Found it cheaper? We’ll match the price

Why You Need This Product ?: -If you want one compact module to build powerful fast-charging solutions for laptops, phones, and DIY projects using battery or solar power, this board saves cost, space, and complexity.

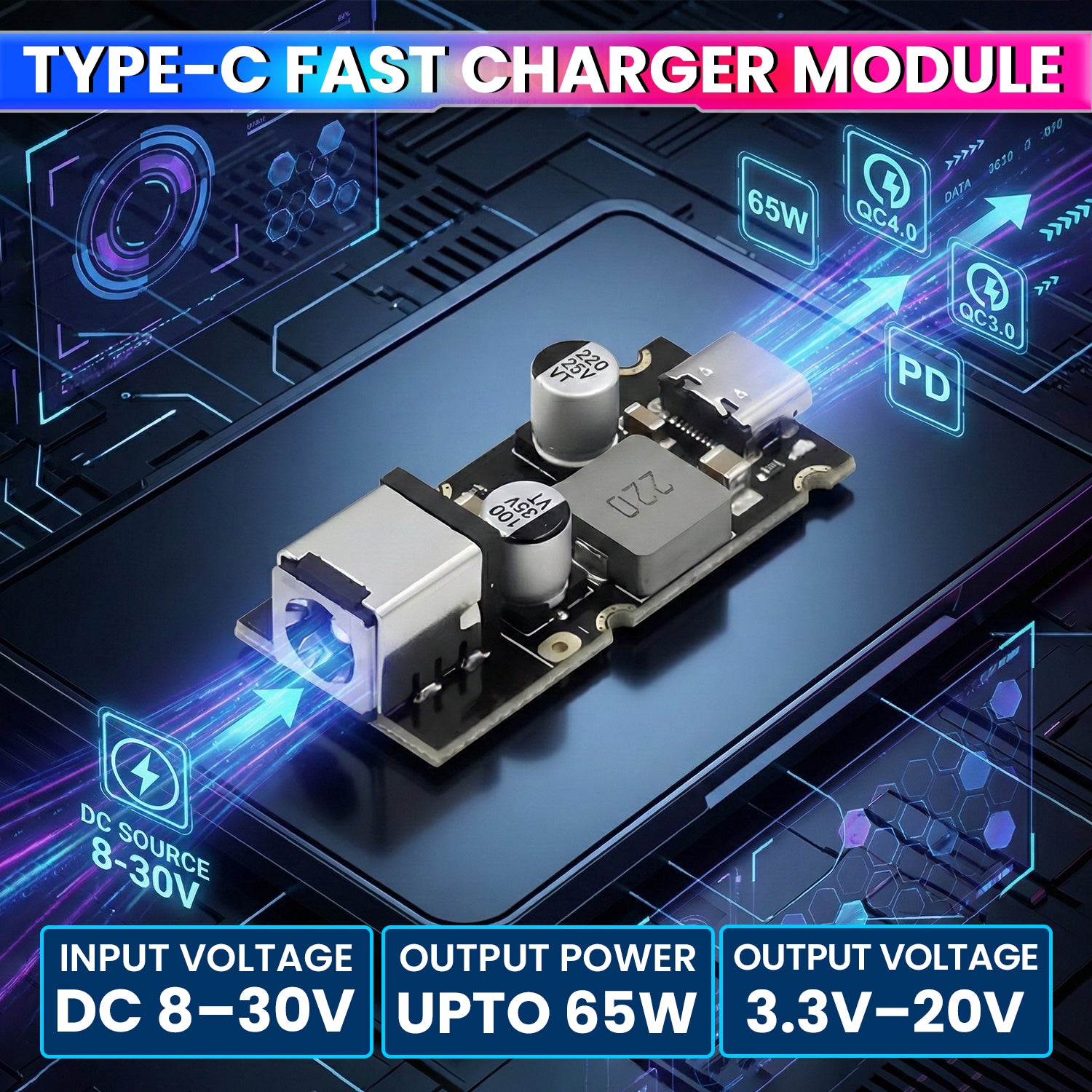

Powerful 65W Fast Charging Output: -Delivers up to 65W max power with automatic voltage adjustment (3.3V–20V). Easily fast-charge laptops, tablets, smartphones, and other USB-C PD devices.
Supports All Major Fast-Charge Protocols: -Compatible with USB-PD 3.1 (PPS), PD2.0, QC4.0/QC3.0/QC2.0, SCP, FCP, AFC, BC1.2 & MTK PE+, ensuring wide device compatibility.
Wide DC Input Range (8–30V): -Accepts 8–30V DC input from batteries, solar panels, adapters, or vehicle systems. Perfect for DIY power banks, solar chargers, and custom charging stations.
Advanced Safety Protection Built-In: -Equipped with over-voltage, under-voltage, over-current, short-circuit, and over-temperature protection for safe and stable charging performance.

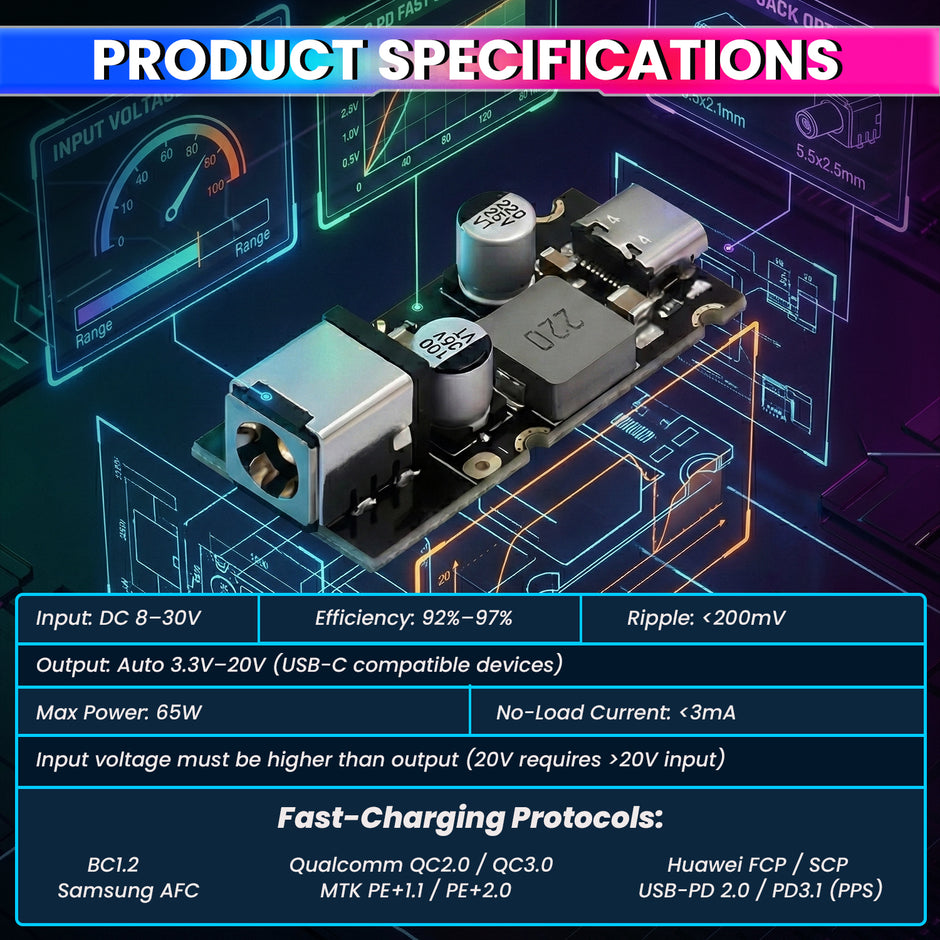

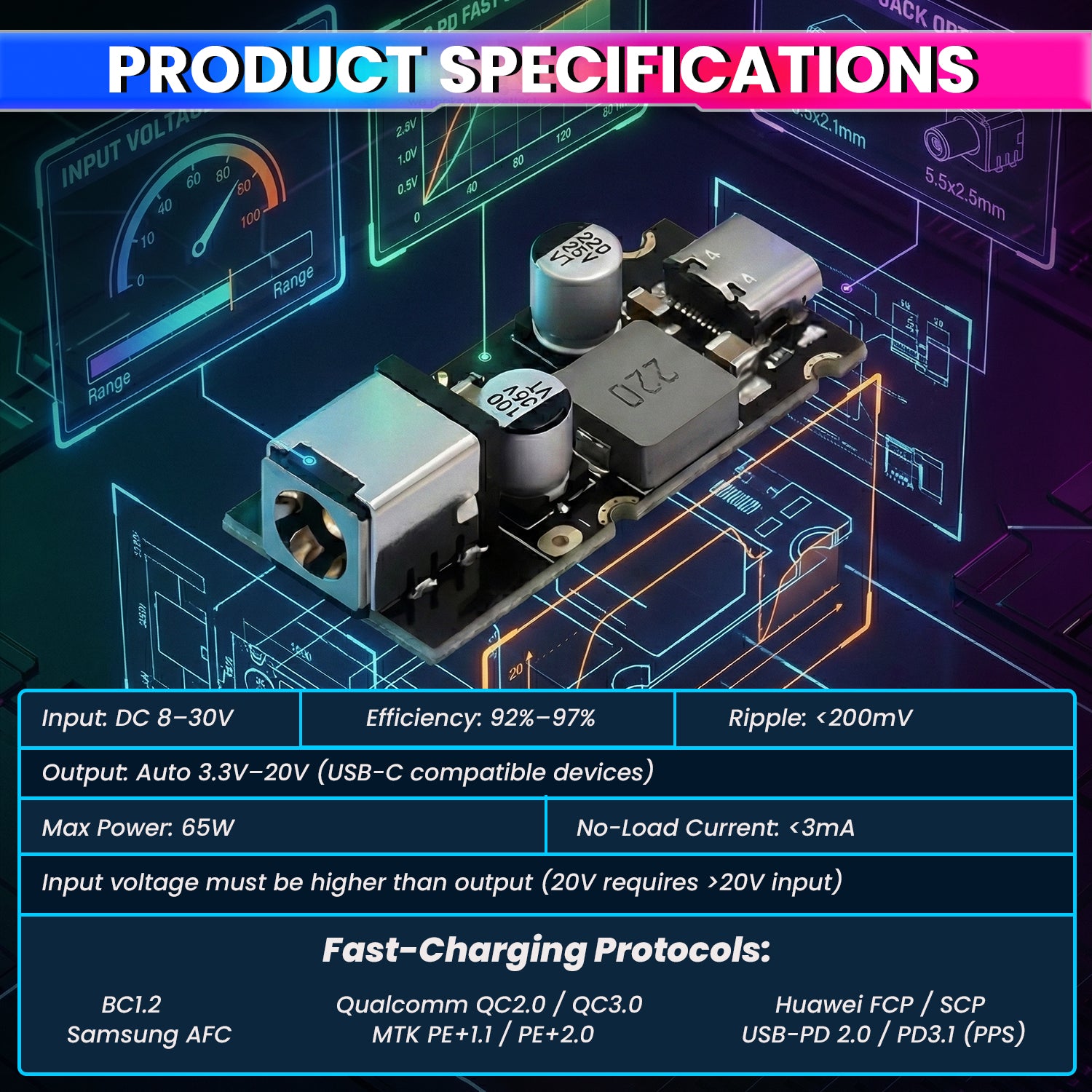

High Efficiency & Low Heat Operation: -Achieves 92%–97% conversion efficiency with output ripple below 200mV, delivering clean power with minimal heat generation.
1-Year Warranty & Dedicated Support:- For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.

Description

The amiciSolar 65W USB Fast Charger Module is a high-performance DIY charging solution designed for modern fast-charging needs. Supporting the latest USB-PD 3.1 (PPS) along with QC4.0, QC3.0, SCP, FCP, AFC, and more, it intelligently adjusts output voltage to safely deliver fast power to a wide range of devices.
With a broad 8–30V DC input range, this module works seamlessly with batteries, solar systems, vehicle power sources, and adapters. Whether you’re building a DIY power bank, solar charging system, or embedded charging station, this module ensures stable, efficient, and protected power delivery.
