Know before you buy
-
Electrician required
Circuit breakers and residual-current devices must be selected and installed by a qualified electrician for the panel, cable and load.
-
Faceplate-confirmed 63A · 30mA · 6kA
AM63LE faceplate: 63A, 230V~ 50/60Hz, IΔn=30mA, Icu=6kA, IEC61009-1, t≤0.1s, Type AC. Selectable leakage Input/Ouit style control per family.
-
Trip curve letter not on faceplate
No B/C (or other) trip-curve letter is visible on the AM63LE faceplate photos. Do not invent a curve — leave unpublished.
Features that make it useful
-

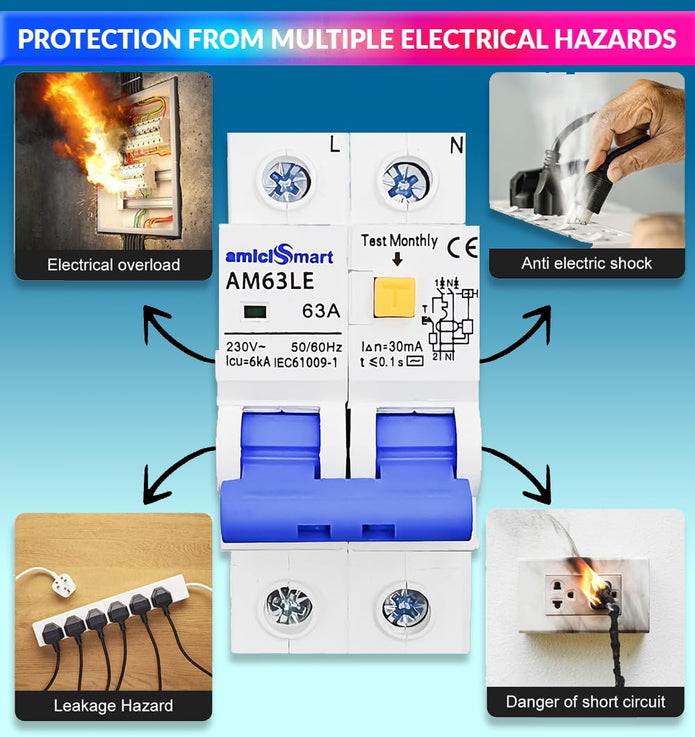

3-in-1 protection
Residual current leakage, overcurrent and short-circuit protection in one DIN-rail RCBO (listing + faceplate IEC61009-1).
-

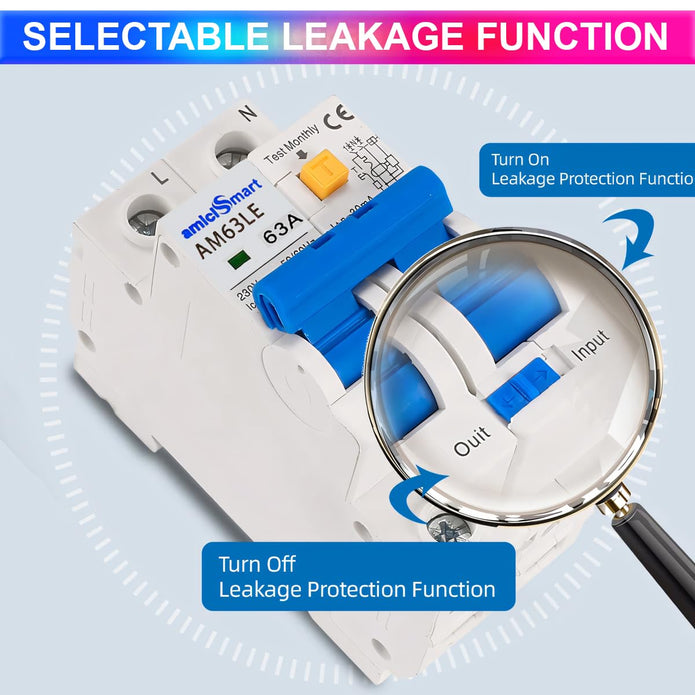

Separate leakage control switch
Independently enable/disable leakage protection without removing the breaker (listing USP). Follow electrician practice when testing.
-
Fast trip · Type AC
Faceplate t≤0.1s; Type AC residual symbol. IΔn=30mA; Icu=6kA.
-
AM63LE family · 63A face marking
Same model family across amps; ampere rating printed on the face. Related separate listings: 16A, 32A, 63A, 80A.
How to use
-
Have an electrician size the circuit
Confirm load current, cable, and that a 63A / 30mA Type AC RCBO is correct for that branch.
-

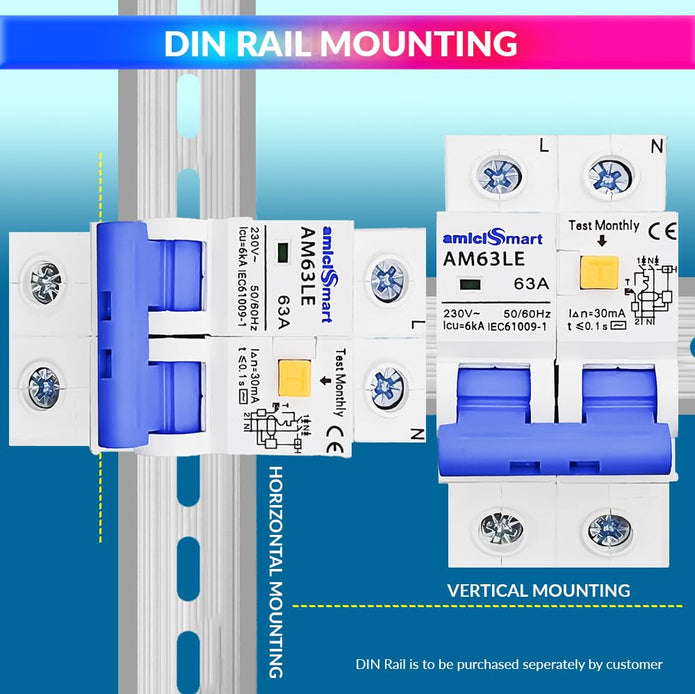

Isolate the board and mount on DIN rail

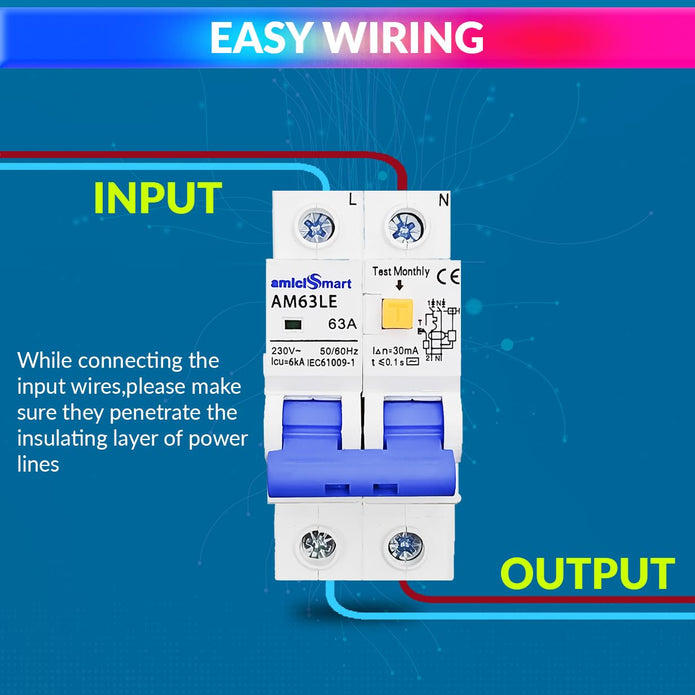

Qualified installer mounts the RCBO, wires L/N line/load correctly, and tests the leakage function monthly with the yellow T button / approved tester.
-
Use leakage switch only with understanding
Leaving leakage protection OFF removes shock-protection benefit—do not treat as a convenience default.
RCBO 63A with Leakage Control Switch
amiciSmart · AM63LE · 63A · 230V~ 50/60Hz · IΔn 30mA · Icu 6kA · Type AC · IEC61009-1 · Separate leakage ON/OFF · DIN-rail
Two-module AM63LE RCBO (63A) for 230V~ panels combining residual-current (leakage), overcurrent and short-circuit protection, with a dedicated switch to enable/disable leakage protection independently. Faceplate: IΔn=30mA, Icu=6kA, t≤0.1...
Sale price
Rs. 899.00
-56%
Regular price
Rs. 2,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 899.00
Unit price
Increments of 1
Minimum of 1
Maximum of
63A RCBO Circuit Breaker Overcurrent, Short-Circuit & Leakage Protection with On/Off Switch
Sale price
Rs. 899.00
Regular price
Rs. 2,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 899.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| SKU | 1x2M-RCBO-MO-63A |
|---|---|
| Product ID | 8768657686683 |
| Brand (handle/face) | amiciSmart |
| Model (faceplate) | AM63LE |
| Rated current In (faceplate) | 63A |
| Rated voltage / frequency (faceplate) | 230V~ 50/60Hz |
| IΔn (faceplate) | 30mA |
| Icu (faceplate) | 6kA |
| Standard (faceplate) | IEC61009-1 |
| Trip time (faceplate) | t≤0.1s |
| Residual type (faceplate) | Type AC |
| Trip curve letter | Not printed on faceplate — unpublished (do not invent) |
| Leakage control | Dedicated separate ON/OFF / selectable leakage Input/Ouit (family) |
| Mounting | DIN-rail · 2-module style |
| Family inventory note (owner) | 63A qty20 |
| Marketing claims removed | ‘India’s first’ dropped from guided copy |
| Warranty (listing) | 1 year; support 980-970-9898 / care@amicikart.com |
| Evidence note | Faceplate photos evidence/rcbo-faceplates/ + product.js + owner corrections 2026-09-18 IST |
Frequently asked questions
Is this definitely 63A?
Yes for this listing. Faceplate photos show AM63LE with 63A printed on the face.
What is the residual current rating?
IΔn=30mA on the faceplate (Type AC).
What trip curve is it (B/C)?
No trip-curve letter is visible on the faceplate. Guided copy leaves curve unpublished rather than inventing C or B.
What is the leakage switch for?
Per listing, it lets you independently turn leakage protection on or off—for example during certain tests—without removing the breaker. Leaving it off disables leakage protection.
Are 16A/32A/63A/80A variants of one Shopify product?
No. They are related separate listings in the same AM63LE hardware family — not Shopify variants on a single product.
Full Product Description
amiciSmart RCBO AM63LE (63A) with Separate Leakage Control
Draft for product 8768657686683, SKU 1x2M-RCBO-MO-63A. Original title/handle preserved. ‘India’s first’ marketing removed from guided copy.
Evidence: faceplate photos + live product.js + owner corrections 2026-09-18 IST.

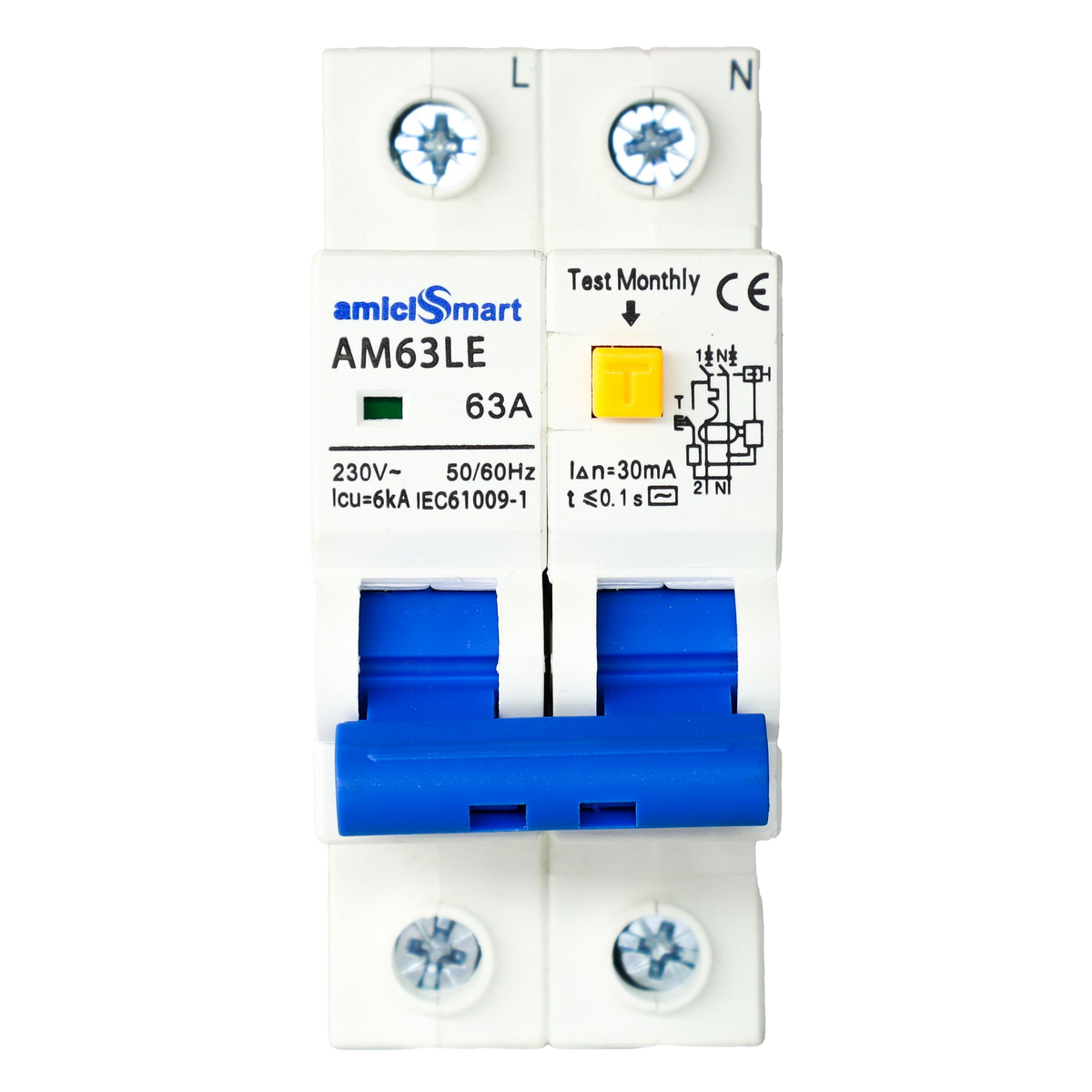

Faceplate (AM63LE)
- 63A · 230V~ 50/60Hz · IΔn=30mA · Icu=6kA · IEC61009-1 · t≤0.1s · Type AC
- Trip curve letter: not on faceplate — unpublished
Family
Related separate listings: 16A, 32A, 63A, 80A. Inventory note: 63A qty20.
Qualified electrician required.
