Know before you buy
-
230VAC single-phase monitor
Monitors the incoming 230VAC single-phase supply.
-
OV 230–300V · UV 80–210V
Adjustable voltage trip windows.
-
63A / 13.8kW · OC 1–63A
Heavy single-phase load class.
-
Auto-recovery 1–500 s delay
Restarts after supply stabilises.
Features that make it useful
-

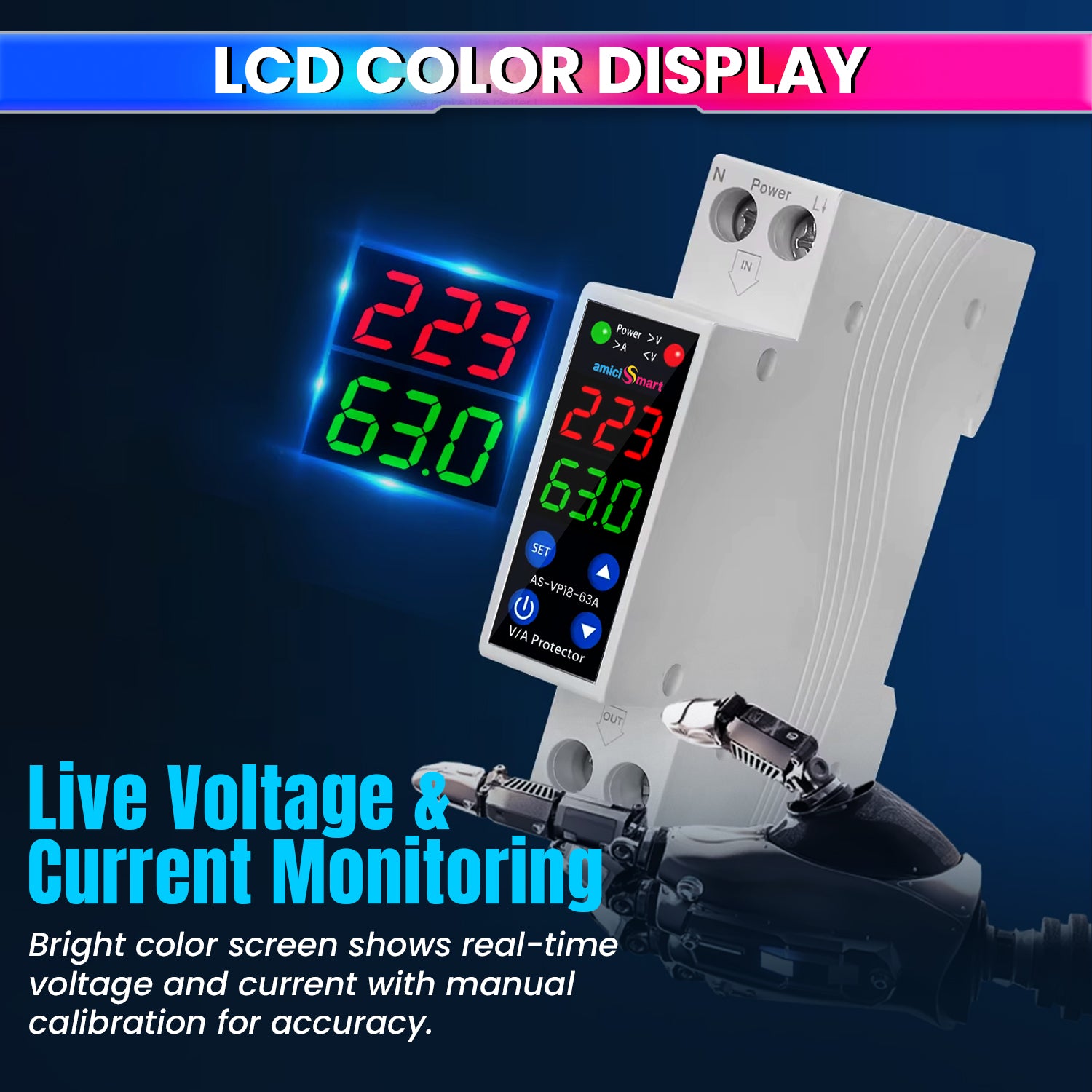

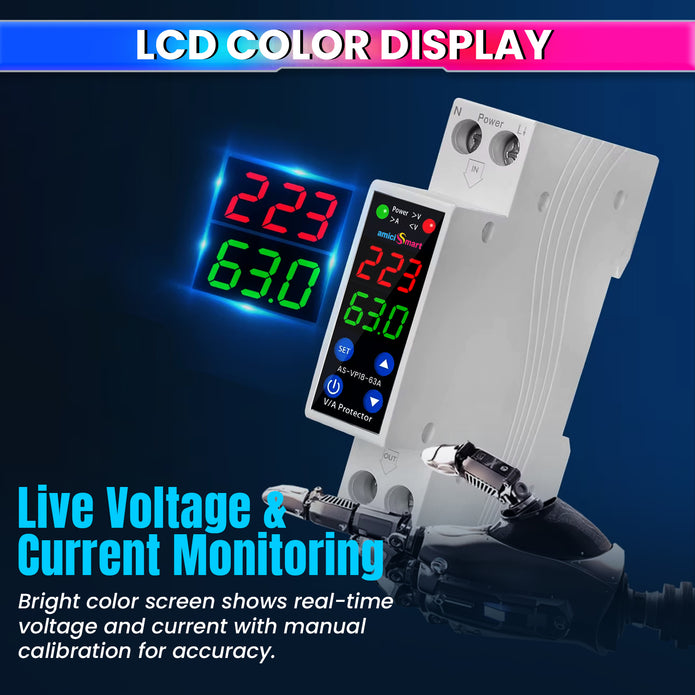

Dual digital V + I display
Live panel readings.
-

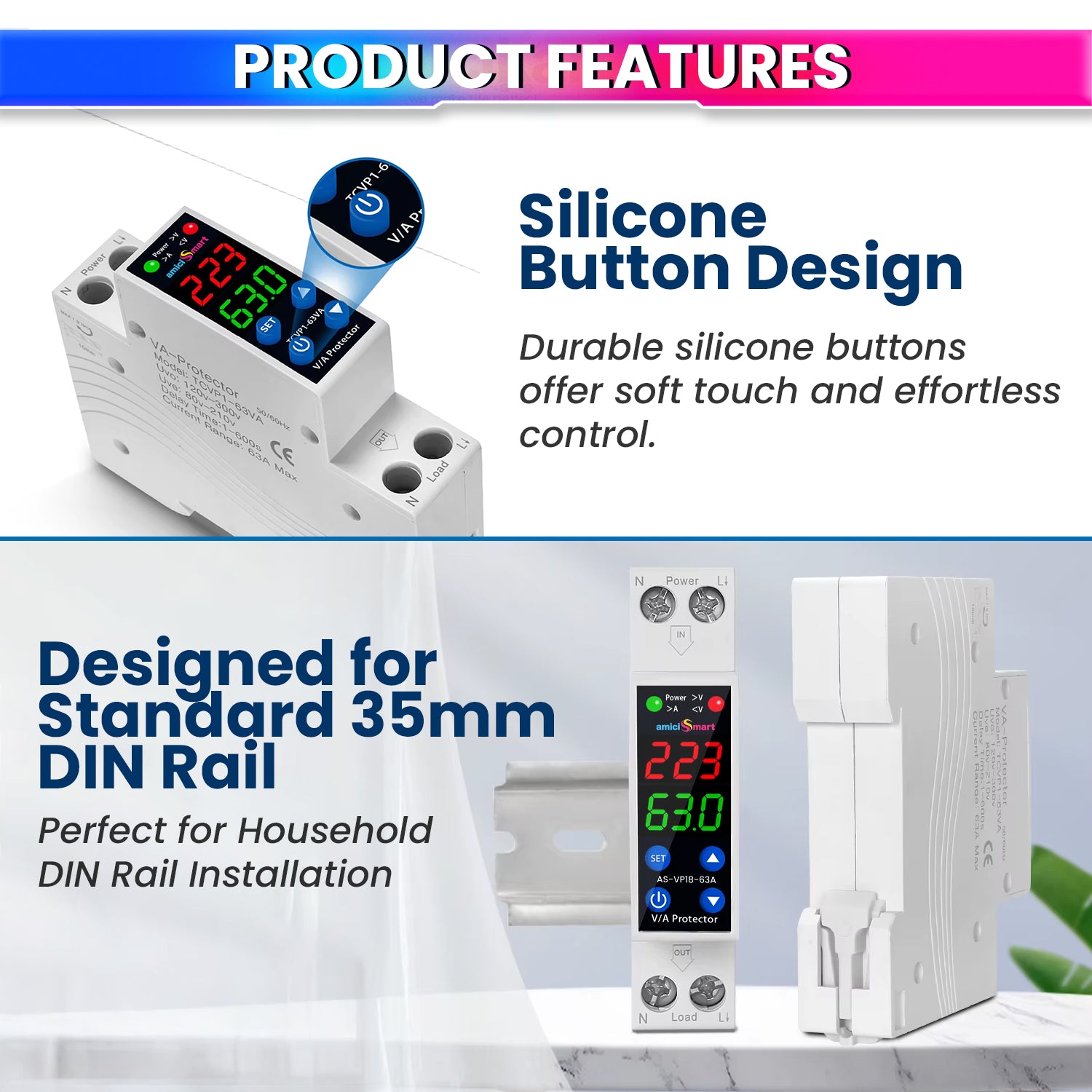

18mm single DIN-rail module

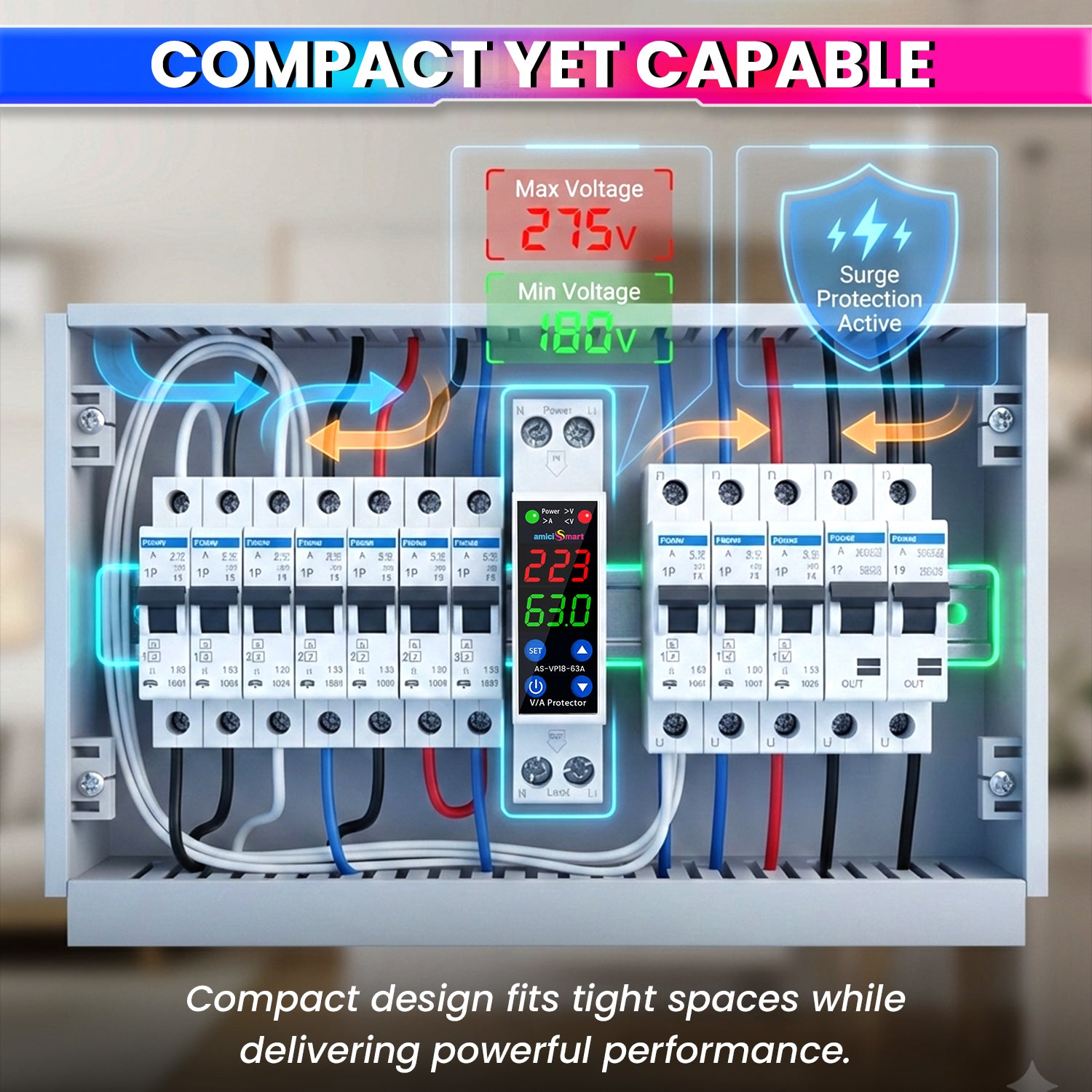

Fits standard DB boxes.
-
Calibration ±9.5%
Adjustable calibration of ±9.5%.
-
1-year warranty · India support
980-970-9898 / care@amicikart.com.
How to use
-
Confirm single-phase 230VAC panel and ≤63A / 13.8kW load class
Do not exceed 63A.
-

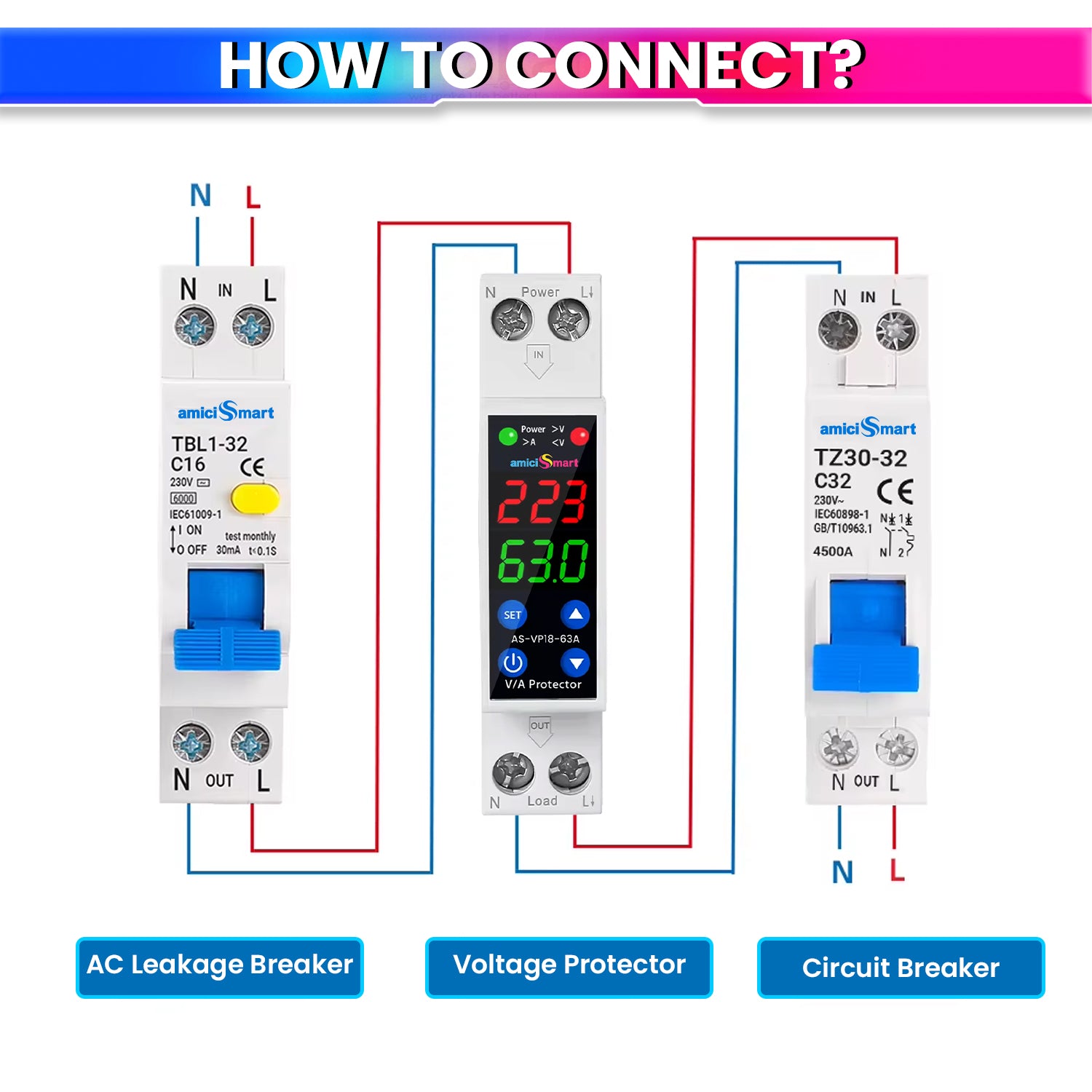

Snap into 18mm DIN slot; set OV/UV/OC thresholds for local supply
OV 230–300V · UV 80–210V · OC 1–63A.
-
Set the auto-recovery delay (1–500 s) and check the V/I display
The protector restarts automatically once the supply stabilises.

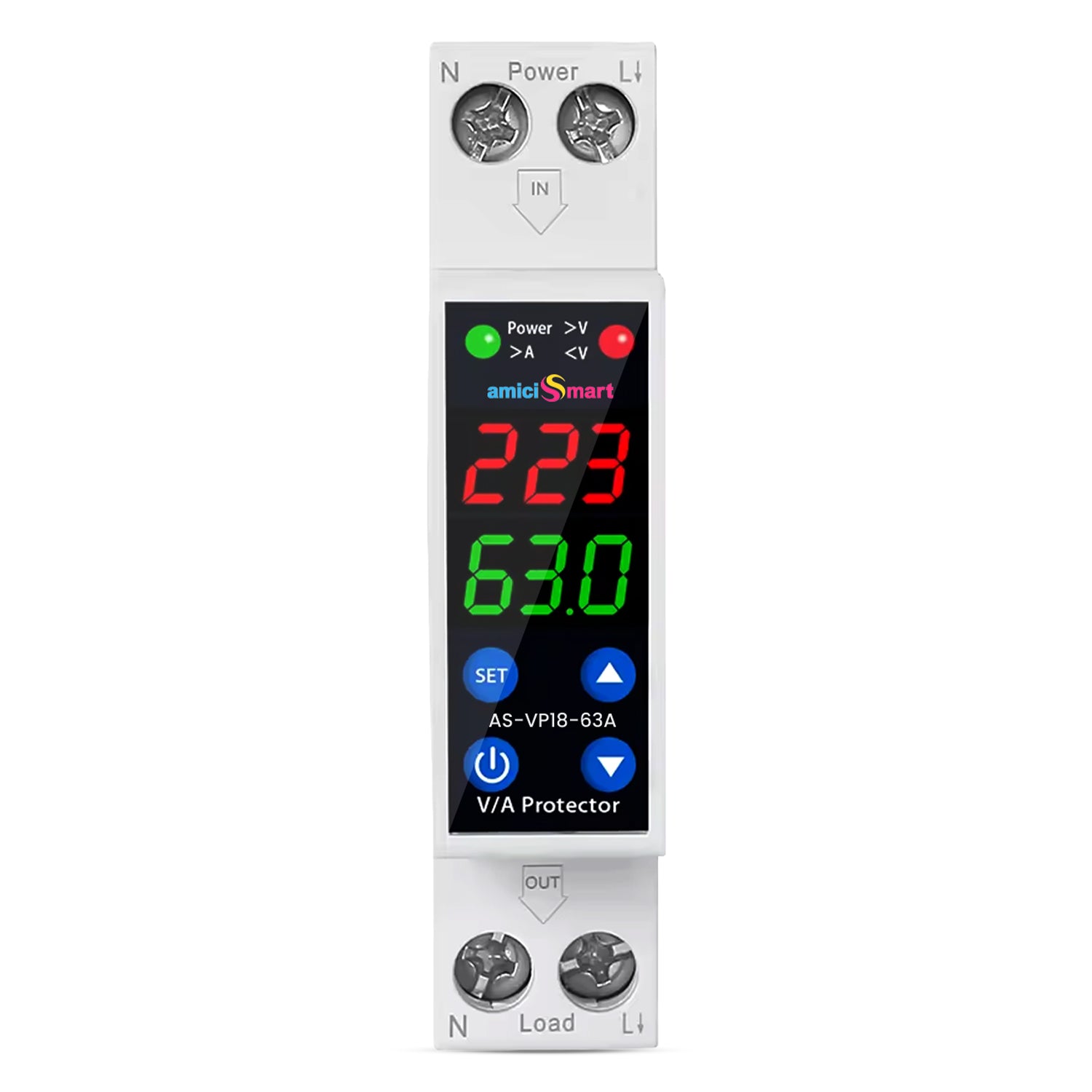

63A 18mm Voltage Protector 230VAC
amiciKart · 230VAC 1-ph · OV 230–300V · UV 80–210V · 1–63A · auto-recovery

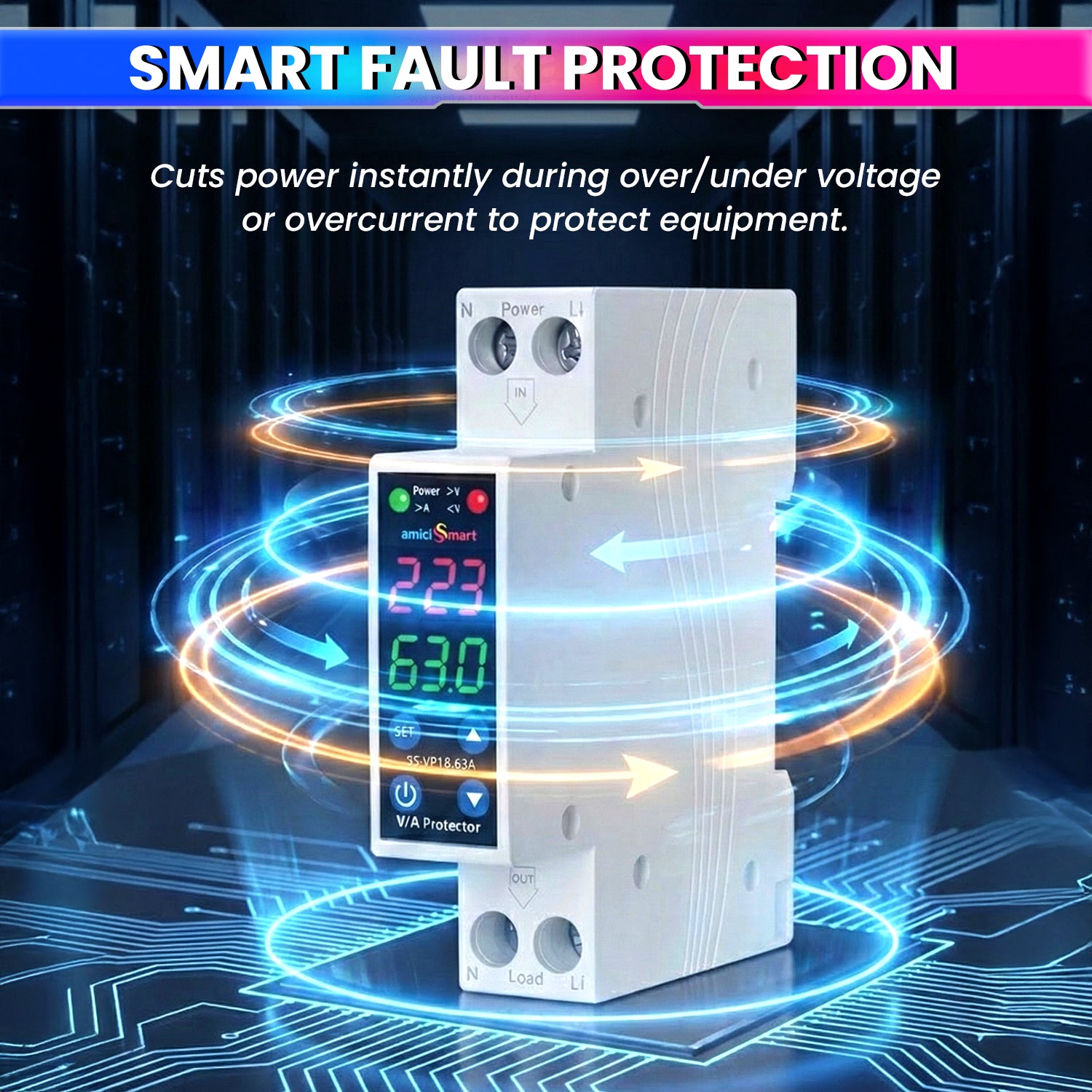

18mm single-DIN digital protector for 230VAC single-phase panels: cuts supply on over/under-voltage or over-current. Adjustable OV 230–300V, UV 80–210V, OC 1–63A; 63A / 13.8kW; auto-recovery with 1–500 s delay; dual V + I display.
Sale price
Rs. 999.00
-67%
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
Increments of 1
Minimum of 1
Maximum of
63A 18mm Digital Voltage Protector | Dual Display | Auto Recovery | 230VAC (13.8kW)
Sale price
Rs. 999.00
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xOVRLOD-18MM |
|---|---|
| Brand | amiciKart |
| Device class | 18mm DIN digital over/under-voltage + over-current protector |
| Supply | 230VAC single-phase |
| Load class | 63A / 13.8kW |
| Over-voltage adjust | 230–300V |
| Under-voltage adjust | 80–210V |
| Over-current adjust | 1–63A |
| Auto-recovery | 1–500 second adjustable restart delay |
| Display | Dual digital voltage + current |
| Calibration | ±9.5% |

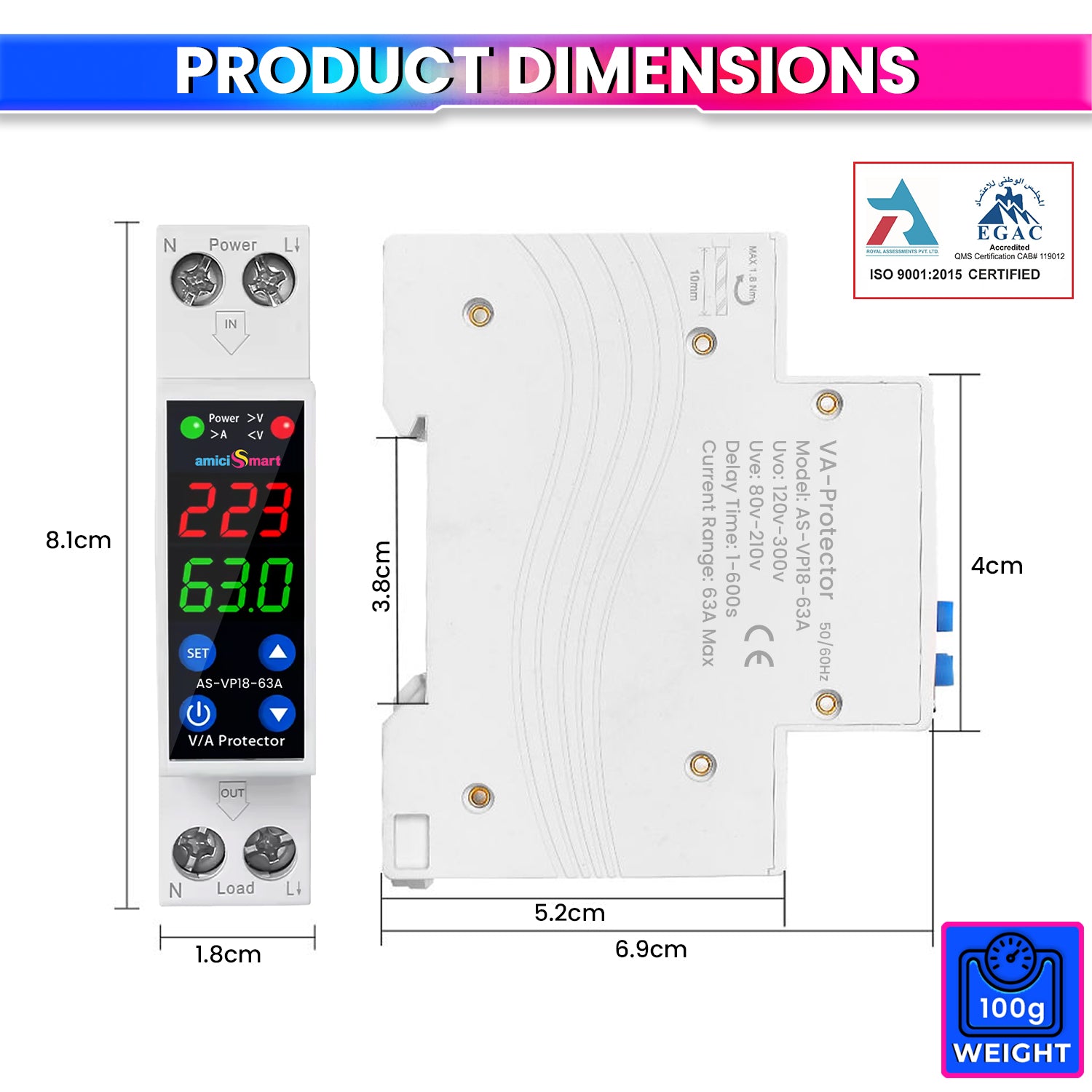

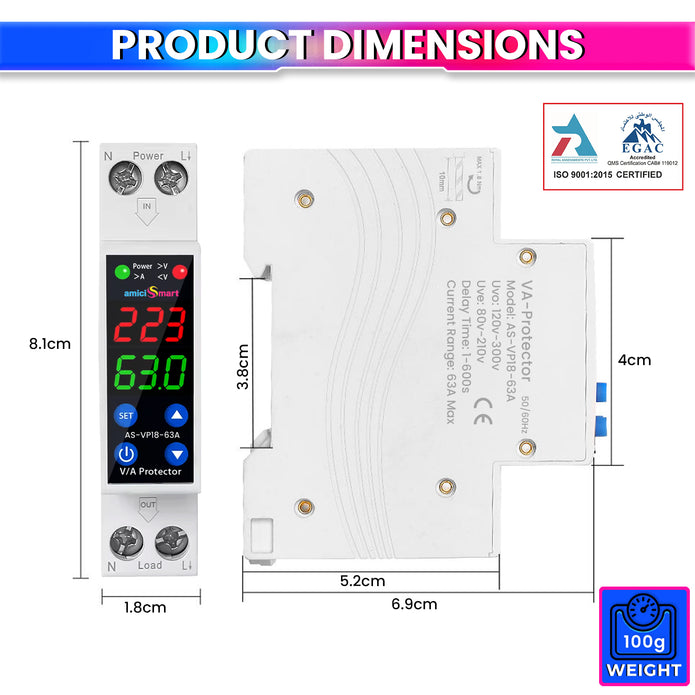

| Form factor | 18mm single DIN-rail |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
What VAC does it monitor?
Incoming 230VAC single-phase supply, with adjustable OV 230–300V and UV 80–210V.
What current/power class?
Up to 63A / 13.8kW with adjustable over-current 1–63A.
Does it auto-reset?
Yes — auto-recovery with adjustable 1–500 second delay after supply stabilises.
Full Product Description
63A 18mm Voltage Protector 230VAC
18mm single-DIN digital voltage protector for 230VAC single-phase panels: monitors incoming supply, cuts on over/under-voltage or over-current. Adjustable OV 230–300V, UV 80–210V, over-current 1–63A; load class 63A / 13.8kW; auto-recovery with 1–500 s restart delay; dual display for live V and I; calibration ±9.5%.
- Dual digital V + I display: Live panel readings.
- 18mm single DIN-rail module: Fits standard DB boxes.
- Calibration ±9.5%: Adjustable calibration.
- 1-year warranty · India support: 980-970-9898 / care@amicikart.com.
