Know before you buy
-
12V–600V DC, up to 300A
Covers small rooftop setups through to large off-grid and commercial systems.
-
2-pole, C curve
Double-pole DC breaker with a C trip curve.
-
50kA breaking capacity
Interrupts severe DC fault currents to reduce fire risk.
-
Electrician installation
Must be fitted by a qualified electrician with the circuit isolated.
Features that make it useful
-
High-current DC protection
For high-voltage, high-current DC circuits up to 300A.
-
Solar, wind and hydro
Designed for renewable energy DC systems.
-
1-year warranty
Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
How to use
-
Isolate everything first
Switch off and isolate the circuit, including the solar panel side, before any work. Installation should be done by a qualified electrician.
-

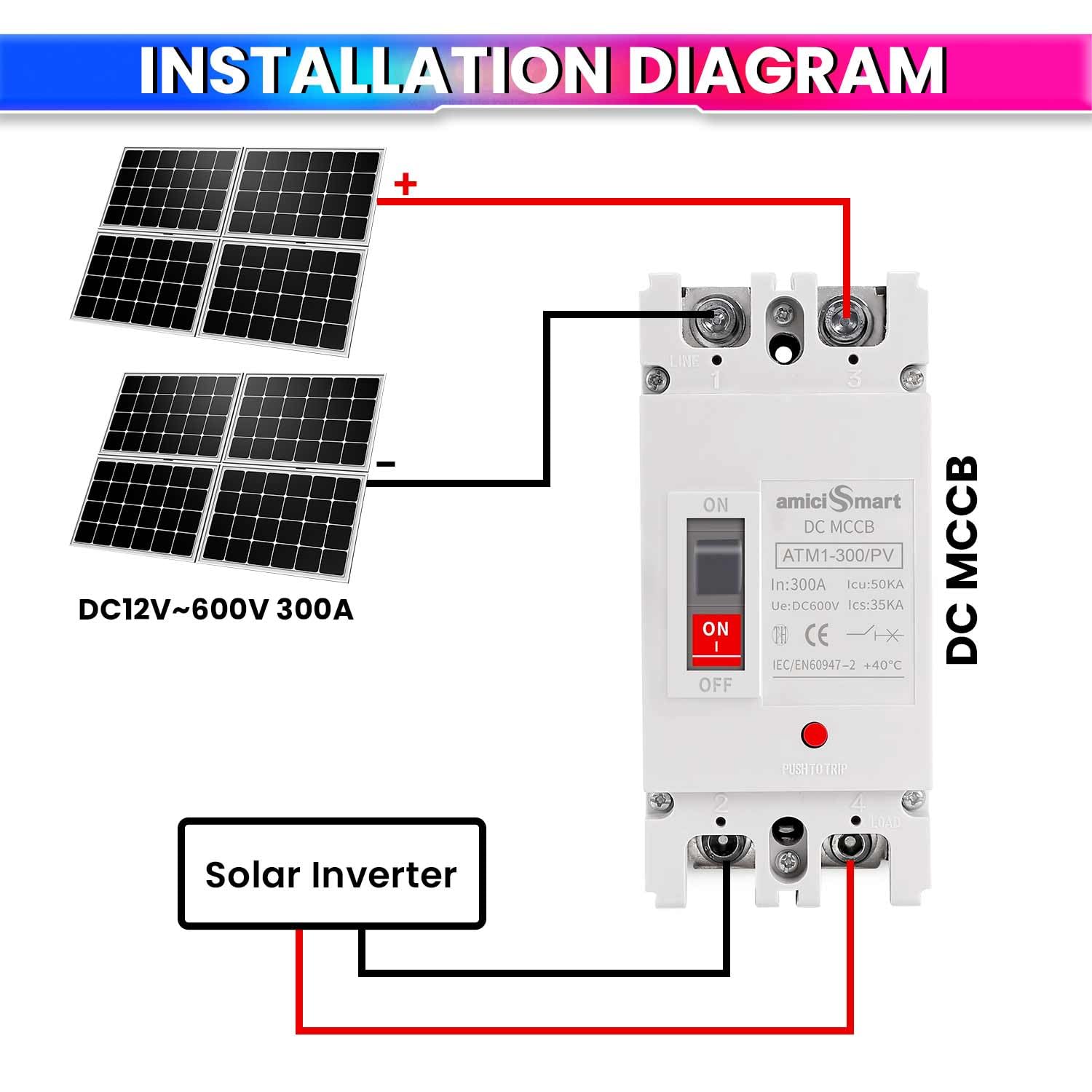

Mount and connect
Fit the breaker in the enclosure and connect it into the DC circuit it protects, keeping within its voltage and current rating.
-
Switch on and check
Restore the supply and switch the breaker on. Use the ON/OFF switch to isolate the circuit manually during maintenance.

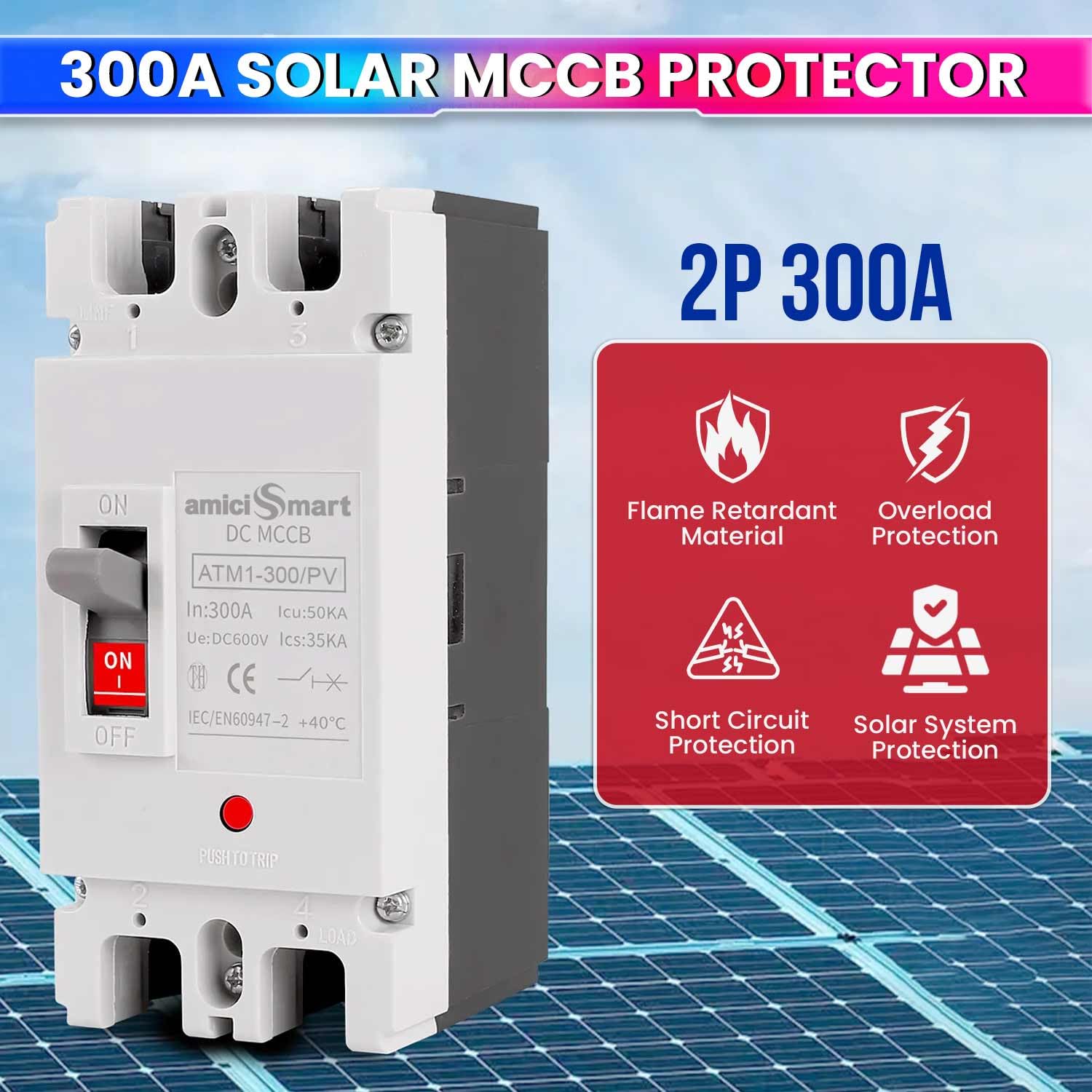

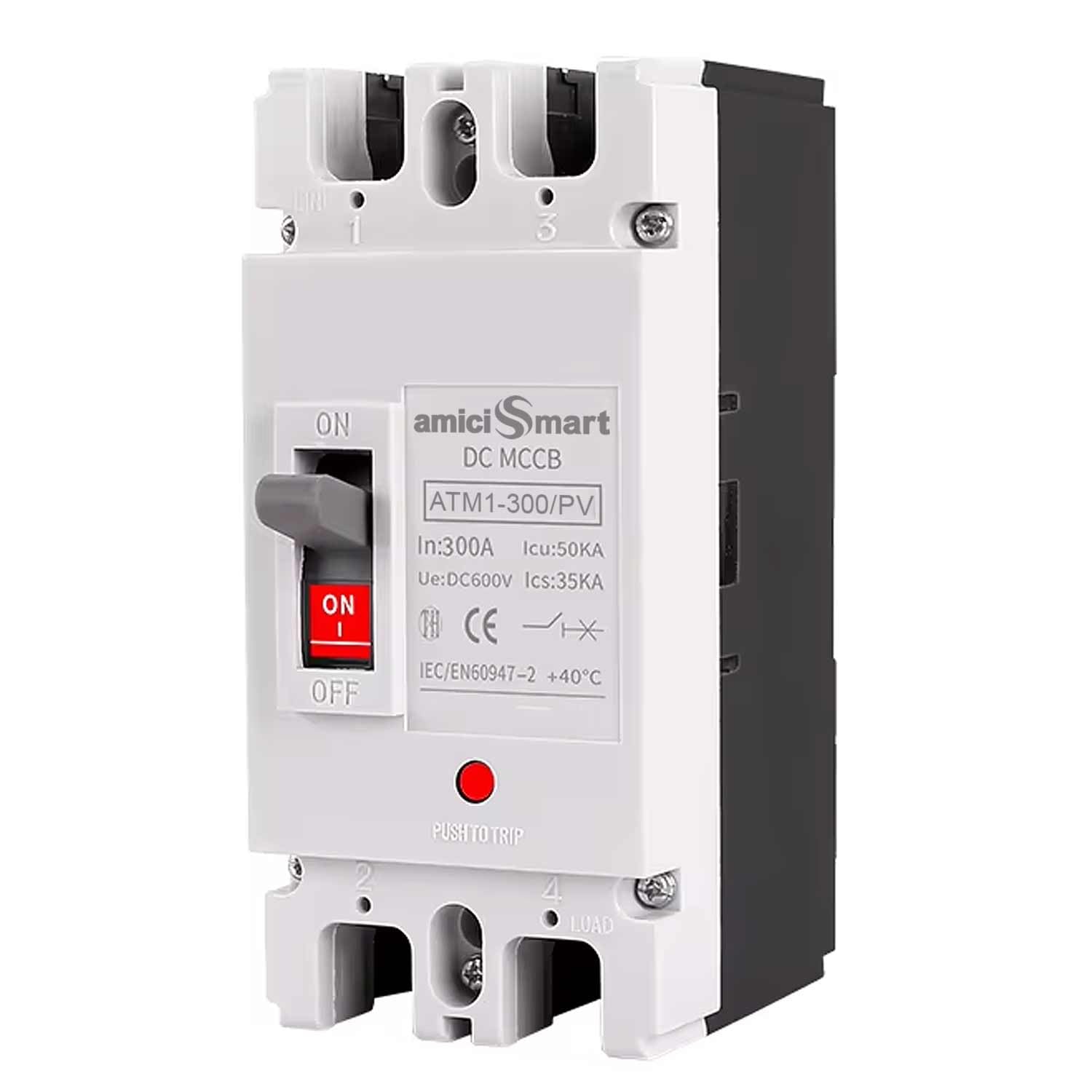

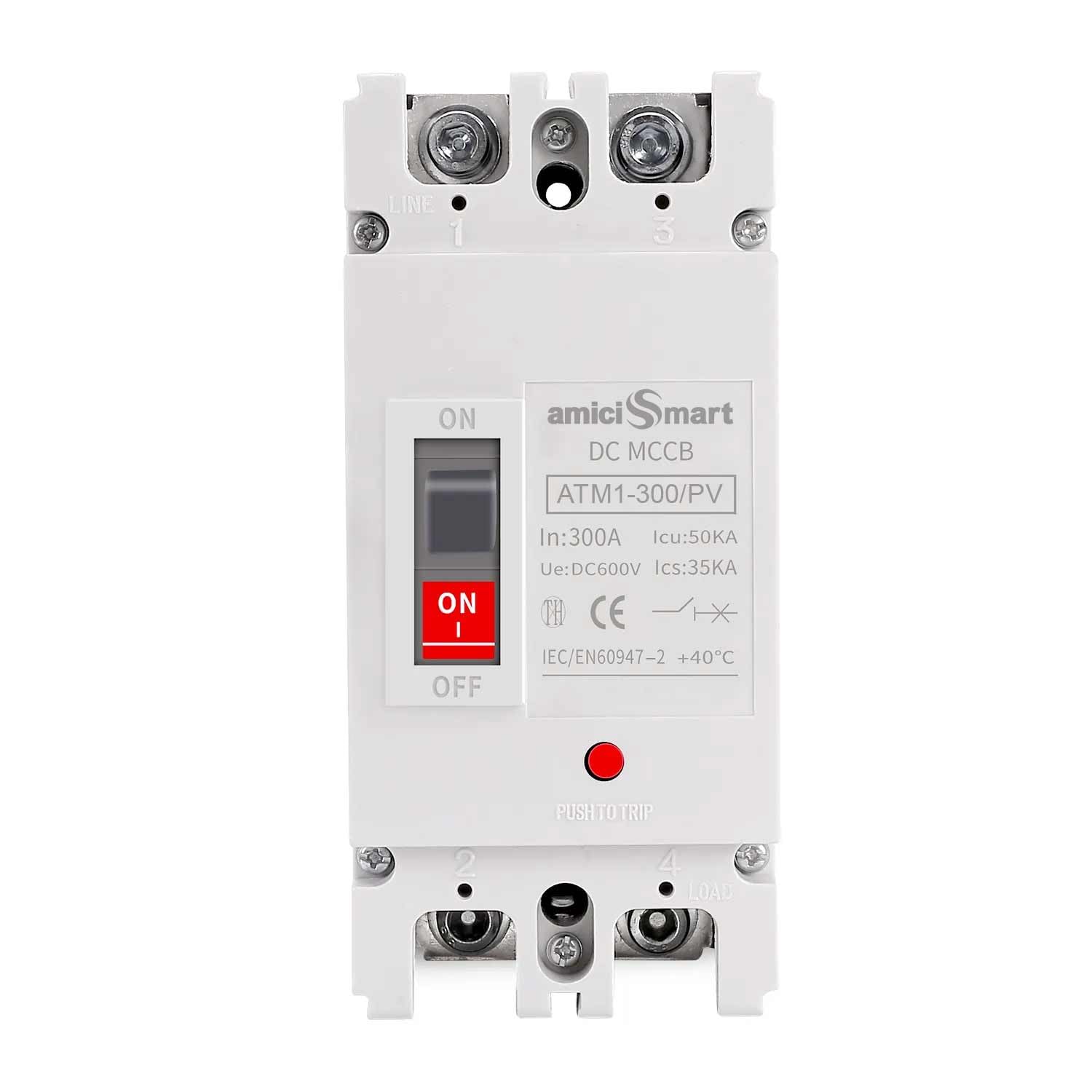

600V DC Circuit Breaker 300A, 2-Pole, C Curve, 50kA
amiciKart · 300A · 12V–600V DC · 2-pole · C curve · 50kA breaking capacity
A 2-pole DC circuit breaker for PV solar, wind and hydropower systems. It works on DC circuits from 12V to 600V at up to 300A, has a C trip curve and 50kA breaking capacity, and disconnects automatically on overload or short circuit. It ...
Sale price
Rs. 5,499.00
-22%
Regular price
Rs. 7,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 5,499.00
Unit price
Increments of 1
Minimum of 1
Maximum of
600V DC Circuit Breaker for Solar & Renewable Systems (300A)
Sale price
Rs. 5,499.00
Regular price
Rs. 7,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 5,499.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

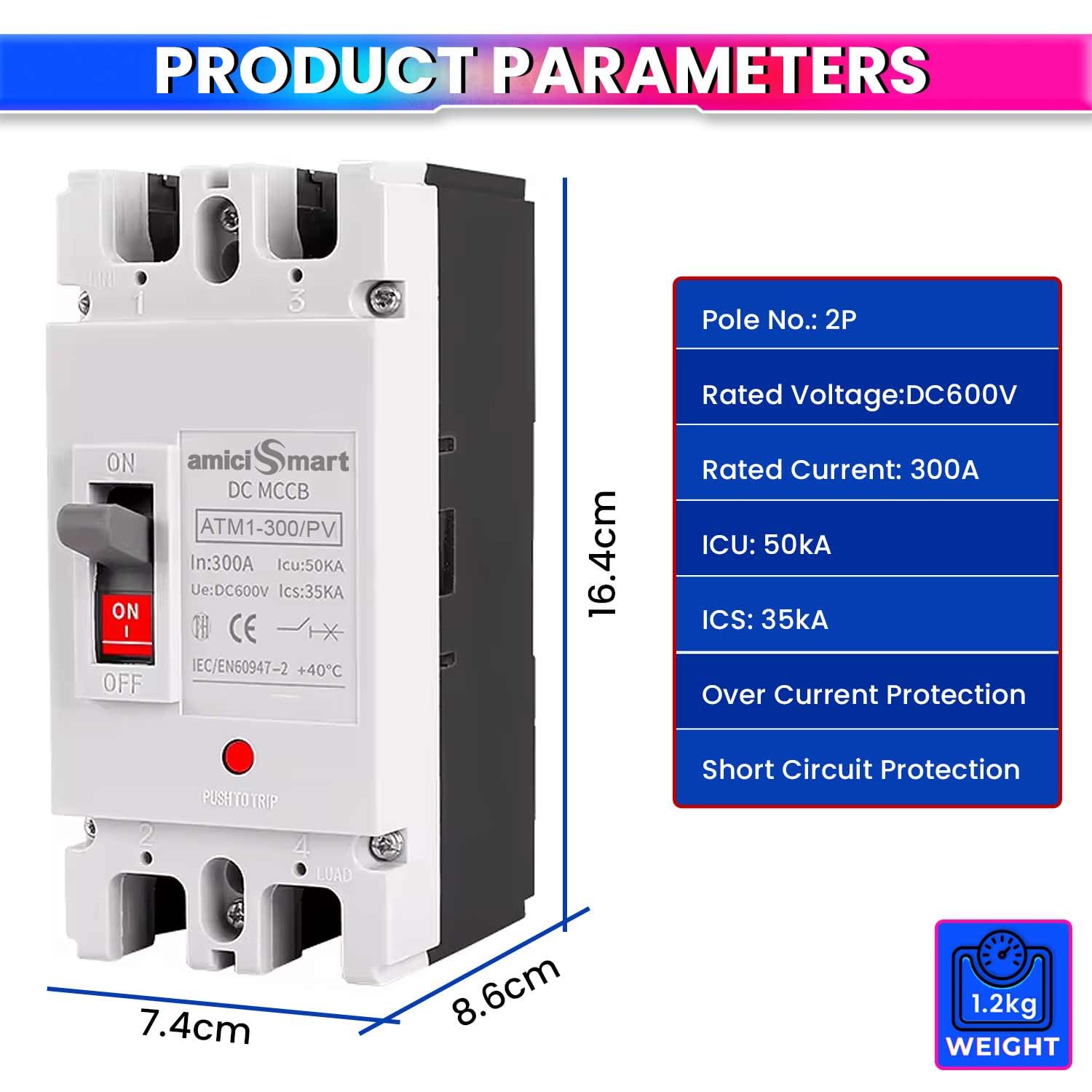

Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xDC-MCCB-300A |
| Type | DC circuit breaker |
| Voltage range | 12V–600V DC |
| Rated current | 300A |
| Poles | 2 |
| Trip curve | C |
| Breaking capacity | 50kA |
| Protection | Overload and short circuit, automatic disconnection |
| Warranty | 1 year |
| Support | 980-970-9898 / care@amicikart.com |
Frequently asked questions
How many poles does it have?
It is a 2-pole breaker.
What is the trip curve?
C curve.
What voltage can it be used on?
DC circuits from 12V to 600V, at up to 300A.
Can I install it myself?
It should be installed by a qualified electrician with the circuit isolated, including the solar panel side.
Full Product Description
600V DC Circuit Breaker 300A, 2-Pole, C Curve, 50kA
A 2-pole DC circuit breaker for PV solar, wind and hydropower systems. It works on DC circuits from 12V to 600V at up to 300A, has a C trip curve and 50kA breaking capacity, and disconnects automatically on overload or short circuit. It comes with a 1-year warranty.
- High-current DC protection: For high-voltage, high-current DC circuits up to 300A.
- Solar, wind and hydro: Designed for renewable energy DC systems.
- 1-year warranty: Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
Important: This breaker must be installed by a qualified electrician with the circuit isolated. Solar panels produce voltage whenever light falls on them, so isolate the panel side as well as the battery or inverter side before any work.
