Know before you buy
-
Choose circuit protection carefully
Have an electrician assess the circuit, load and required protective devices.
-

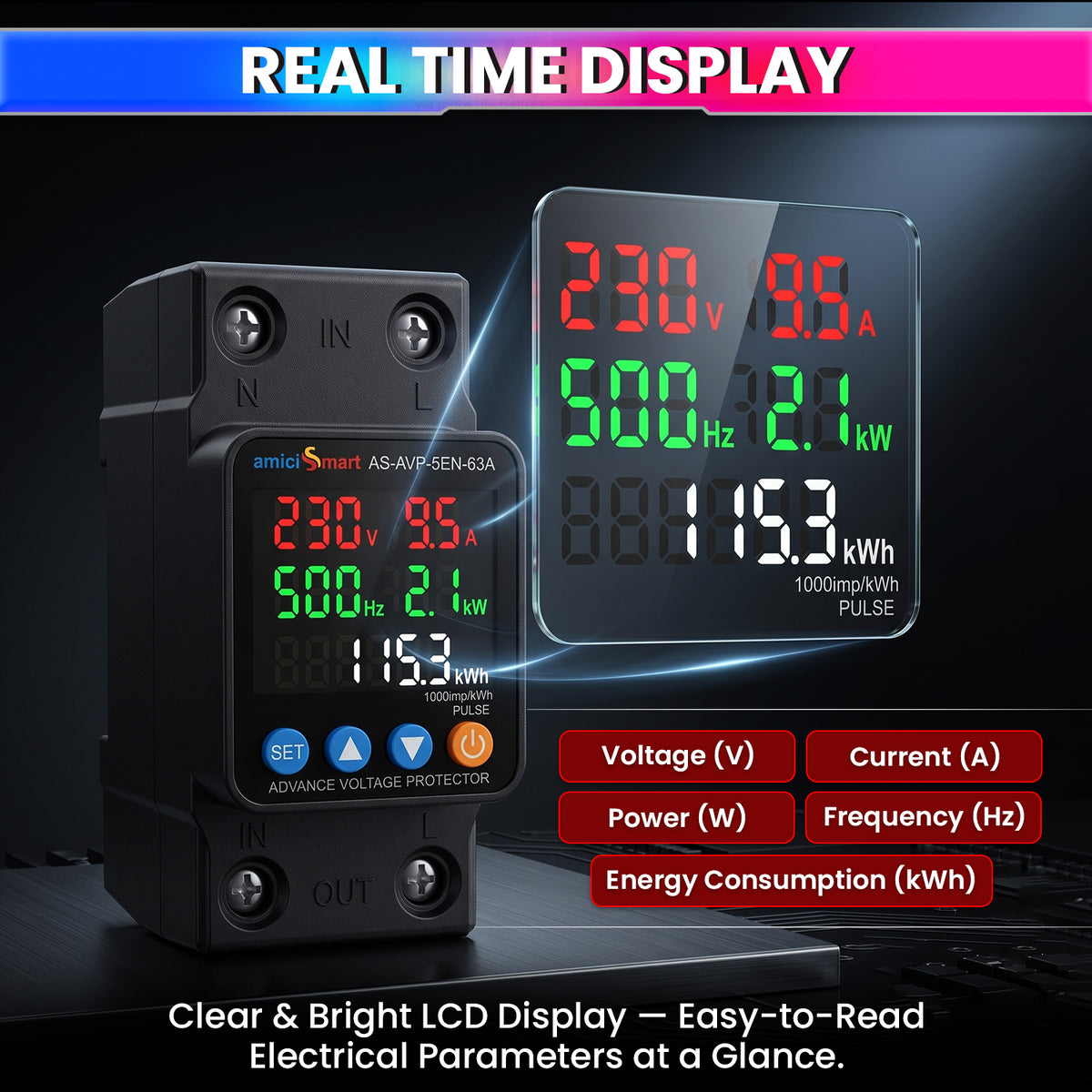

Five electrical readings
See voltage, current, power, frequency and accumulated energy on the front display.
-

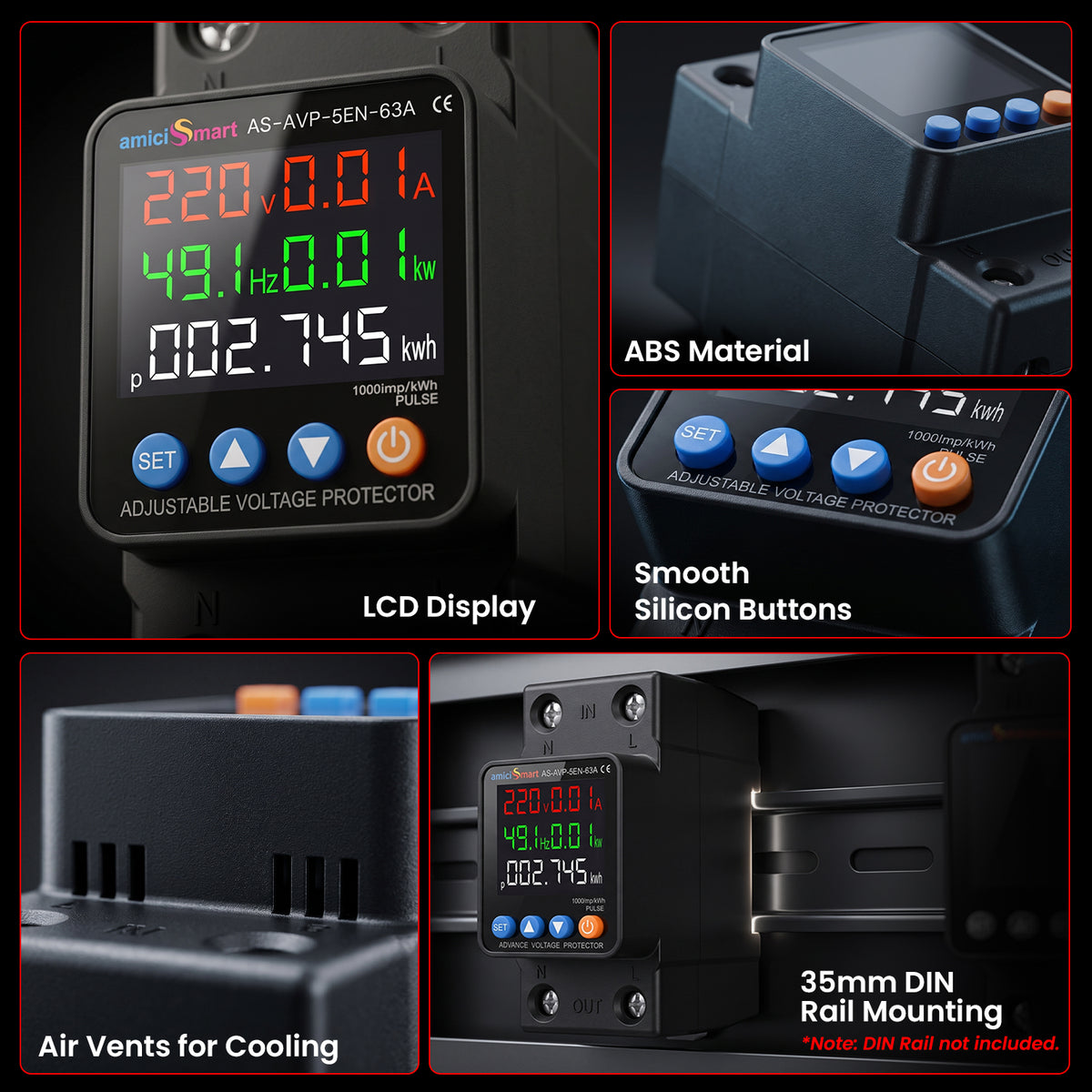

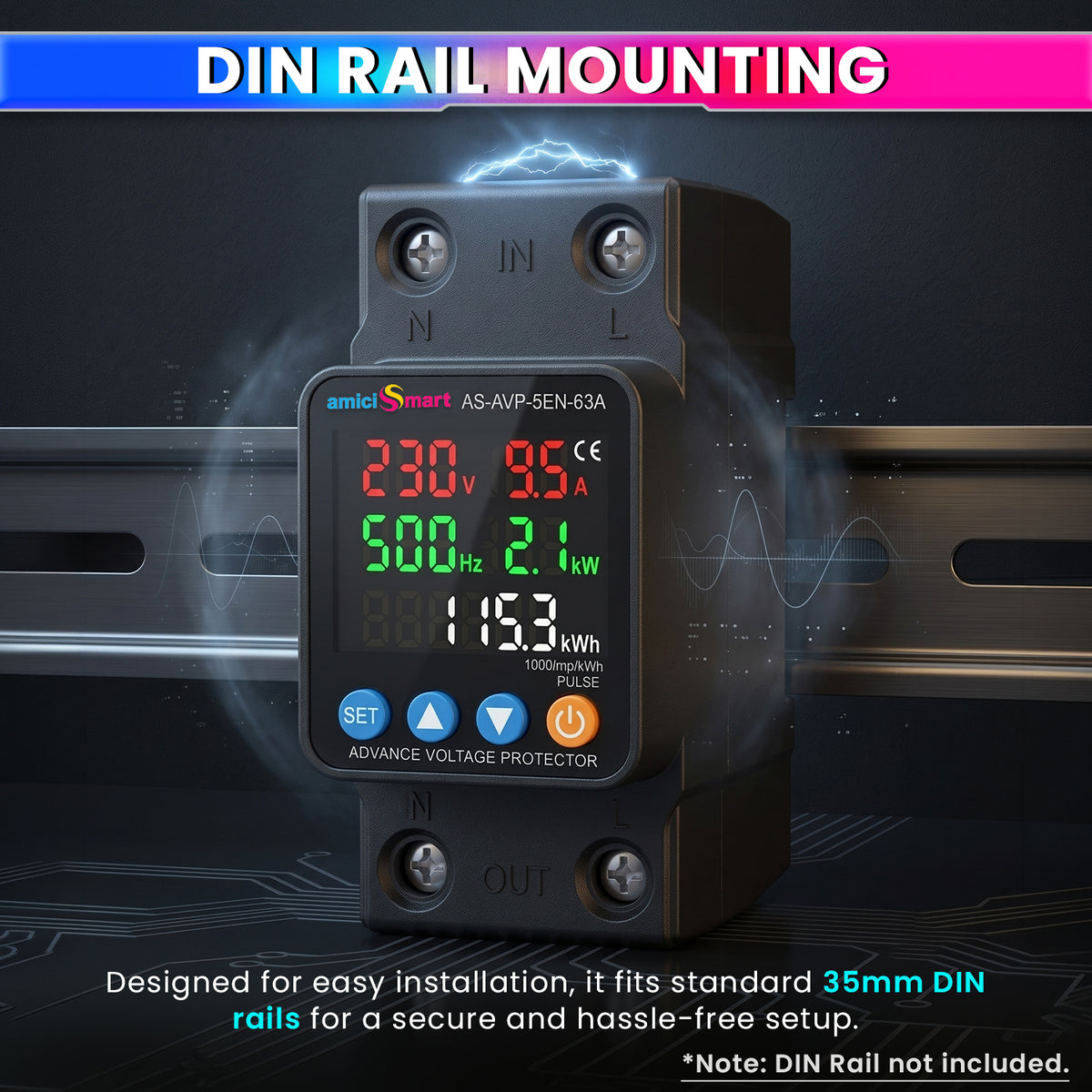

35mm DIN-rail mounting
Plan suitable enclosure space. DIN rail is not included.
Features that make it useful
-
Adjustable voltage limits
Set overvoltage from 130–300V and undervoltage from 80–210V.
-
Current control up to 63A
The listed overcurrent setting range is 0.1–63A.
-
Timing and recovery options
Configurable delays, timer ON/OFF and automatic reset support controlled operation.
How to use
-
Confirm circuit suitability
Check the model, supply, connected load and required protection with an electrician.
-
Install and configure
Follow the model instructions and terminal markings, then select suitable thresholds and delays.
-
Monitor the display
Review live readings and kWh consumption; investigate repeated trips before resetting.
5-in-1 Voltage Protector & Energy Meter
63A · Adjustable protection · kWh monitoring
New Launch

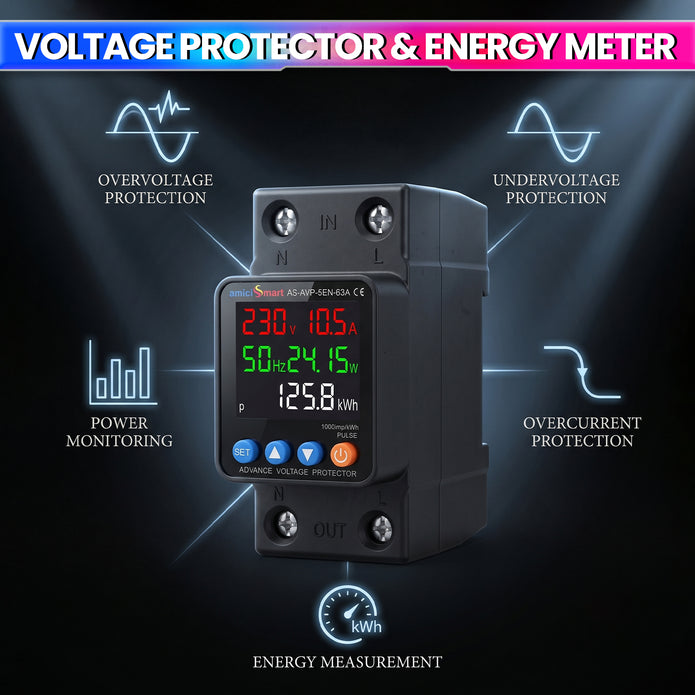

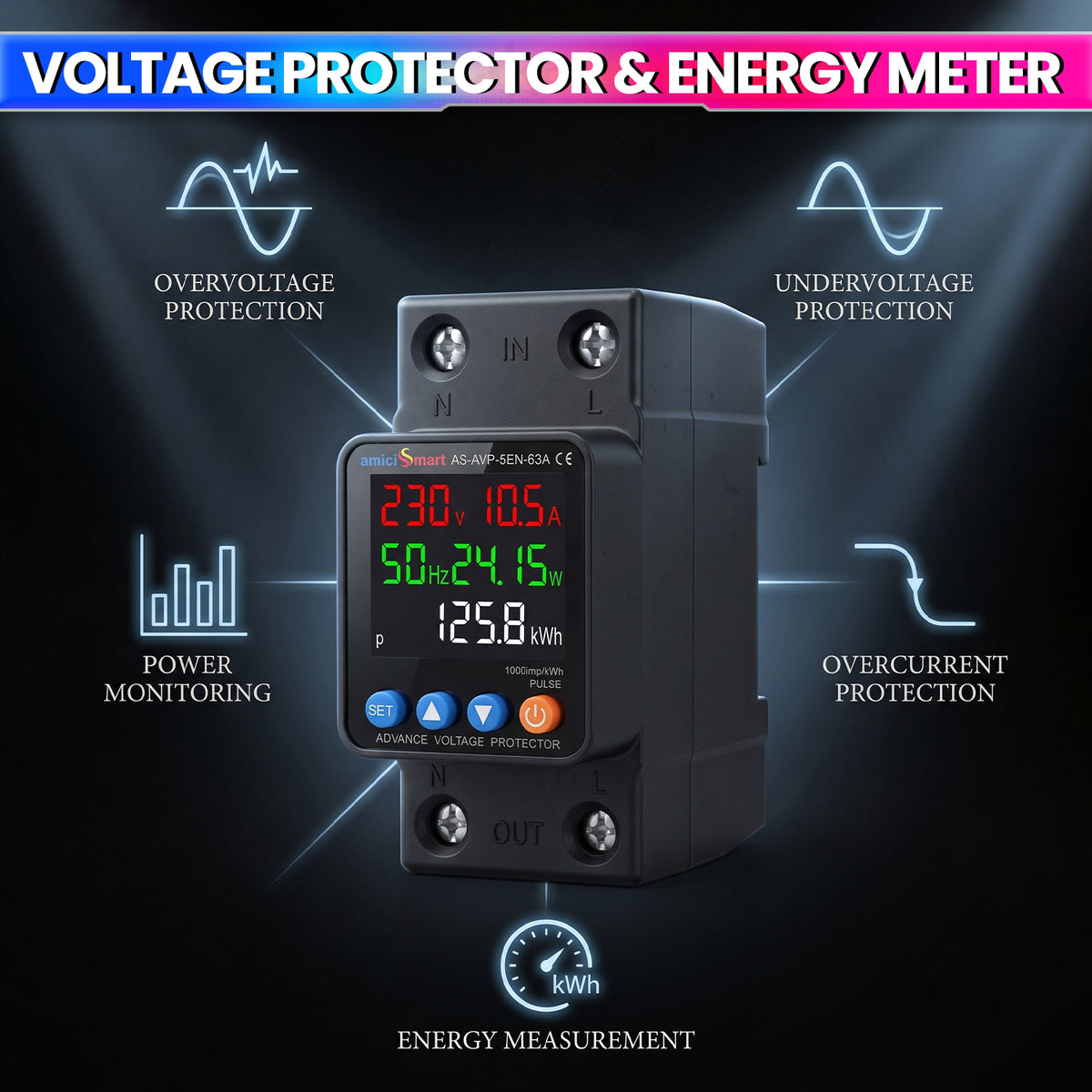

Monitor voltage, current, power, frequency and energy use while managing adjustable voltage and overcurrent limits in one DIN-rail device.
Sale price
Rs. 1,999.00
-56%
Regular price
Rs. 4,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,999.00
Unit price
Increments of 1
Minimum of 1
Maximum of
5-in-1 Smart Electrical Protection & Energy Meter Over/Under Voltage, 63A Overcurrent Protection
Sale price
Rs. 1,999.00
Regular price
Rs. 4,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,999.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos

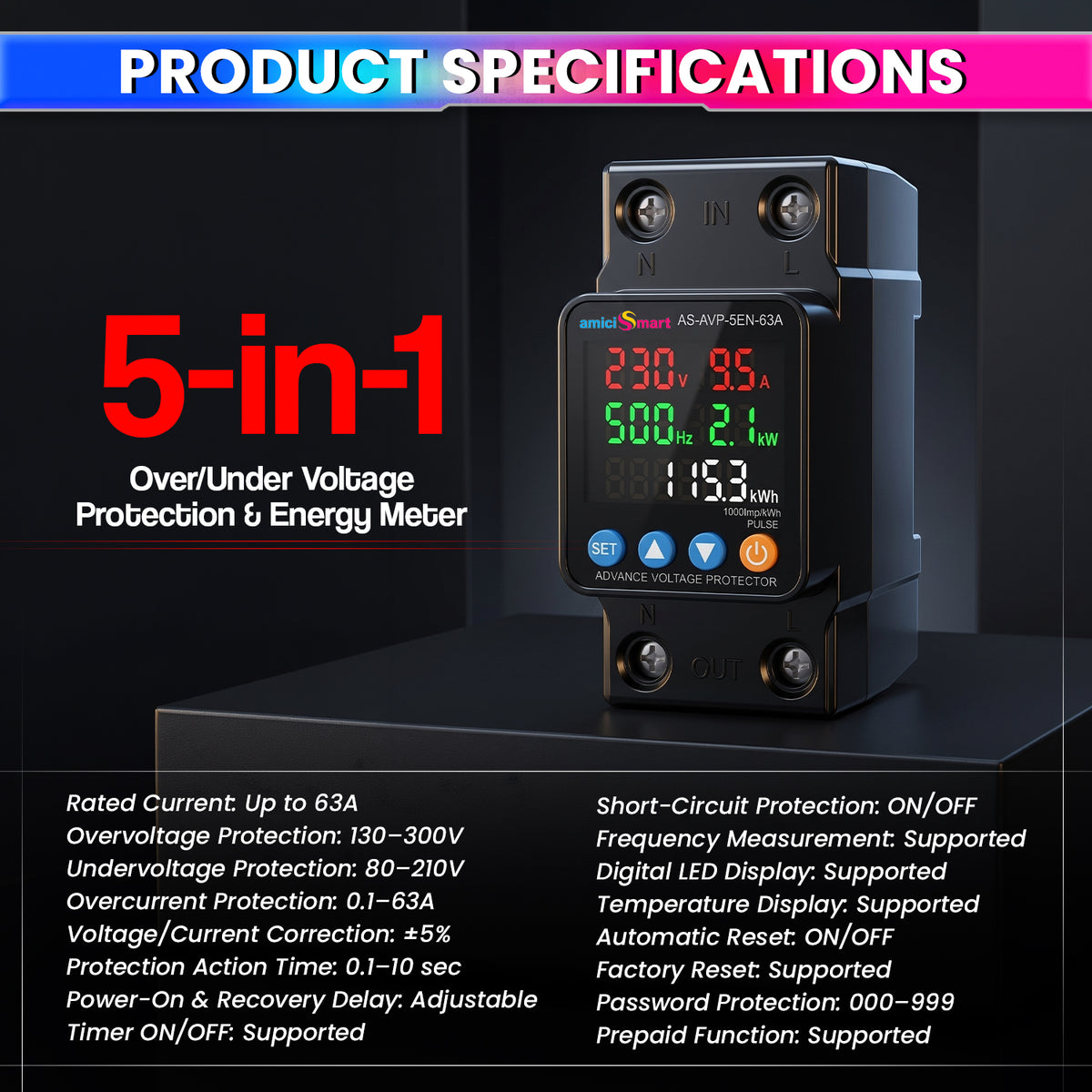

Specifications
| Country of Origin | India |
|---|---|
| Brand | amiciSmart |
| Model | AS-AVP-5EN-63A |
| Rated current | Up to 63A |
| Overvoltage threshold | 130–300V |
| Undervoltage threshold | 80–210V |
| Overvoltage recovery | 125–295V |
| Undervoltage recovery | 85–215V |
| Overcurrent setting | 0.1–63A |
| Voltage action time | 0.1–10 seconds |
| Overcurrent action time | 0.1–10 seconds |
| Voltage/current correction | ±5% |
| Power-on / recovery delays | Adjustable |
| Readings | Voltage, current, power, frequency and energy (kWh) |
| Mounting | 35mm DIN rail; rail not included |

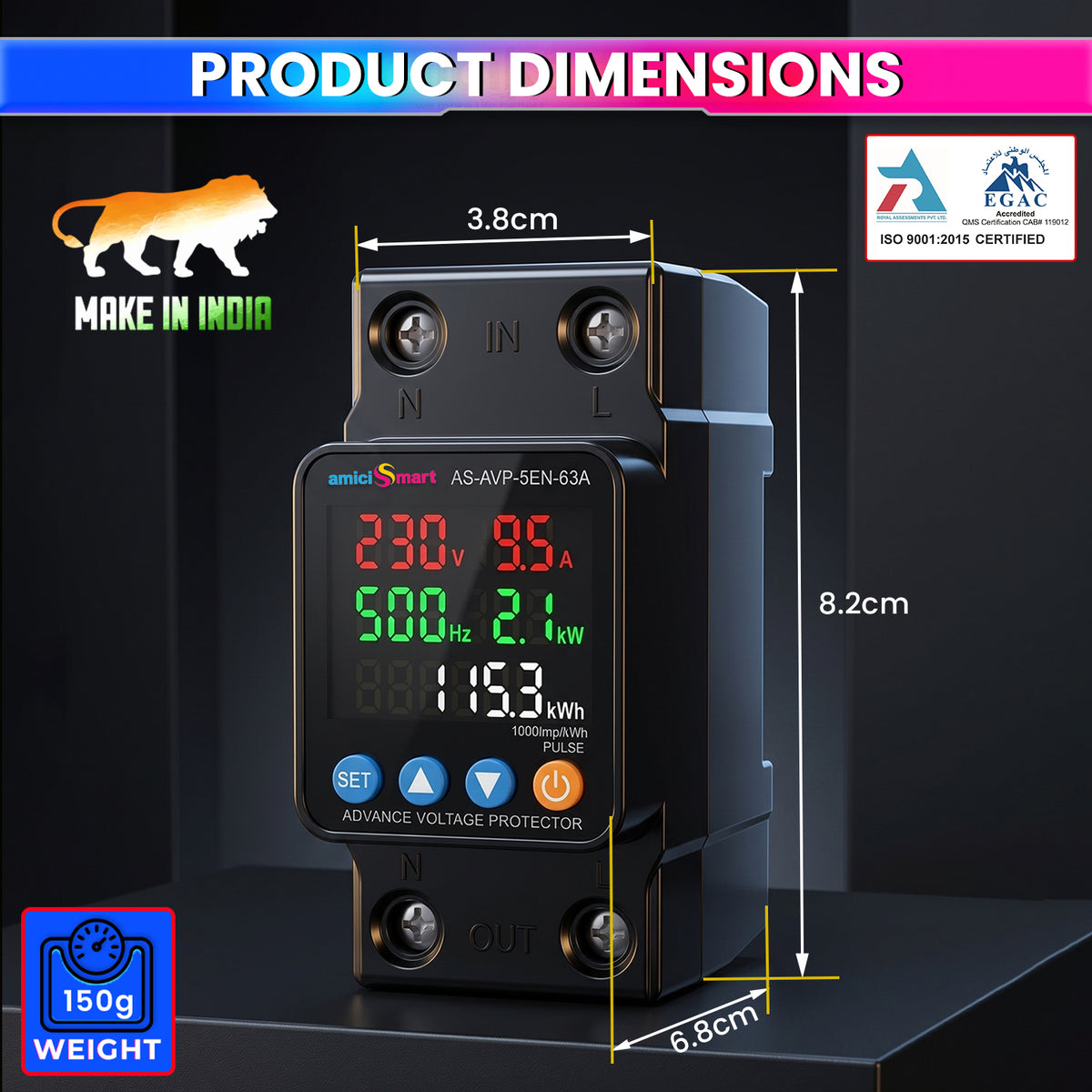

| Dimensions (graphic) | 8.2 × 3.8 × 6.8cm |
| Weight (graphic) | 150g |
| Timer ON/OFF | Supported |
| Automatic reset | ON/OFF selectable |
| Current counter / prepaid function | Listed as supported; operating details require model instructions |
| Short-circuit function | Listed as ON/OFF selectable; no breaking-capacity specification supplied |
| Temperature display / factory reset | Listed as supported |
| Password setting | 000–999 |
Frequently asked questions
What does the display measure?
Voltage, current, power, frequency and accumulated energy in kWh.
What voltage limits can I set?
Overvoltage is adjustable from 130–300V and undervoltage from 80–210V. The listed recovery ranges are 125–295V and 85–215V respectively.
What is the current setting range?
The existing specification and product graphic list 0.1–63A. Circuit and load suitability still need to be assessed for the installation.
Does it support timer and automatic recovery?
Timer ON/OFF, adjustable power-on and recovery delays, and selectable automatic reset are listed. Follow the instructions for this exact model when configuring them.
Does this replace an MCB or RCBO?
The available listing does not provide a short-circuit breaking-capacity specification or a replacement rating for an MCB/RCBO. Have an electrician determine the required circuit protection.
Is the DIN rail included?
No. The product graphic specifies standard 35mm DIN-rail mounting and states that the rail is not included.
Full Product Description

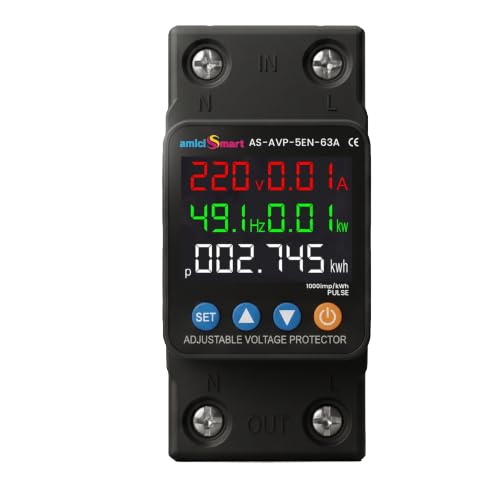

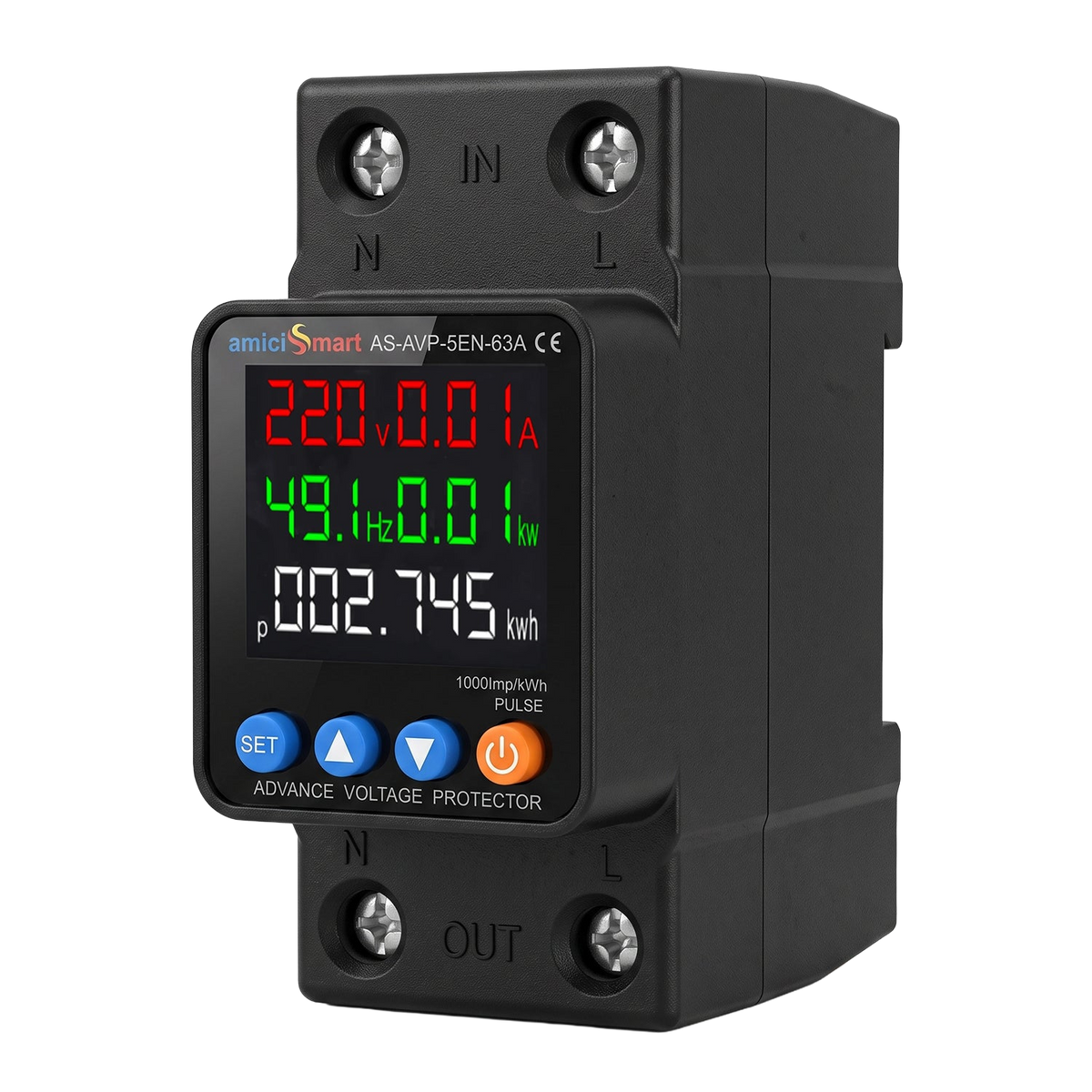

amiciSmart 5-in-1 Voltage Protector & Energy Meter
Monitor voltage, current, power, frequency and energy use while managing adjustable voltage and overcurrent limits in one DIN-rail device.
Adjustable protection and monitoring
Set voltage and overcurrent thresholds, monitor five electrical readings, and configure the listed timing and recovery functions for the installation.
- Brand: amiciSmart
- Model: AS-AVP-5EN-63A
- Rated current: Up to 63A
- Overvoltage threshold: 130–300V
- Undervoltage threshold: 80–210V
- Overvoltage recovery: 125–295V
- Undervoltage recovery: 85–215V
- Overcurrent setting: 0.1–63A
- Voltage action time: 0.1–10 seconds
- Overcurrent action time: 0.1–10 seconds
- Voltage/current correction: ±5%
- Power-on / recovery delays: Adjustable
- Readings: Voltage, current, power, frequency and energy (kWh)
- Mounting: 35mm DIN rail; rail not included
- Dimensions (graphic): 8.2 × 3.8 × 6.8cm
- Weight (graphic): 150g
- Timer ON/OFF: Supported
- Automatic reset: ON/OFF selectable
- Current counter / prepaid function: Listed as supported; operating details require model instructions
- Short-circuit function: Listed as ON/OFF selectable; no breaking-capacity specification supplied
- Temperature display / factory reset: Listed as supported
- Password setting: 000–999
Installation and model scope
For model AS-AVP-5EN-63A, SKU 1xOVRLOD-5IN1-IN. Have an electrician confirm circuit suitability and configuration. The listed short-circuit function does not establish a replacement rating for other required protective devices. Follow the instructions supplied for this model.
