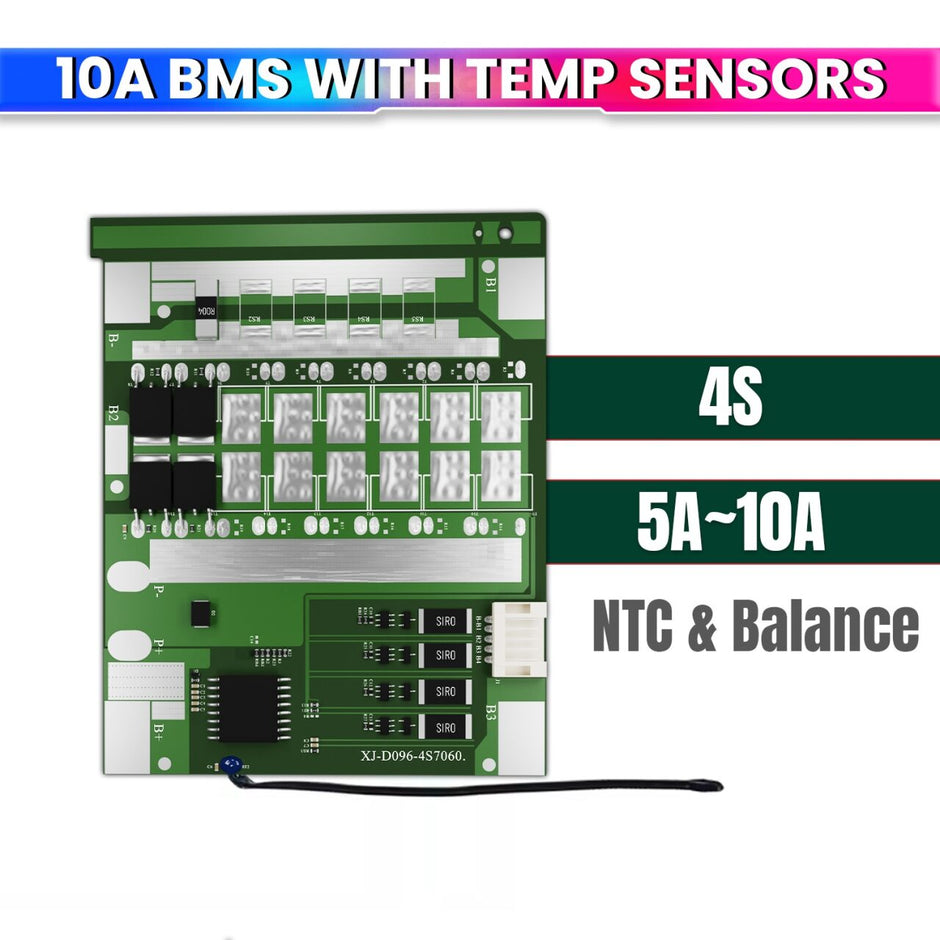

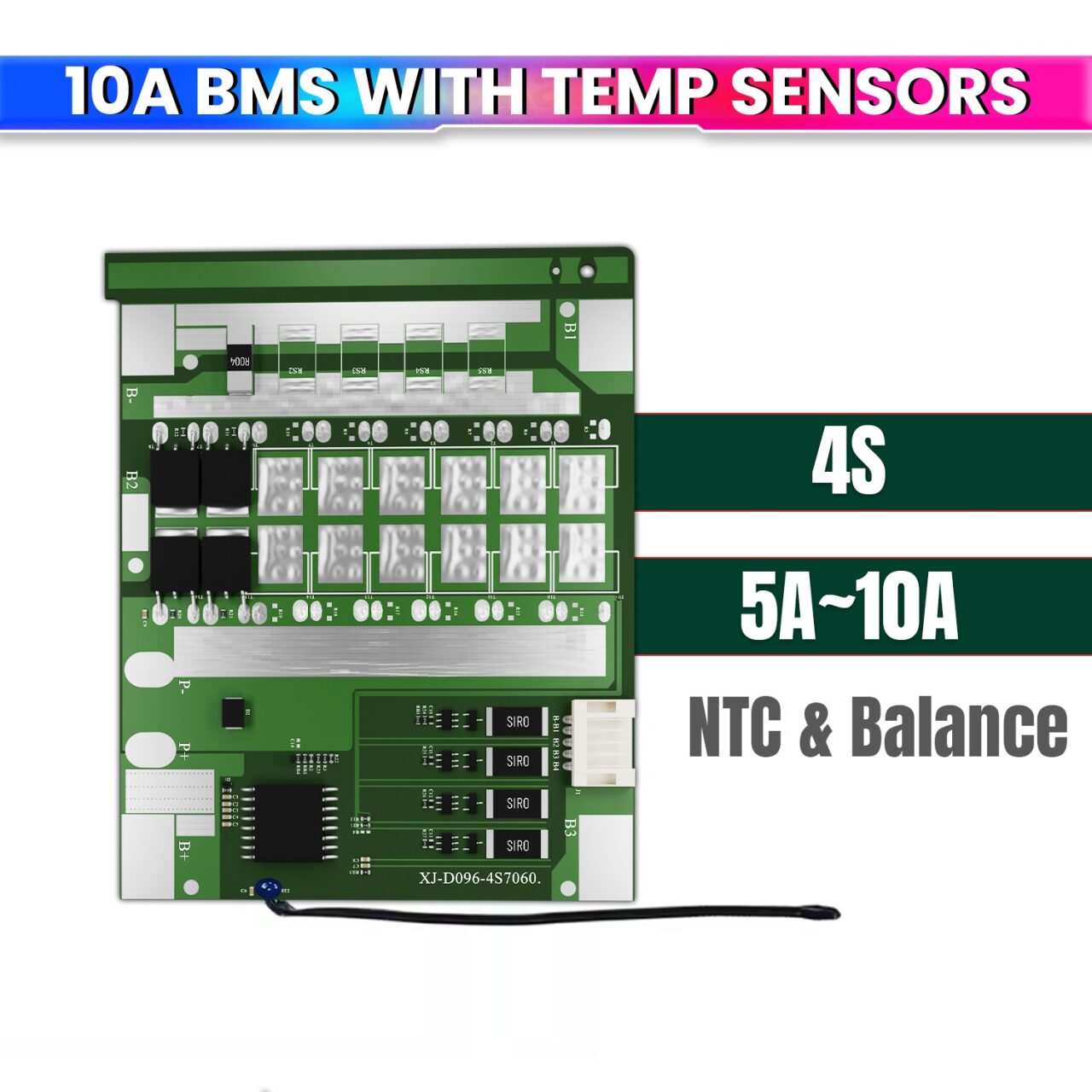

4S 12V 10A LiFePO4 BMS with NTC Sensors – Smart Battery Management System with 120A Protection & Cell Balancing

Stop worrying about battery failures — the 4S 12V LiFePO4 BMS is your all-in-one guardian that protects, balances, and extends the life of your LiFePO4 battery pack with intelligent, real-time management.

This Battery Management System is purpose-built for 4-cell (4S) LiFePO4 configurations with a 12.8V nominal voltage and up to 14.7V maximum charging voltage. It delivers 10A continuous charge/discharge current with a massive 120A peak overcurrent protection that kicks in within just 150ms — fast enough to shield your pack from sudden load spikes before any damage occurs. The ultra-low 30mΩ internal resistance ensures minimal energy loss, while the 40µA standby consumption means your battery won't self-drain during long storage periods.

What sets this BMS apart is its dual NTC thermal sensor system — automatically cutting off charging at 50°C (±5°C) and discharge at 70°C (±5°C), with self-recovery once temperatures normalise. Built-in passive cell balancing keeps all 4 cells in sync, preventing capacity drift and maximising overall pack lifespan. Whether you're building a solar storage system, e-bike battery, UPS backup, or portable power station, this BMS delivers the protection and reliability your application demands.

Backed by a 1-year warranty with dedicated Indian support from amiciKart (📞 980 970 9898 | ✉️ care@amicikart.com), free shipping across India, and same-day dispatch for orders before 2 PM — get your battery protection sorted today. ✅

• 🔋 Full 4S LiFePO4 Protection — guards against overcharge, over-discharge, overcurrent & short circuit for 4-cell (12.8V nominal) packs up to 14.7V max charging voltage, keeping your battery safe and healthy
• ⚡ High-Load Ready — supports 10A continuous charge/discharge with 120A peak overcurrent protection and an ultra-fast 150ms cutoff response, perfect for solar storage, e-bikes, UPS & portable power systems
• 🌡️ Smart NTC Thermal Sensors — automatic temperature protection cuts off charging at 50°C (±5°C) and discharging at 70°C (±5°C), with self-recovery once safe temperatures are restored — no manual reset needed
• ⚖️ Built-In Cell Balancing — actively equalises cell voltages during charge cycles to maximise pack capacity, extend battery lifespan, and prevent premature cell degradation
• 💤 Ultra-Low 40µA Standby Drain — with just 30mΩ internal resistance, this BMS sips power in idle mode so your battery stays charged during long storage periods without self-discharge worries
• 🚚 Free Pan-India Shipping | Same-Day Dispatch (orders before 2 PM) | COD Available | 30-Day Easy Returns — delivered across India in 3–5 business days
• ✅ 1-Year Warranty with Local Indian Support — claim hassle-free at 980 970 9898 or care@amicikart.com; backed by amiciKart's trusted after-sales service
