4-Channel Optocoupler Isolation & Level Converter Module, 3.3–24V Input to 3–30V Output

4 CHANNELS. ISOLATION + LEVEL CONVERSION. ONE COMPACT MODULE.

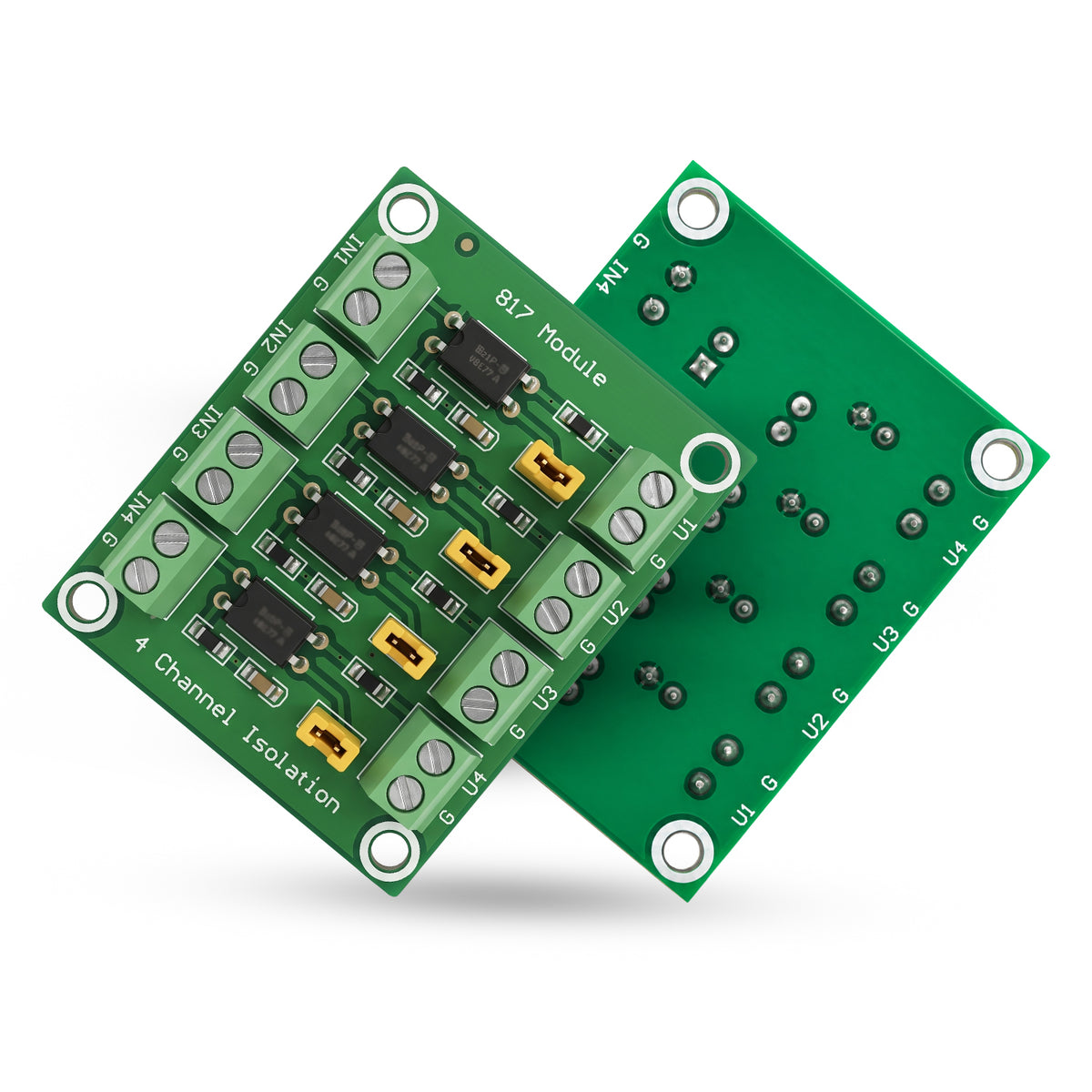

The amiciTech 4-Channel Optocoupler Isolation & Level Conversion Module is designed for applications where you need to isolate control signals and convert between different voltage levels.

With four independent channels, the module can handle separate digital, pulse or logic signals while providing photoelectric isolation between the input and output sides.

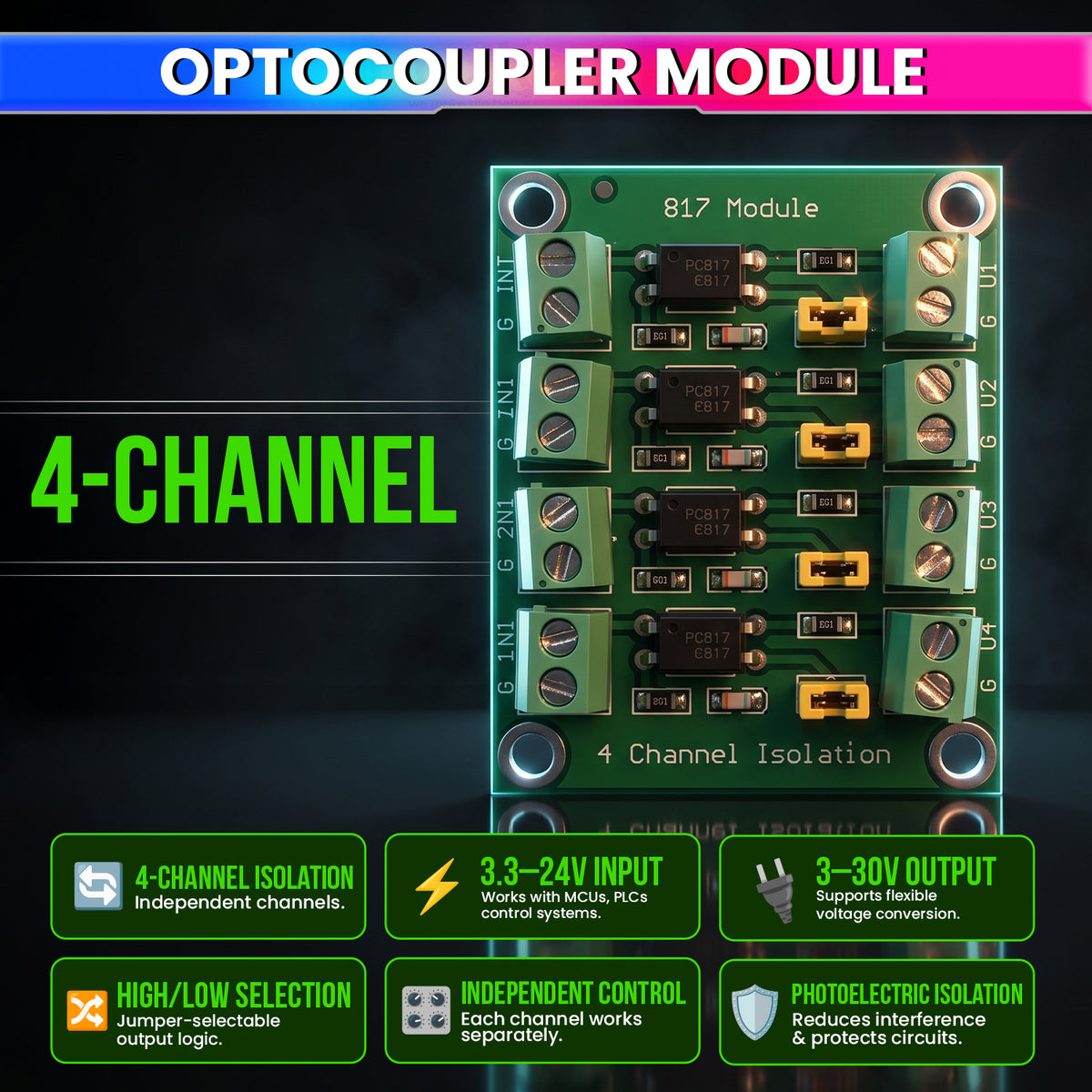

OPTOCOUPLER-BASED ISOLATION

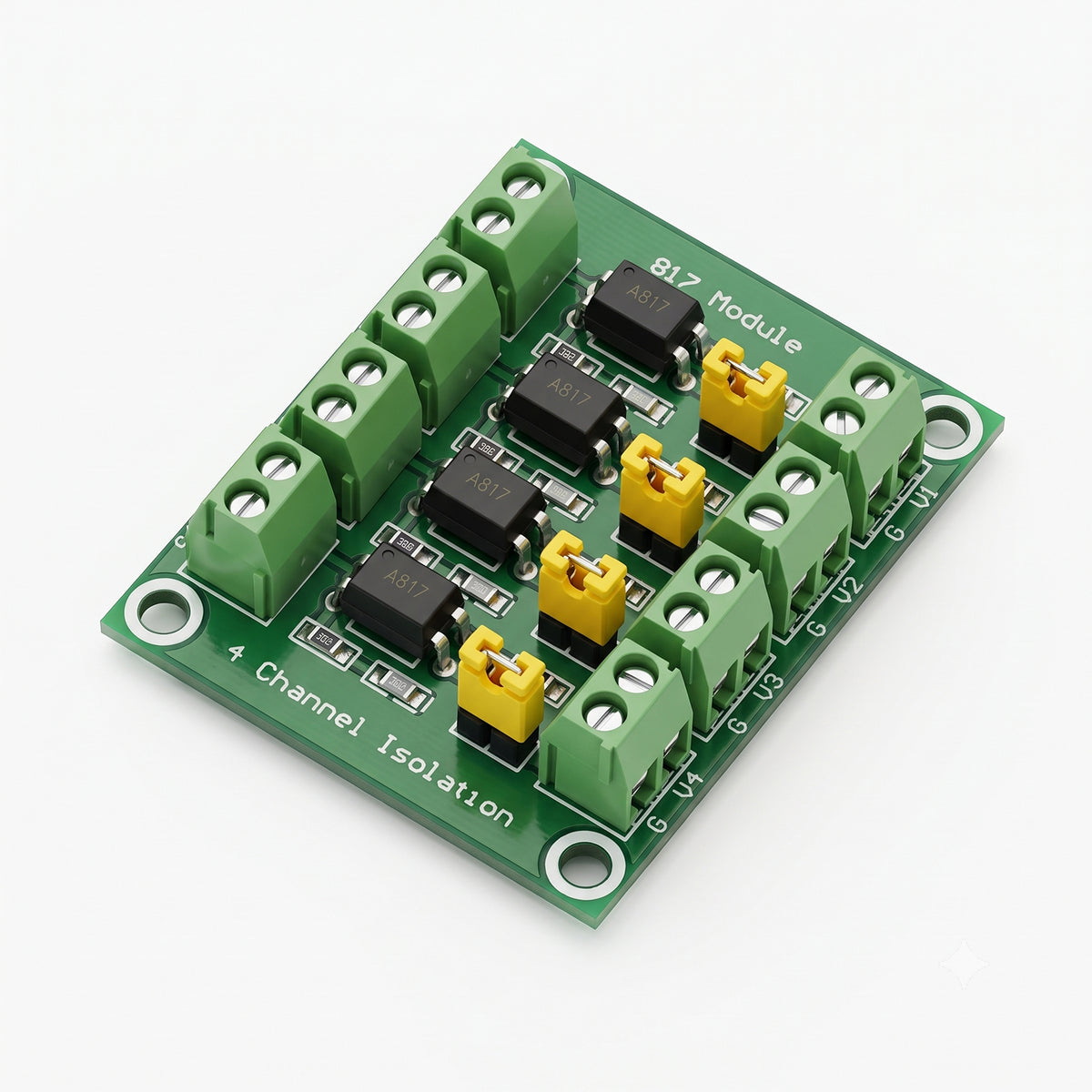

Each channel uses an 817 series optocoupler to provide photoelectric isolation between the input and output sides.

This helps separate the control circuit from the output circuit and provides anti-interference functionality for compatible applications.


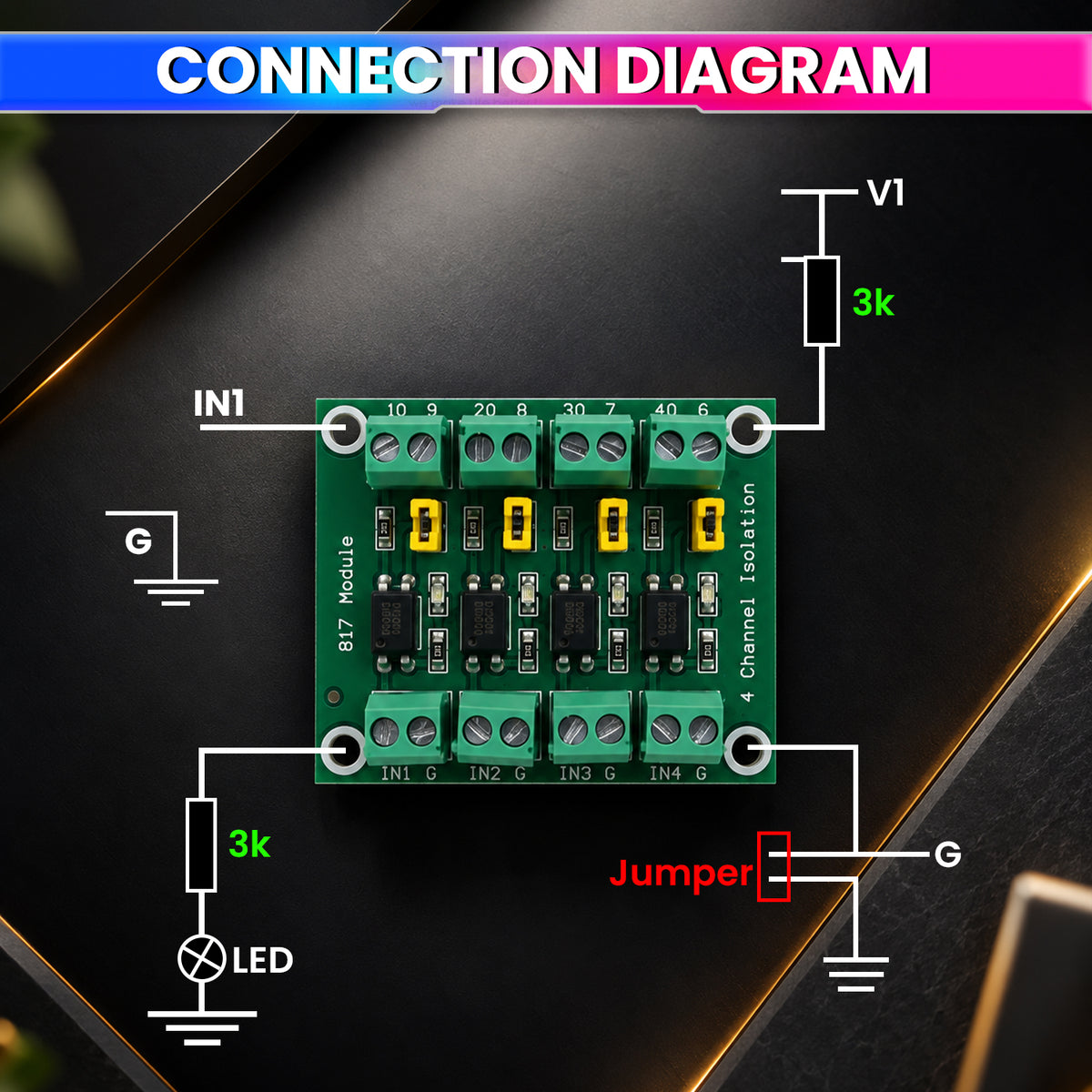

WHY USE THIS MODULE?

If your project involves different control voltages, signal isolation or interfacing between separate control circuits, this module combines both functions in a single board.

It can be used for signal interfacing with:

MCU • PLC • Arduino • Sensors • Inverters • Motor-Control Systems

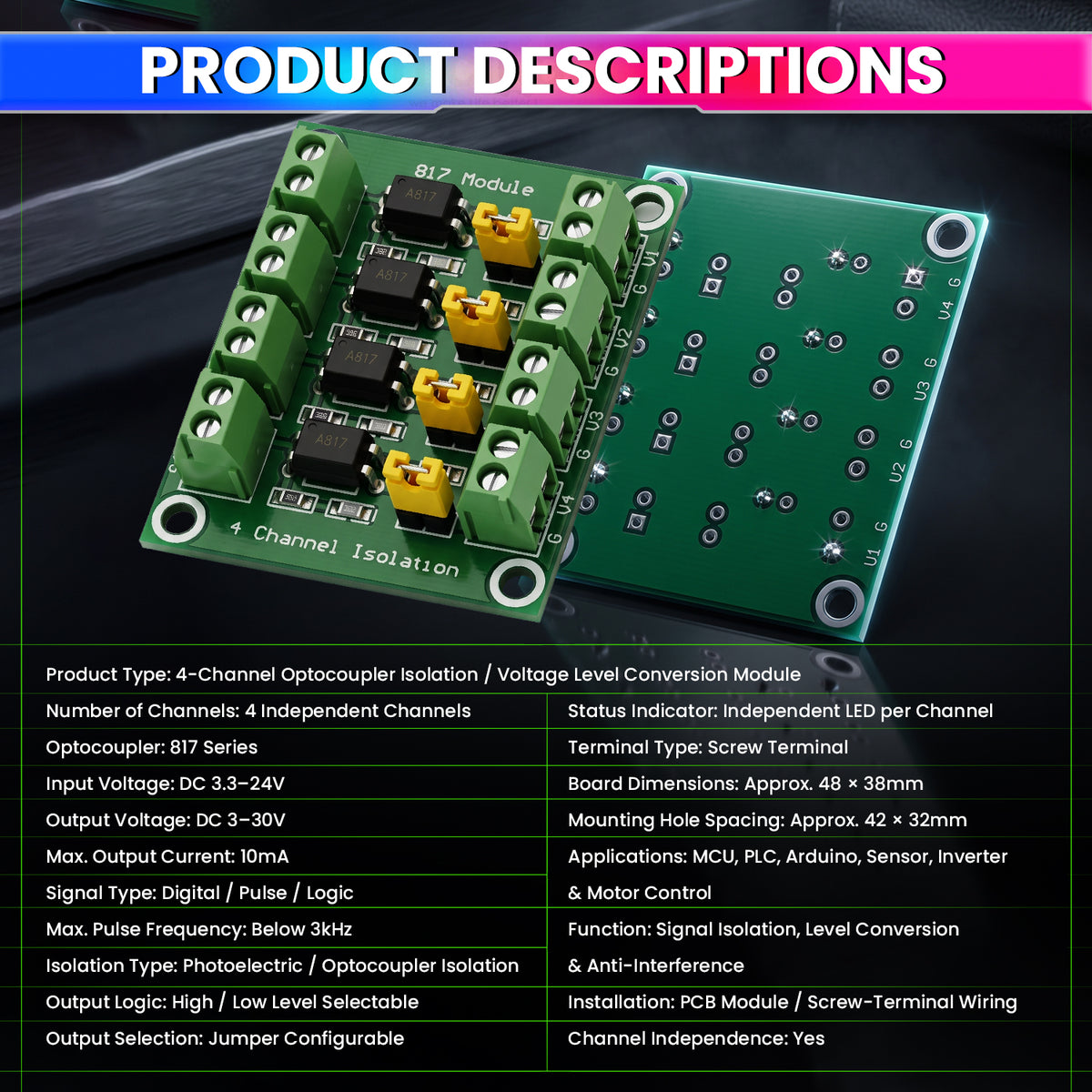

Specification
Product Type:- 4 Channel Optocoupler Isolation / Voltage Level Conversion Module
Number of Channels:- 4 Independent Channels
Optocoupler:- 817 Series
Input / Drive Voltage:- DC 3.3–24V
Output Voltage Range:- DC 3–30V
Maximum Output Current:- 10mA
Signal Type:- Digital / Pulse / Logic Signal
Maximum Recommended Pulse Frequency:- Below 3kHz
Isolation Type:- Photoelectric / Optocoupler Isolation
Output Logic:- High-Level or Low-Level Selectable
Output Selection:- Jumper Configurable
Channel Independence:- Yes
Status Indicator:- Independent LED indicator per channel
Input/Output Isolation:- Yes

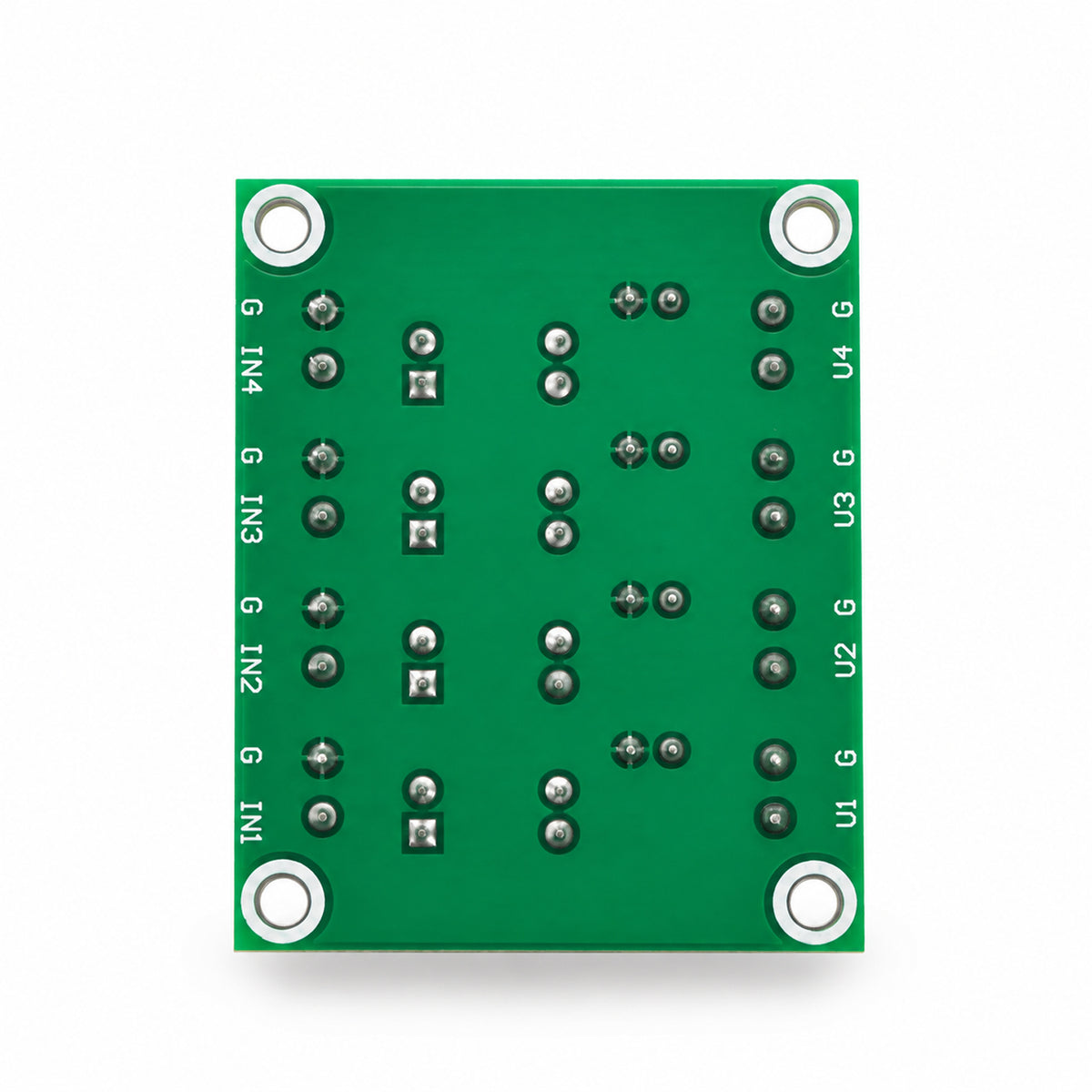

Terminal Type:- Screw Terminal

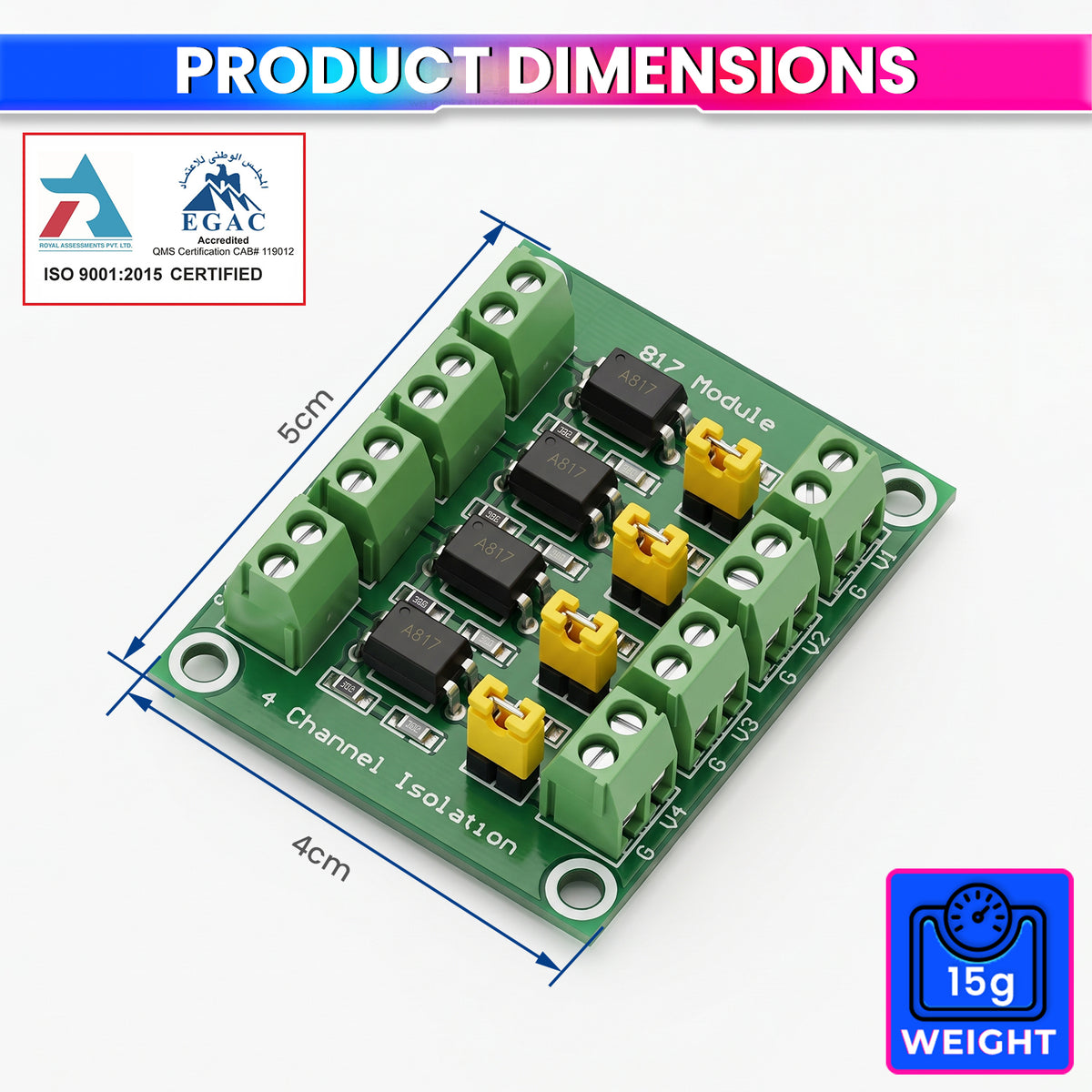

Board Dimensions:- Approximately 48 × 38mm
Mounting Hole Spacing:- Approximately 42 × 32mm
Application:- MCU, PLC, Arduino, sensor, inverter, motor-control and voltage-level conversion
Function:- Signal Isolation, Level Conversion and Anti-Interference
Installation:- PCB Module / Screw-Terminal Wiring


APPLICATIONS

MCU Interface • PLC Interface • Arduino Projects • Sensor Signals • Inverter Control • Motor Control • Signal Isolation • Voltage-Level Conversion • Digital Signal Interfacin
