Know before you buy
-
For 16S packs
Balances all 16 cells in series.
-
Up to 2A balancing current
Inductive transfer between cells.
-
Starts at 20mV or more (±5mV)
Activates automatically when cells drift apart.
-
3.0V–4.2V per cell
For LiFePO4 (LFP), Li-ion and LTO cells whose working voltage stays inside this window.
Features that make it useful
-

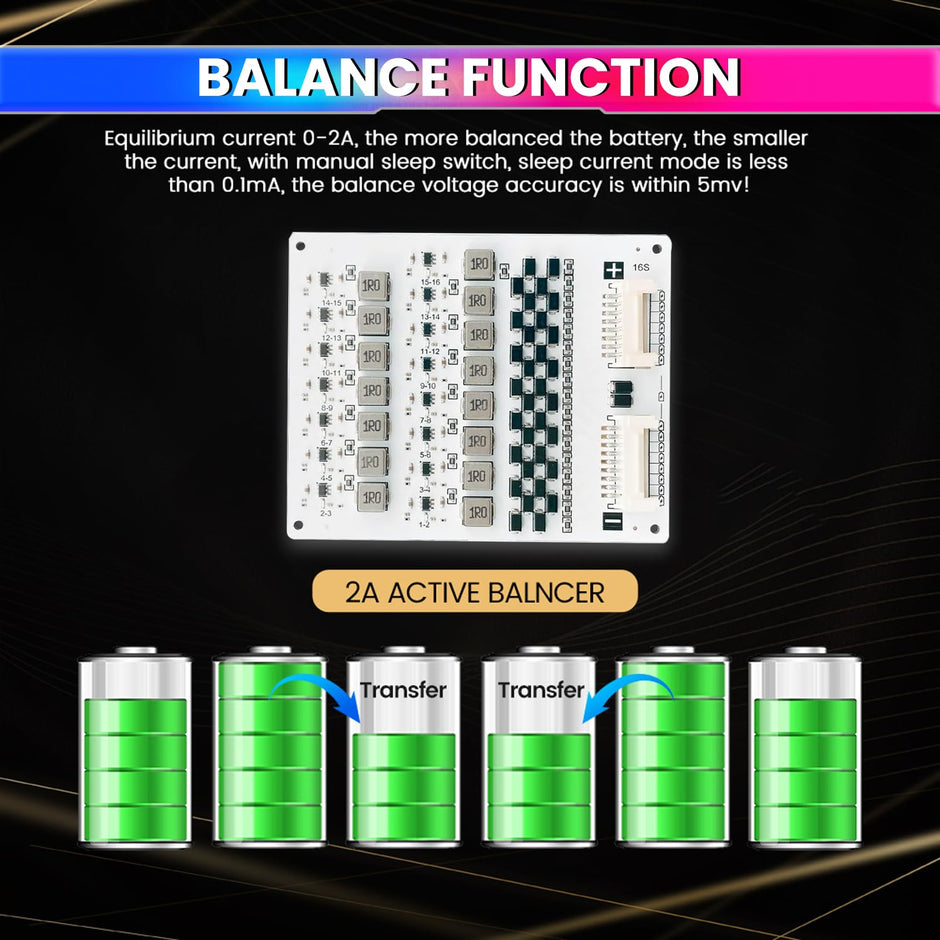

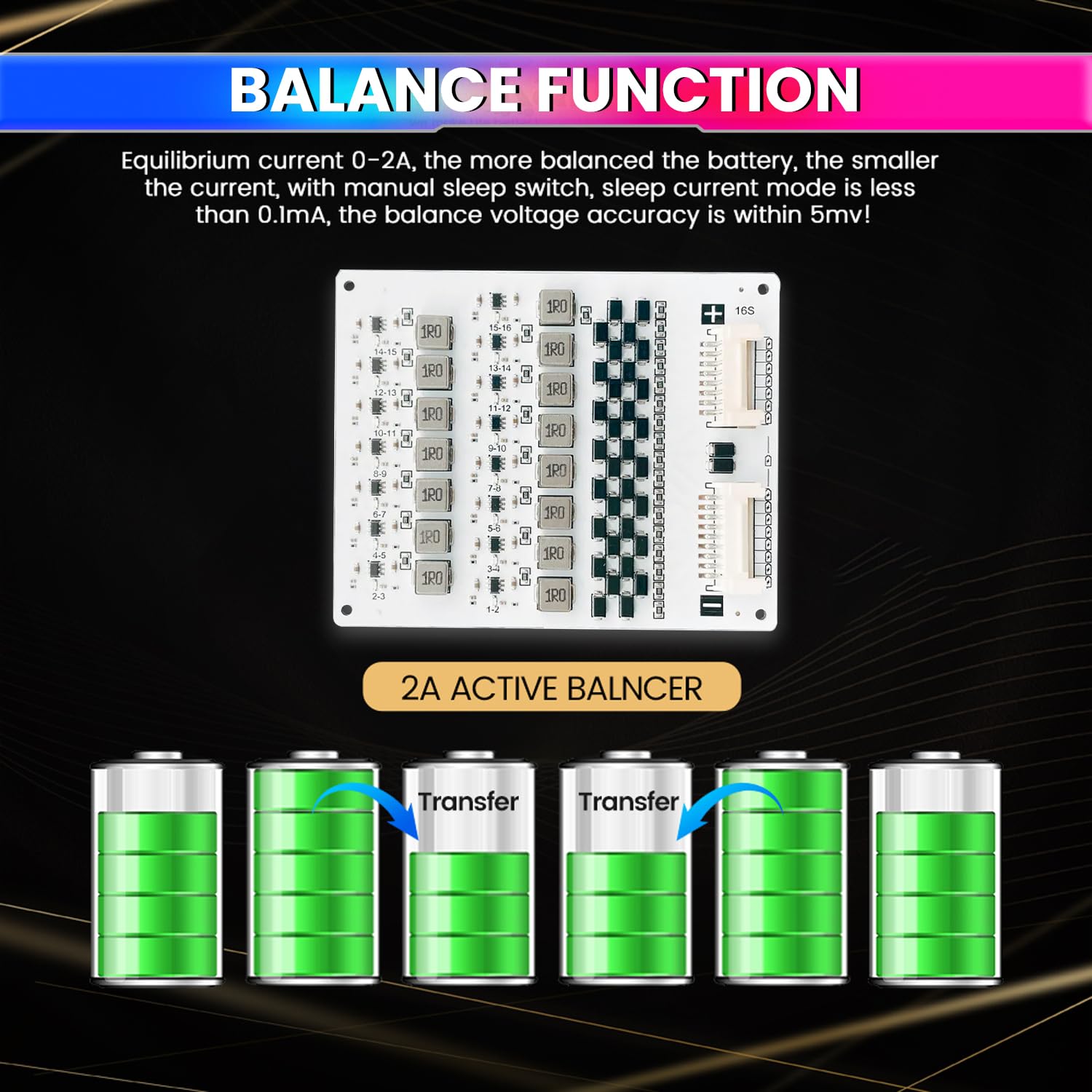

Active, not passive
Moves energy from higher-voltage cells to lower ones instead of burning it off as heat.
-
-15°C to 65°C
Also rated for 10%–70% humidity.
-
Works alongside your BMS
It balances cells; it does not replace a BMS.
-
1-year warranty
amiciKart support.
How to use
-
Disconnect charger and loads
Work on the pack with everything disconnected.
-

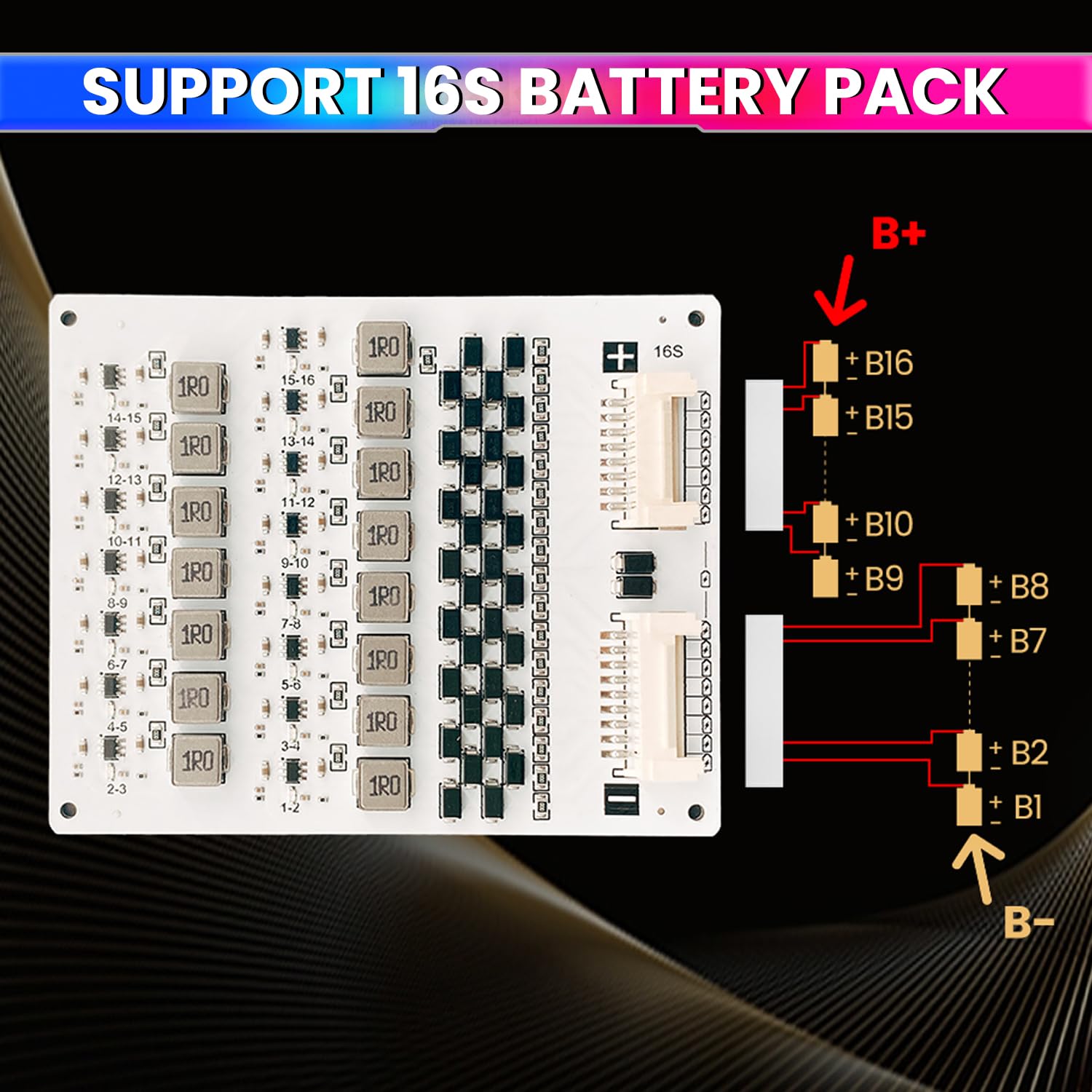

Connect the balance leads in order
Wire each lead to its cell in the order marked on the board, and check each with a multimeter before plugging in. A wrong or shorted lead can damage the board and the cells.
-
Mount and monitor
Fix the board where air can reach it and check cell voltages after the first charge.

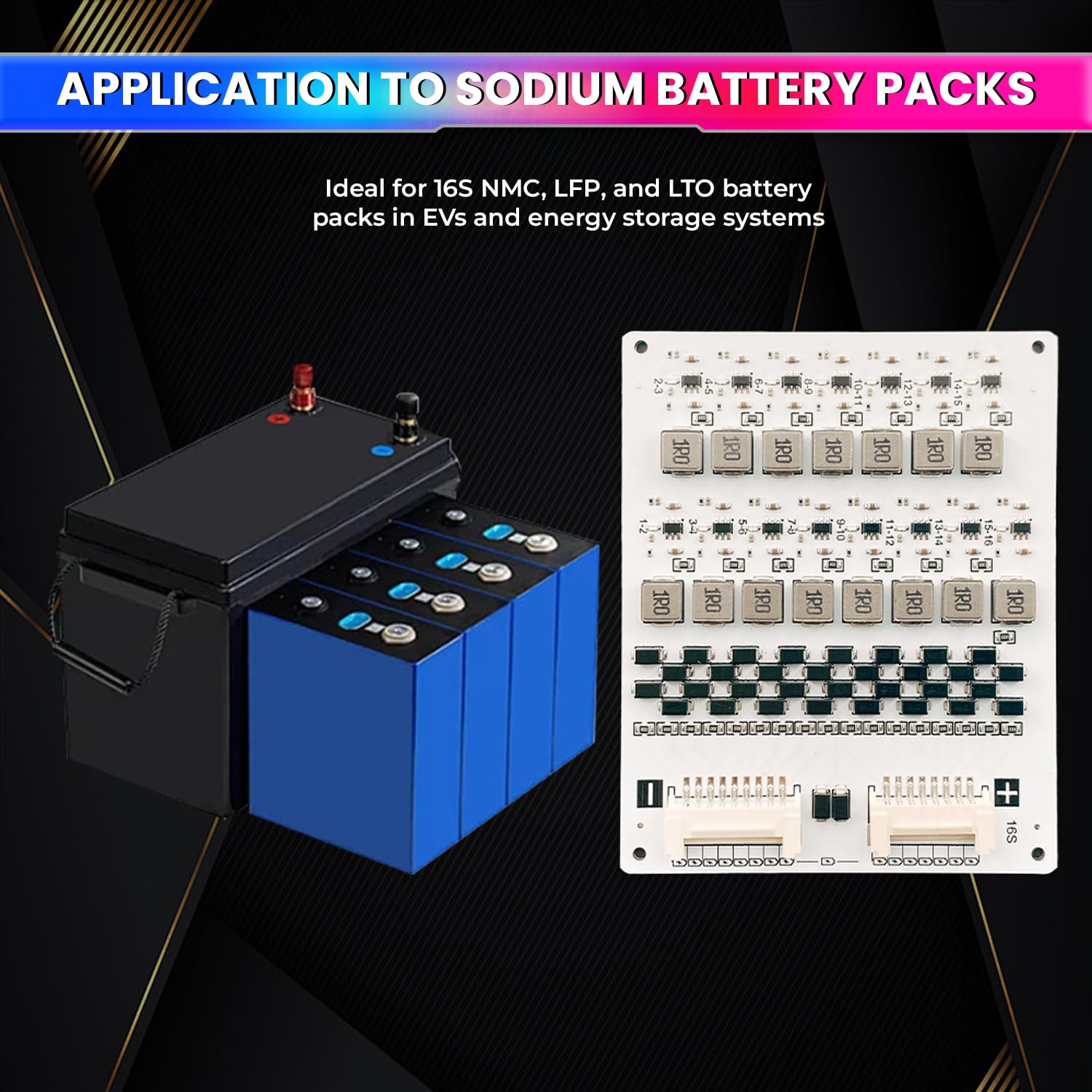

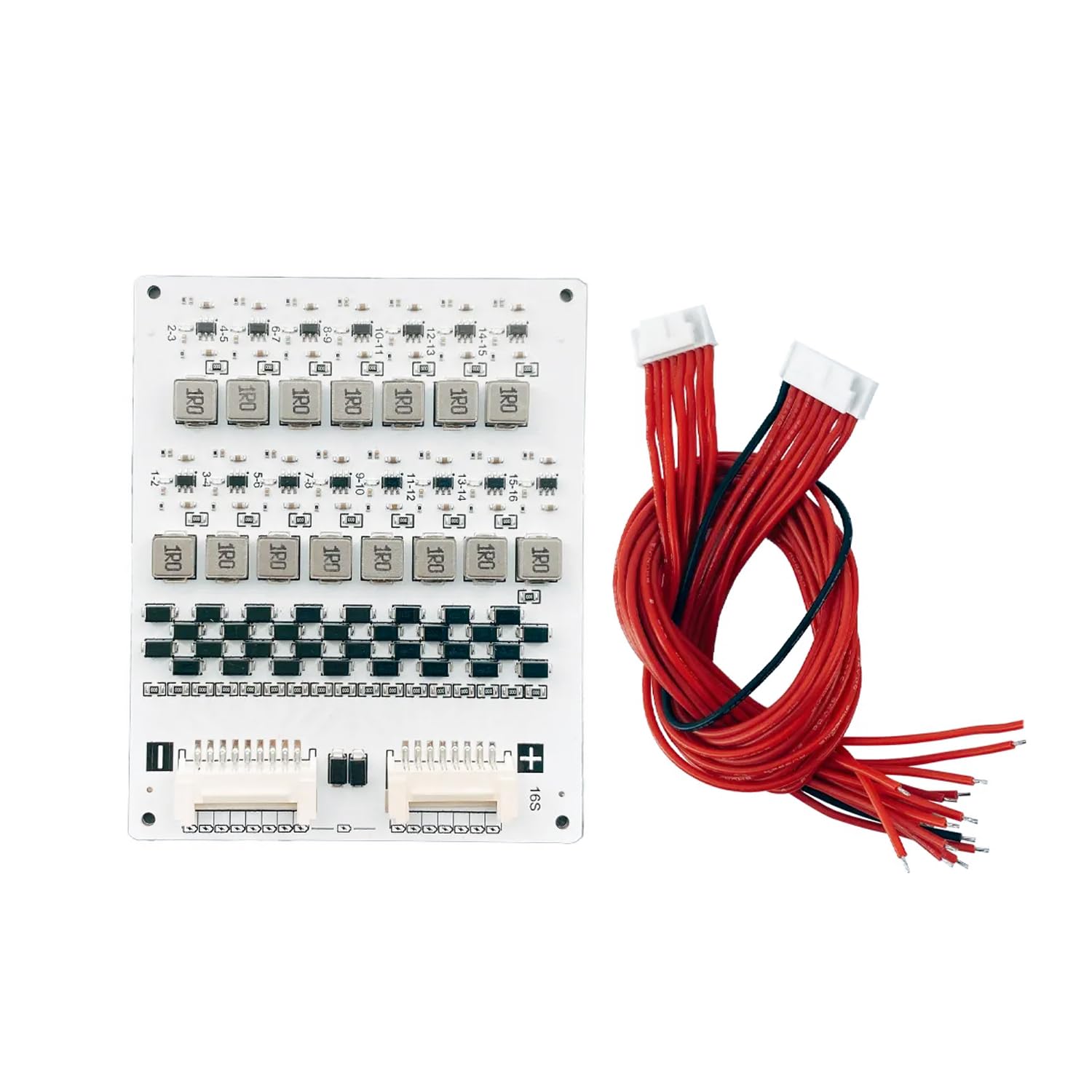

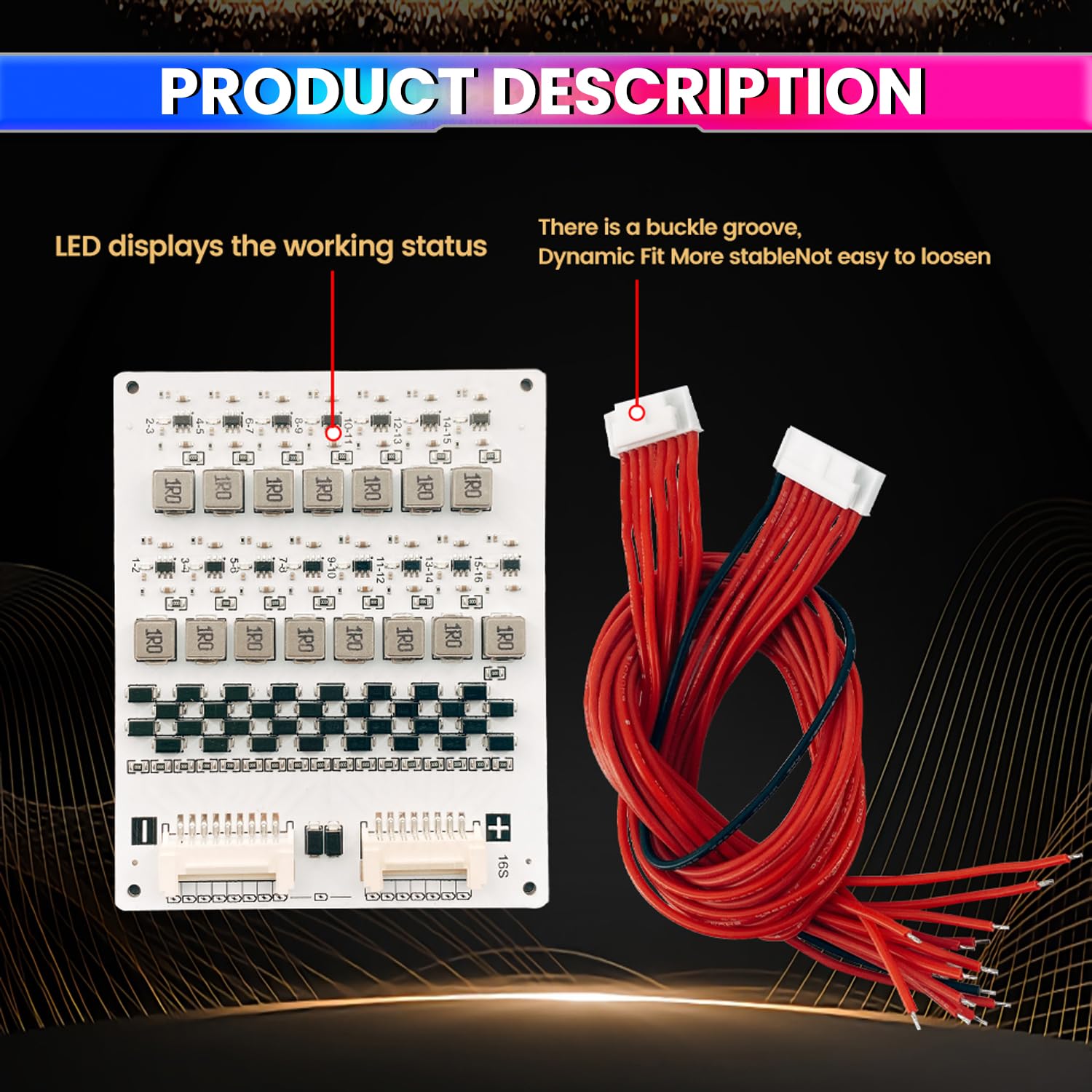

16S 2A Active Balancer, Inductive, LiFePO4 / Li-ion / LTO, 3.0V–4.2V per Cell
amiciKart · 16S packs · inductive active balancing up to 2A · starts at 20mV or more (±5mV) · 3.0V–4.2V per cell · LiFePO4 (LFP), Li-ion, LTO
A 16S inductive active balancer that moves energy from higher-voltage cells to lower ones at up to 2A instead of burning it off as heat. It supports LiFePO4 (LFP), Li-ion and LTO cells within a 3.0V–4.2V per-cell window, and starts balan...
Sale price
Rs. 2,199.00
-38%
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,199.00
Unit price
Increments of 1
Minimum of 1
Maximum of

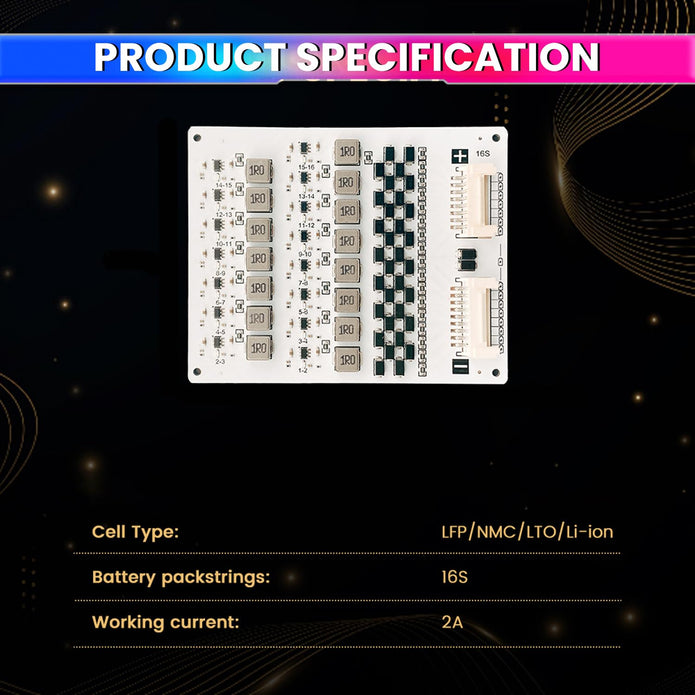

16S 2A Active Energy Balancer Board – Inductive Voltage Energy Equalization for LiFePO4 / Li-ion / LTO Battery Packs (3.0V–4.2V per Cell)
Sale price
Rs. 2,199.00
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,199.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

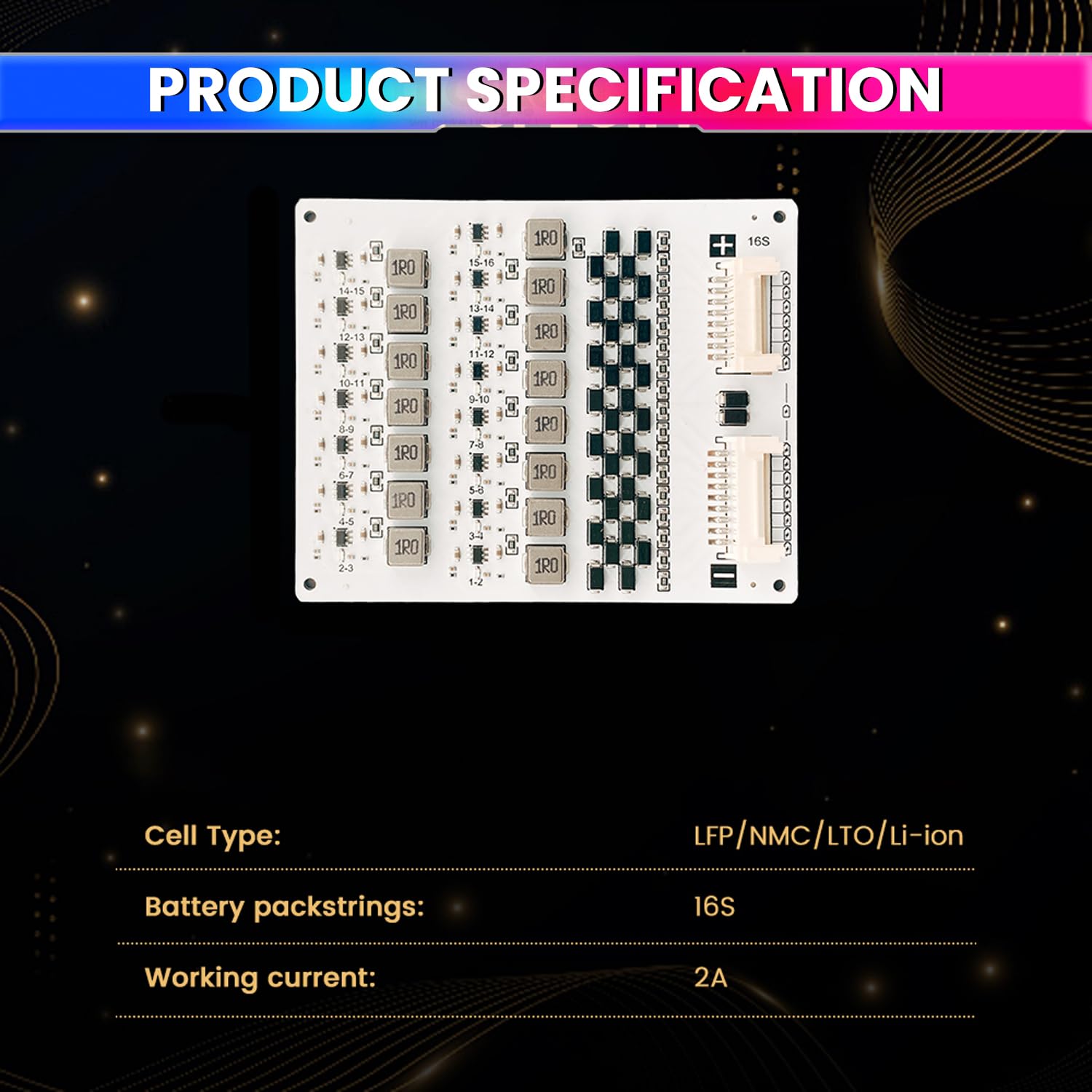

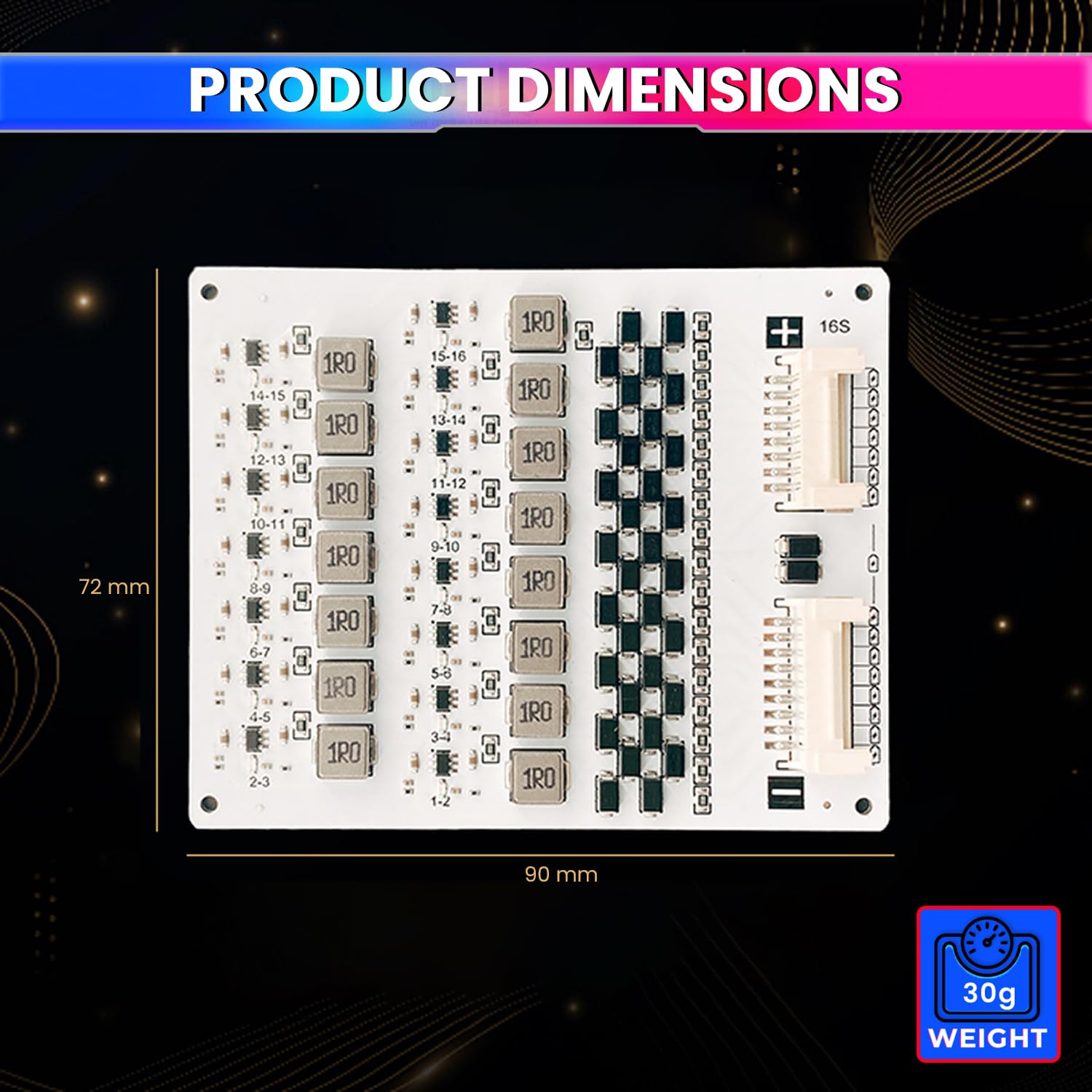

Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xBAL-16S-2A |
| Type | Inductive active balancer |
| Cell count | 16S |
| Balancing current | Up to 2A |
| Start threshold | 20mV or more (±5mV) |
| Cell voltage window | 3.0V–4.2V per cell |
| Chemistries | LiFePO4 (LFP), Li-ion, LTO |
| Operating temperature | -15°C to 65°C |
| Humidity | 10%–70% |
| Warranty | 1 year |
Frequently asked questions
Which battery types does it support?
LiFePO4 (LFP), Li-ion and LTO cells, as long as each cell's working voltage stays within 3.0V–4.2V.
When does it start balancing?
When the difference between cells reaches 20mV or more (±5mV).
Is it a BMS?
No. It balances cell voltages but does not protect against over-charge, over-discharge or short circuit. Use it together with a suitable BMS.
Full Product Description
16S 2A Active Balancer, Inductive, LiFePO4 / Li-ion / LTO, 3.0V–4.2V per Cell
A 16S inductive active balancer that moves energy from higher-voltage cells to lower ones at up to 2A instead of burning it off as heat. It supports LiFePO4 (LFP), Li-ion and LTO cells within a 3.0V–4.2V per-cell window, and starts balancing automatically when cells differ by 20mV or more (±5mV). Rated for -15°C to 65°C and 10%–70% humidity. It is a balancer, not a BMS. 1-year warranty.
- Active, not passive: Moves energy from higher-voltage cells to lower ones instead of burning it off as heat.
- -15°C to 65°C: Also rated for 10%–70% humidity.
- Works alongside your BMS: It balances cells; it does not replace a BMS.
- 1-year warranty: amiciKart support.
Important: Disconnect the charger and loads before fitting. Connect the balance leads in the marked order, check each with a multimeter, and never short cell leads. This board balances cells; use a suitable BMS for over-charge, over-discharge and short-circuit protection, and fuse the pack.
