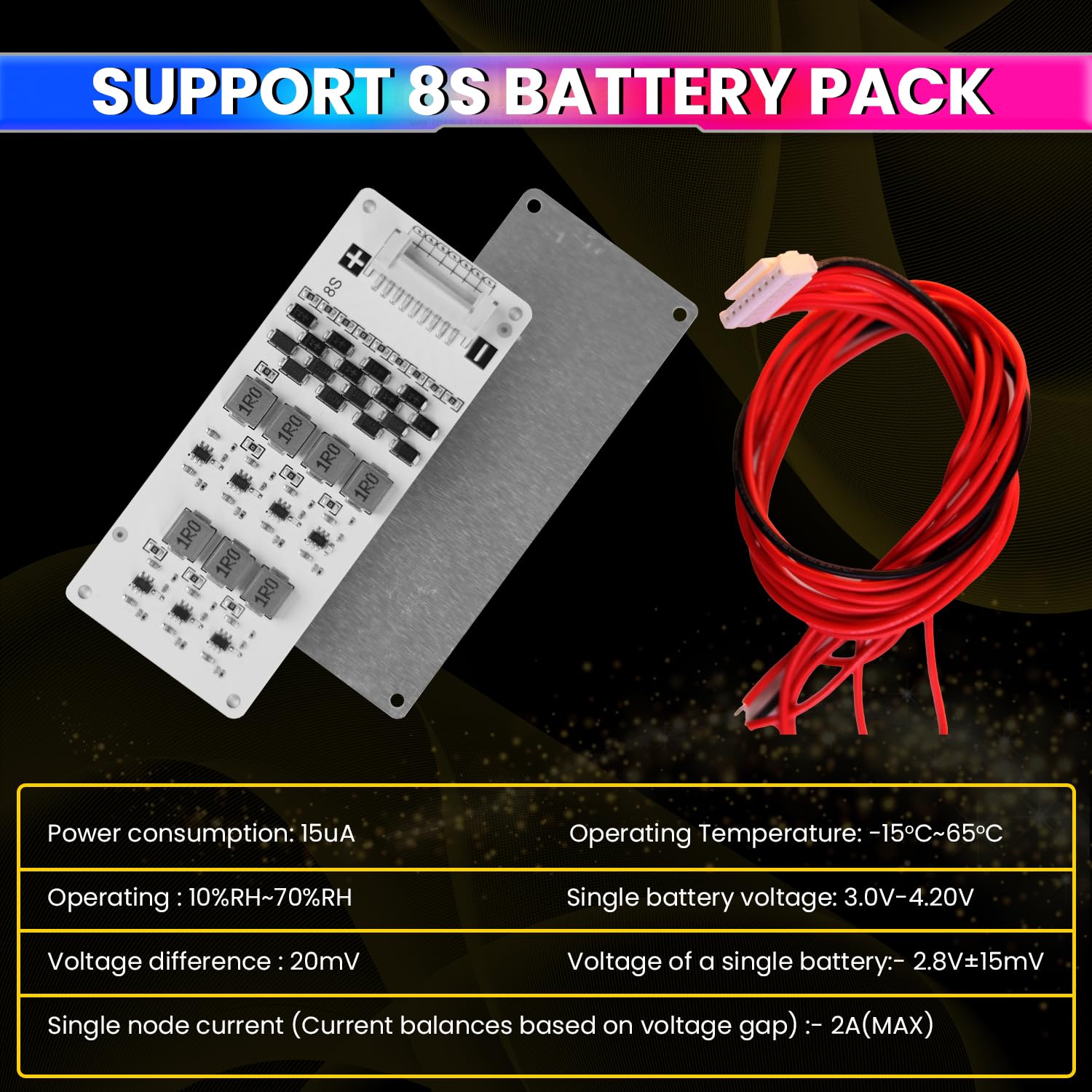

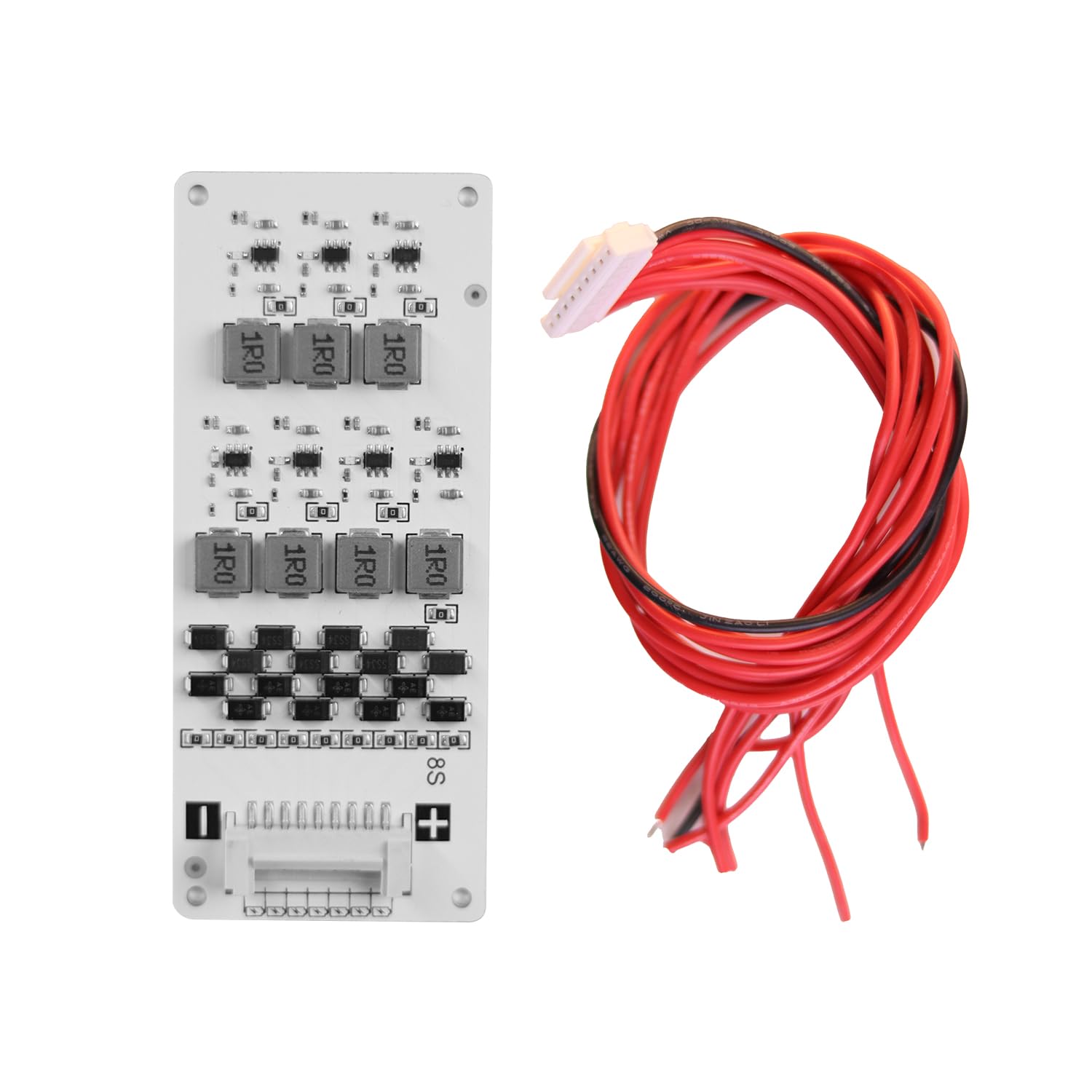

8S 2A Active Energy Balancer Board – Inductive Voltage Energy Equalization for LiFePO4 / Li-ion / Lipo / LTO Battery Packs (3.0V–4.2V)

Product Features:

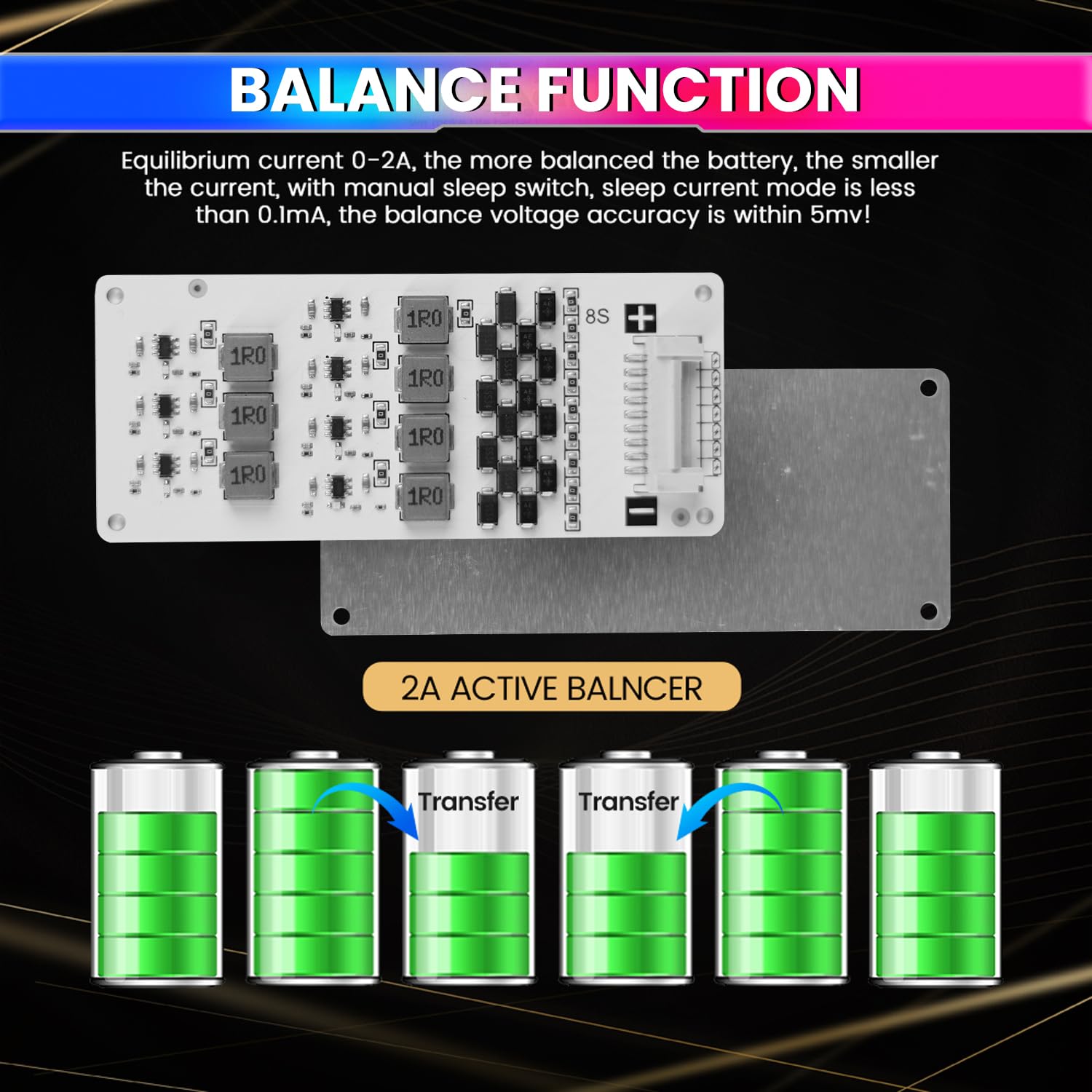

• Advanced Active Balancing Technology :- Utilizes high-efficiency inductive energy transfer to move charge from higher-voltage cells to lower ones, improving battery performance and lifespan.
• High-Precision Voltage Equalization :- Automatically activates when voltage difference ≥20mV (±5mV), ensuring consistent voltage across all connected cells.
• Smart & Energy-Efficient :- Consumes only 15uA during operation, minimizing energy loss and preserving overall battery capacity.
• Wide Compatibility & Safety :- Supports LiFePO4, LFP, LTO, and Li-ion batteries (3.0V–4.2V per cell). Designed for safe performance in -15°C to 65°C and 10%–70% humidity conditions.

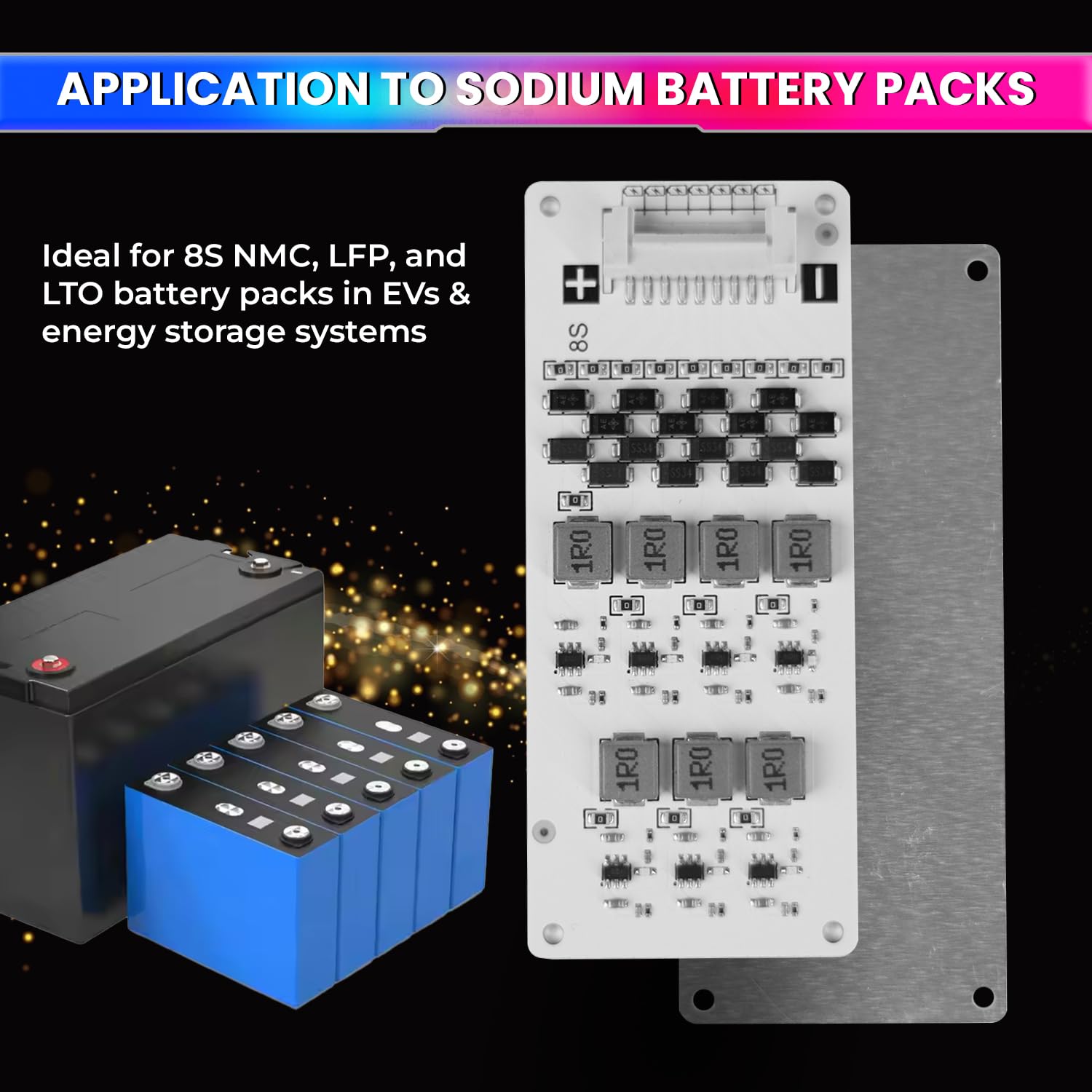

• Stable & Reliable Performance :- Keeps each cell within optimal voltage levels, preventing overcharging and extending battery life—perfect for EVs, solar systems, and DIY battery packs.
•  Warranty :– The products come with 1 year warranty (To claim warranty feel free to contact amiciKart).

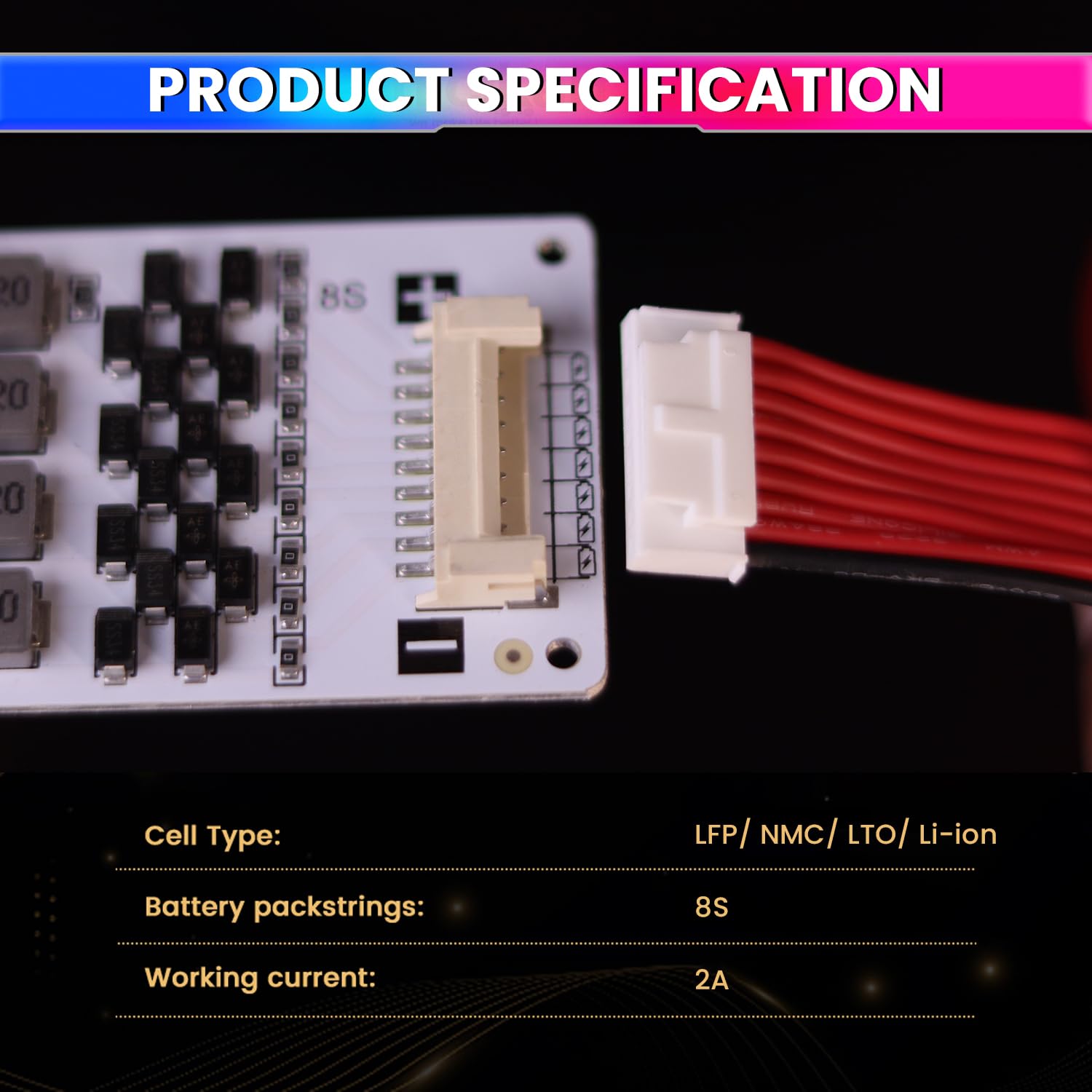

Technical Specification:
Single battery voltage:- 3.0V-4.20V
Voltage difference between batteries:-Voltage difference ≧20mV± 5mV
The voltage of a single battery is less than:- 2.8V±15mV
Single node current (The balance current is proportional to the voltage difference between cells):- 2A(MAX)
Voltage difference between batteries:- 20mV
Power consumption during balanced startup:- 15uA
Operating/storage temperature:- -15℃-65℃
Operating/storage humidity:- 10%RH－70%RH
