Know before you buy
-
Up to 140W · 28V/5A
PD3.1 & QC5 protocols; two-way charge and discharge up to 140W.
-
2S–6S Li-ion / LiFePO4 / Polymer
For 2S–6S Li-ion, LiFePO4 and Polymer battery packs; select the correct pack voltage range.
-
6–30V DC input
Car outlet, DC adapter or external pack; 24V recommended.
-
DIY module — polarity & pack care
Incorrect wiring or wrong chemistry settings can damage batteries/devices.
Features that make it useful
-
PD3.1 & QC5 class output
Full-speed charging for laptops, tablets and phones, up to 140W.
-

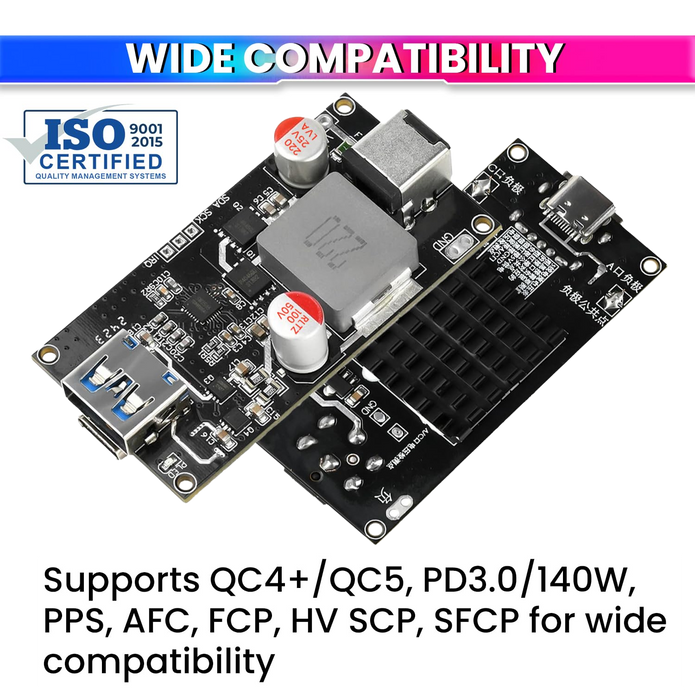

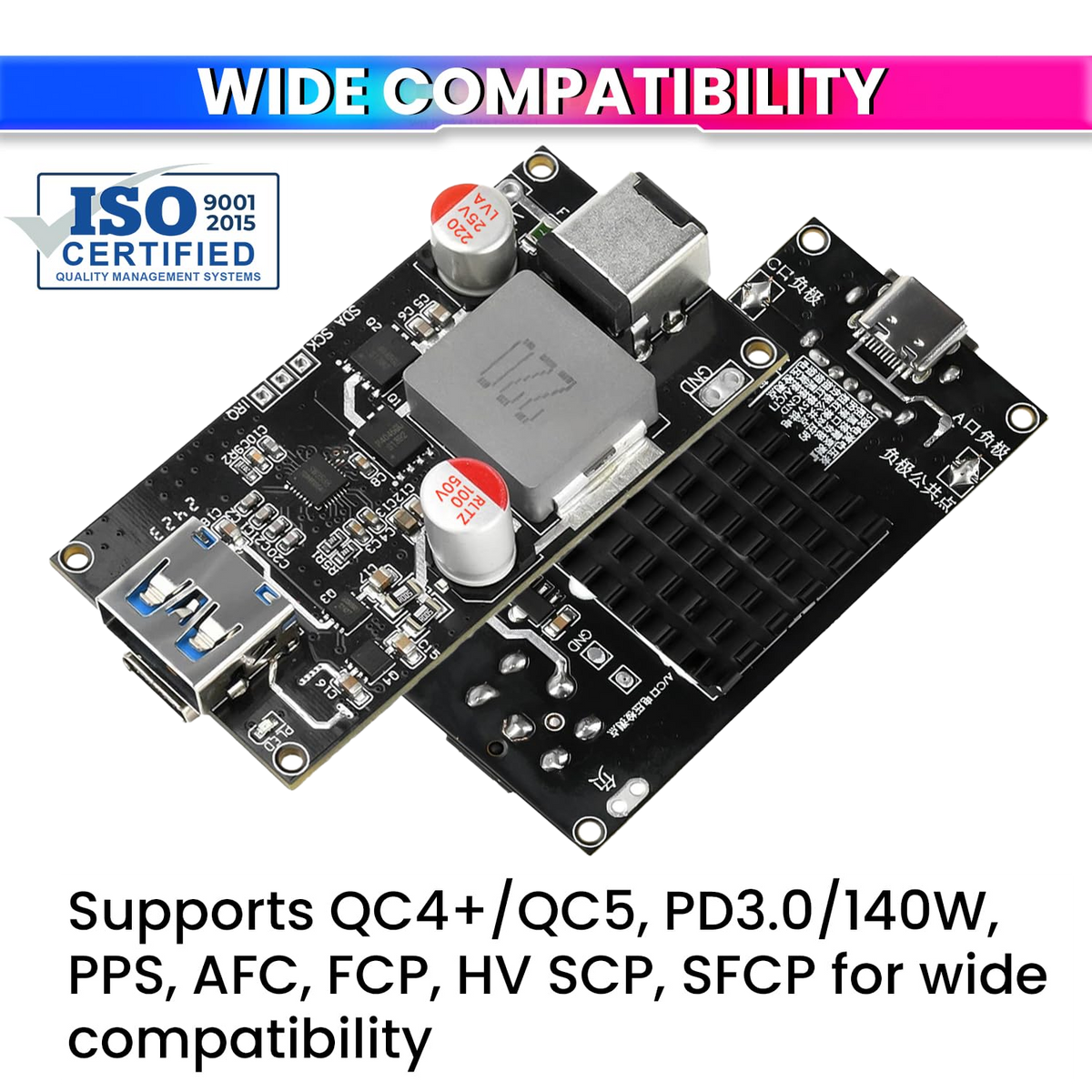

10+ fast-charge standards
PD3.0, QC2.0/3.0/4+/5, PPS, AFC, FCP, SCP & SFCP.
-
USB-C + USB-A outputs
Each port delivers 5V/2A when both are used at the same time.
-

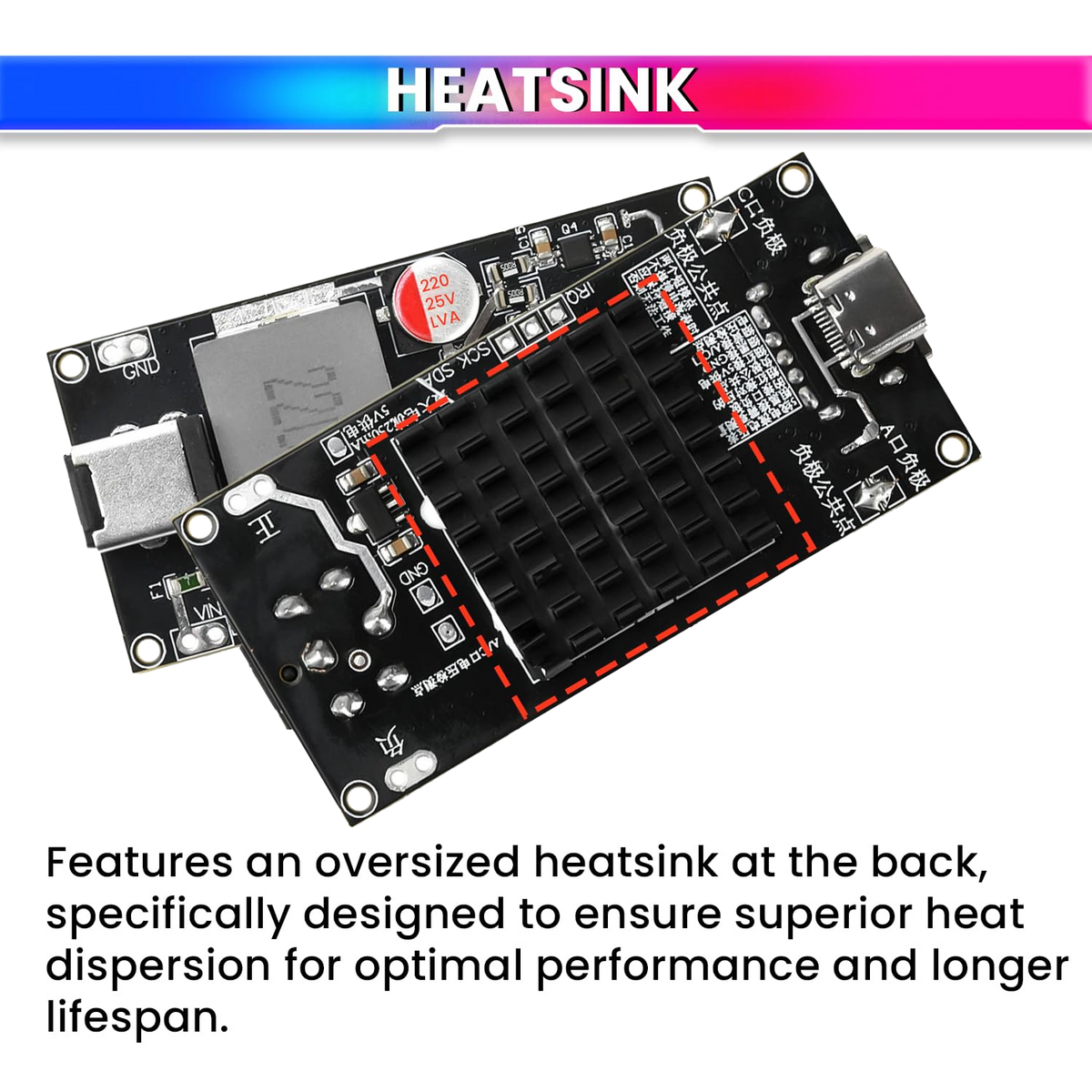

Thermistor + OV/UV/short protection
Temperature control and electrical protections, with heat dissipation. No temperature limit is specified.
How to use
-
Check pack series count and chemistry
Use only with 2S–6S Li-ion, LiFePO4 or Polymer packs.
-
Power from a suitable 6–30V DC source
Observe polarity; a 24V source is recommended for headroom.
-
Connect USB-C/USB-A loads within ratings
Keep to 5V/2A per port when both are in use, and never exceed 140W.

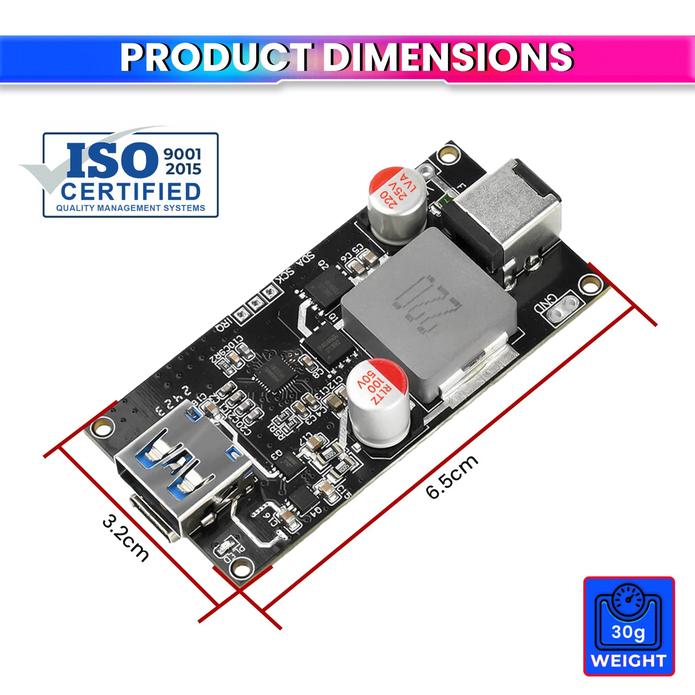

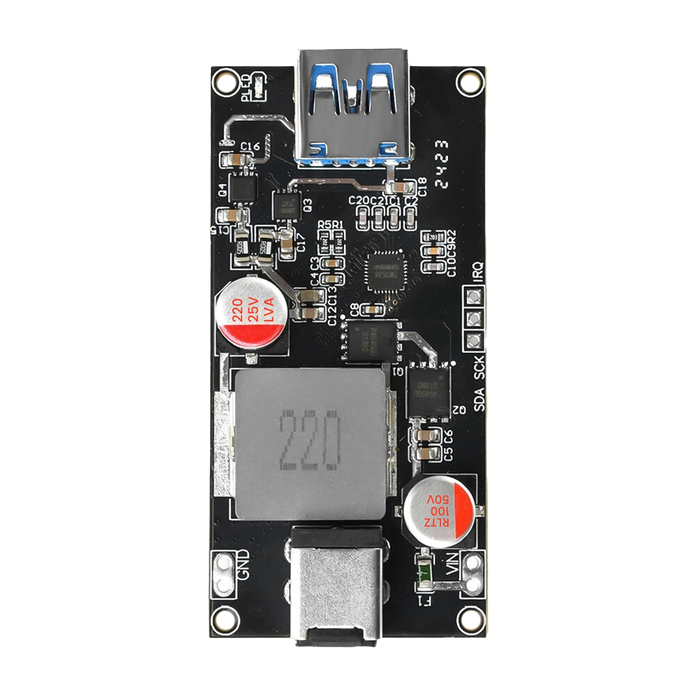

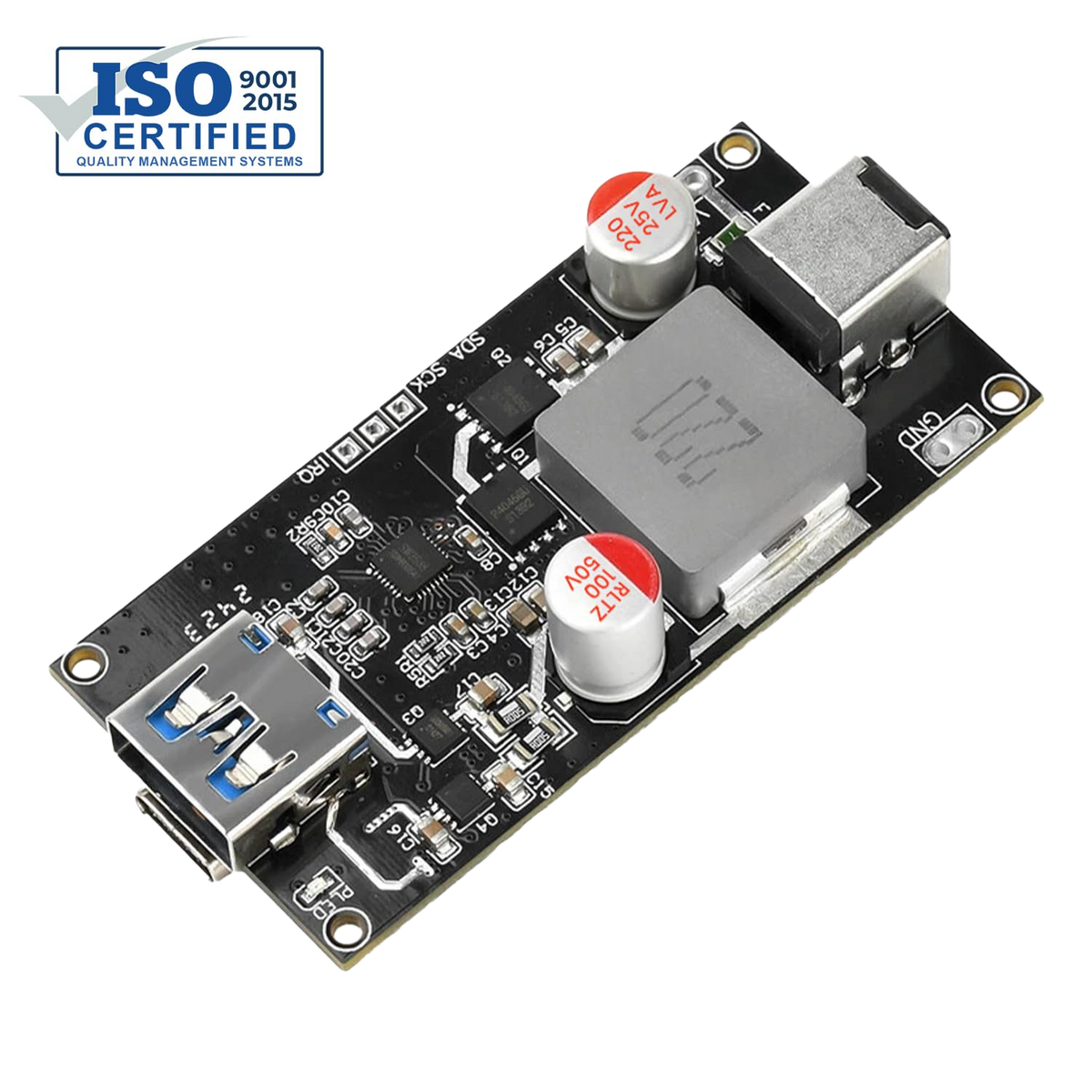

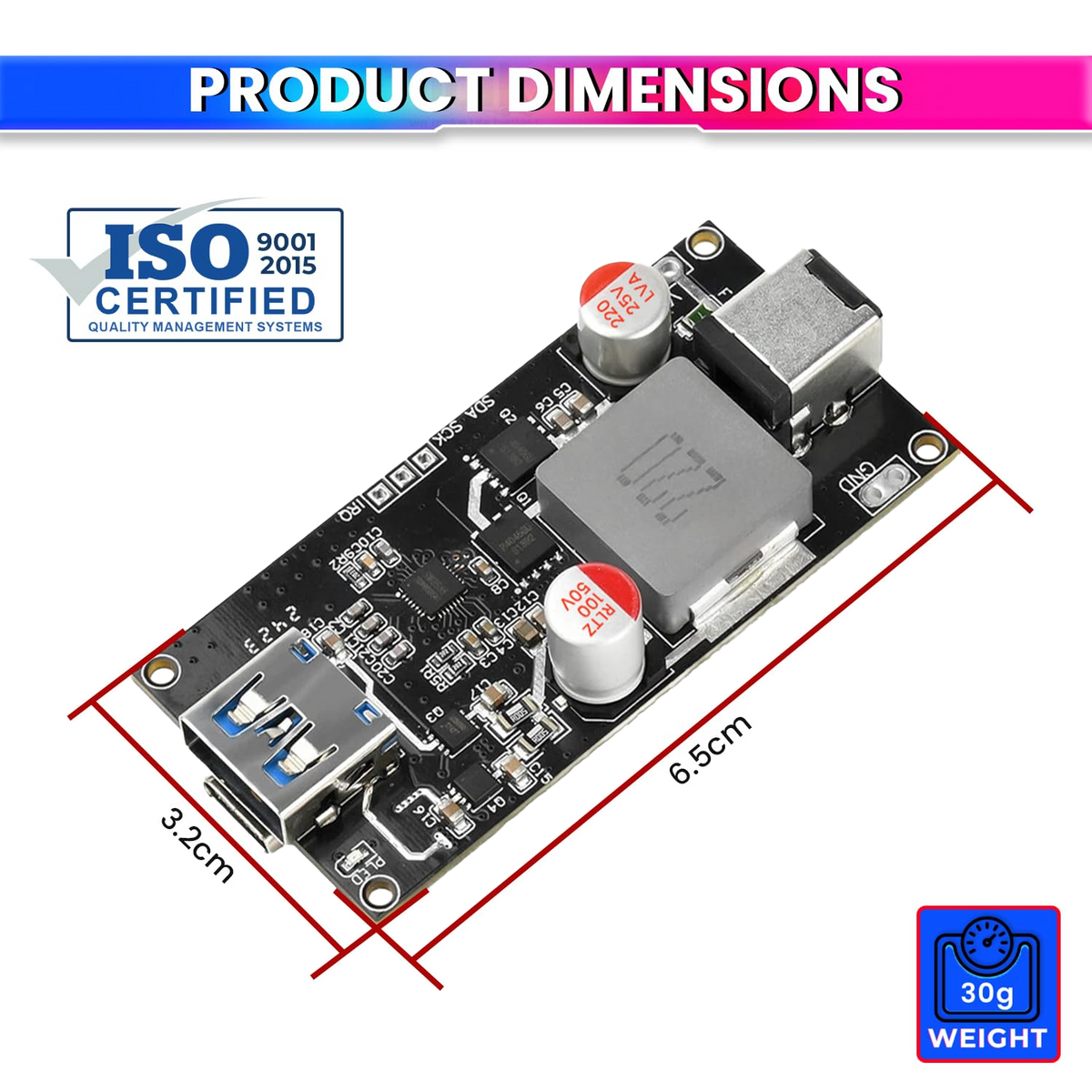

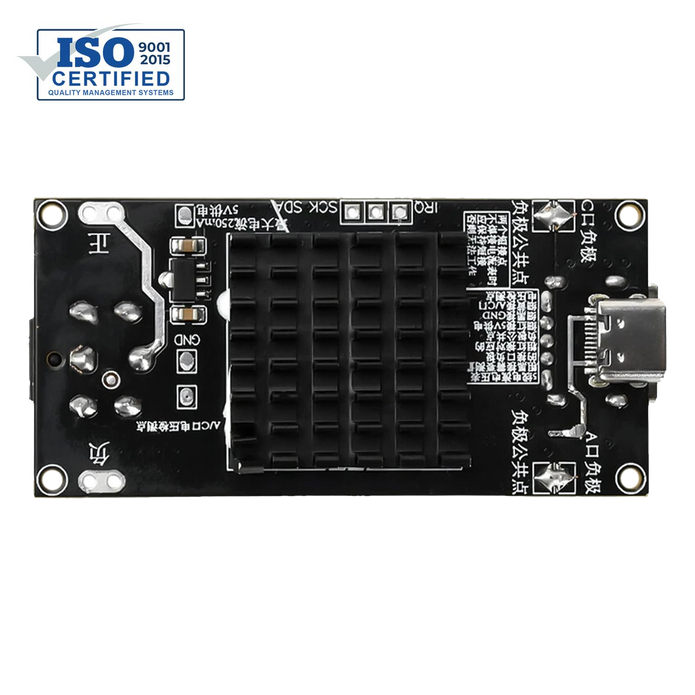

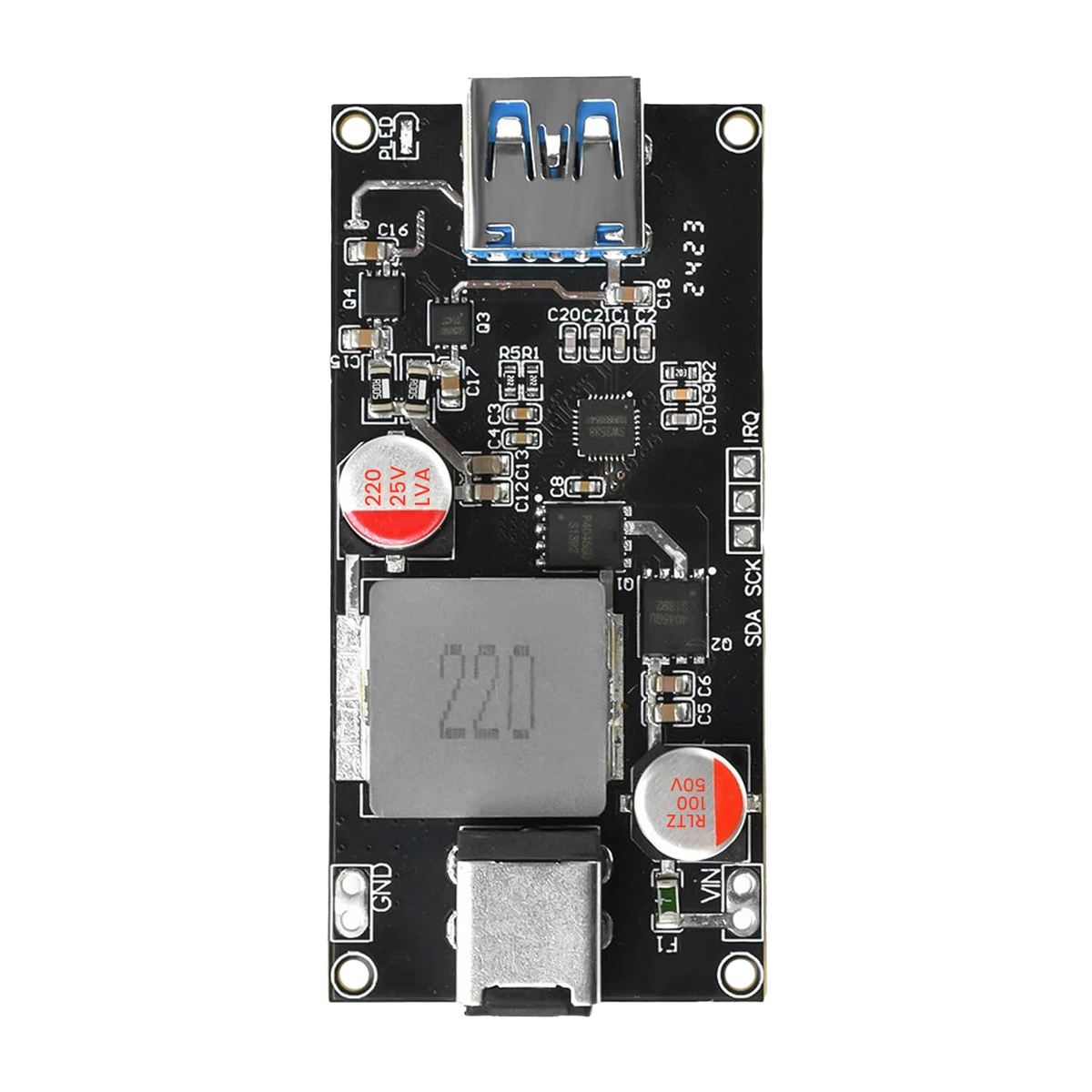

140W USB-C Fast Charge/Discharge Module (2S–6S)
amiciKart · up to 28V/5A (140W) · PD3.1 & QC5 · 6–30V DC input · 2S–6S Li-ion/LiFePO4/Polymer · USB-C + USB-A
Two-way USB-C charge/discharge module for 2S–6S lithium packs: up to 28V/5A (140W) via PD3.1 & QC5, 6–30V DC input (24V recommended), 10+ fast-charge protocols, USB-C + USB-A (5V/2A each together), thermal and OV/UV/short protection.
Orders are processed before 2 PM on dispatch days.
Use code
Use code
Use code
Couldn't load pickup availability

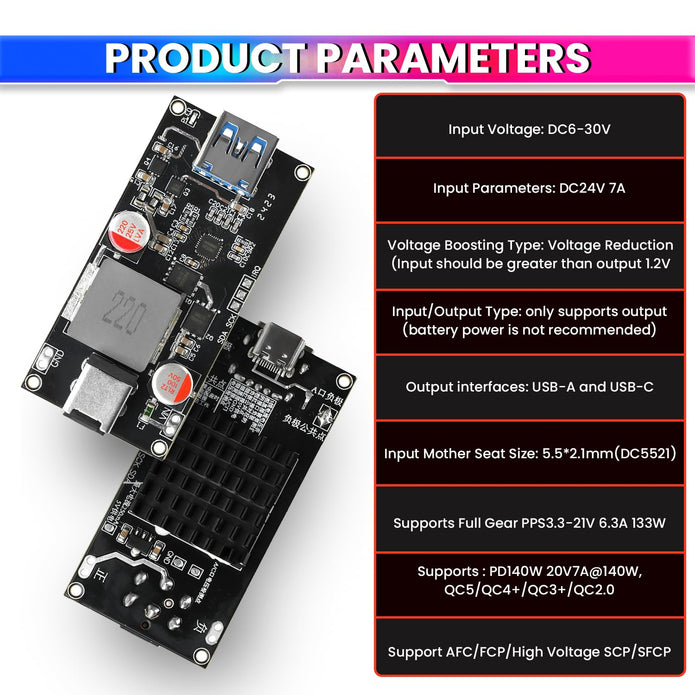

Specifications
| Brand | amiciKart |
|---|---|
| Device class | USB-C bidirectional fast charge/discharge module |
| Max power / voltage-current | 140W · up to 28V/5A |
| Protocols | PD3.1 · QC5 · PD3.0 · QC2.0/3.0/4+ · PPS · AFC · FCP · SCP · SFCP |
| Battery support | 2S–6S Li-ion · LiFePO4 · Polymer |
| DC input | 6–30V (24V recommended) |
| USB outputs | USB-C + USB-A · 5V/2A each when used together |
| Protections | Thermistor temperature control · overvoltage · undervoltage · short-circuit |
| Efficiency / certifications | Numeric efficiency and certification details are not specified. |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
Is this a finished power bank?
What input voltage does it need?
Does it support LiFePO4?
Is an efficiency figure specified?
Full Product Description
amiciKart 140W USB-C Fast Charge/Discharge Module (2S–6S)
Up to 28V/5A (140W), PD3.1 & QC5, 6–30V DC input, for 2S–6S Li-ion/LiFePO4/Polymer packs. USB-C + USB-A at 5V/2A each when used together. DIY module — check polarity, pack chemistry and wiring before use.
