130W DC Buck-Boost Converter 5–32V to 1–30V Adjustable CV/CC Control | 10A Max | 7A Recommended Continuous

Adjustable DC/DC Buck-Boost Power Module

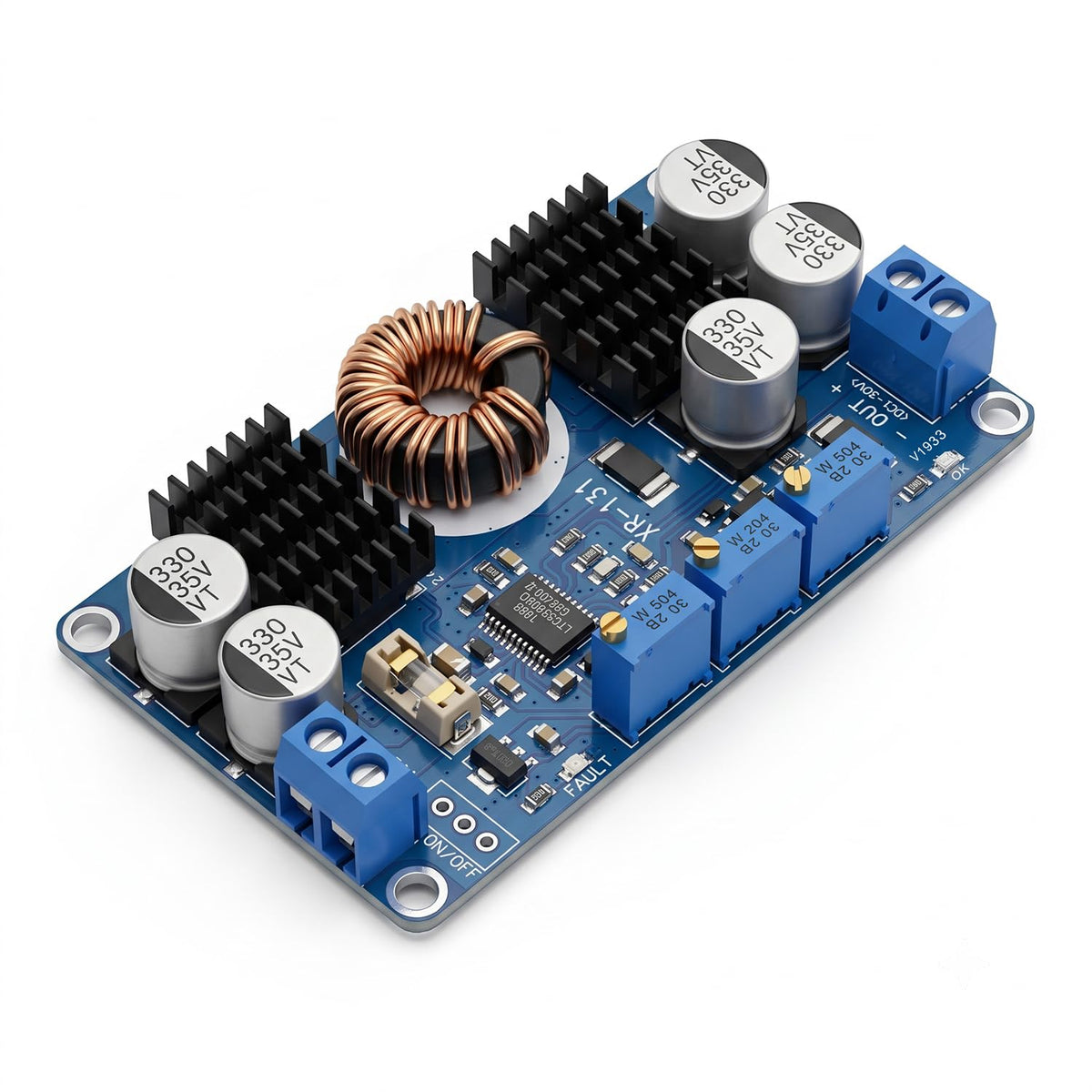

The amiciSolar 130W Buck-Boost Converter Module is an adjustable DC/DC power supply designed to convert 5–32V DC input into a continuously adjustable 1–30V DC output.
Its buck-boost design allows the output voltage to be adjusted both below and above the input voltage, while built-in CV/CC control provides flexible voltage and current adjustment.
WIDE INPUT & OUTPUT RANGE
Input: DC 5–32V
Recommended Input: Above 10V
Output: DC 1–30V, continuously adjustable
Maximum Output Current: 10A
For better performance, an input voltage above 10V is recommended.
10A MAXIMUM CURRENT & 130W PEAK POWER
Recommended Continuous Current: Up to 7A
Long-Term Output Power: Up to 80W
Peak Output Power: Up to 130W
For operation above 80W, enhanced cooling is required.

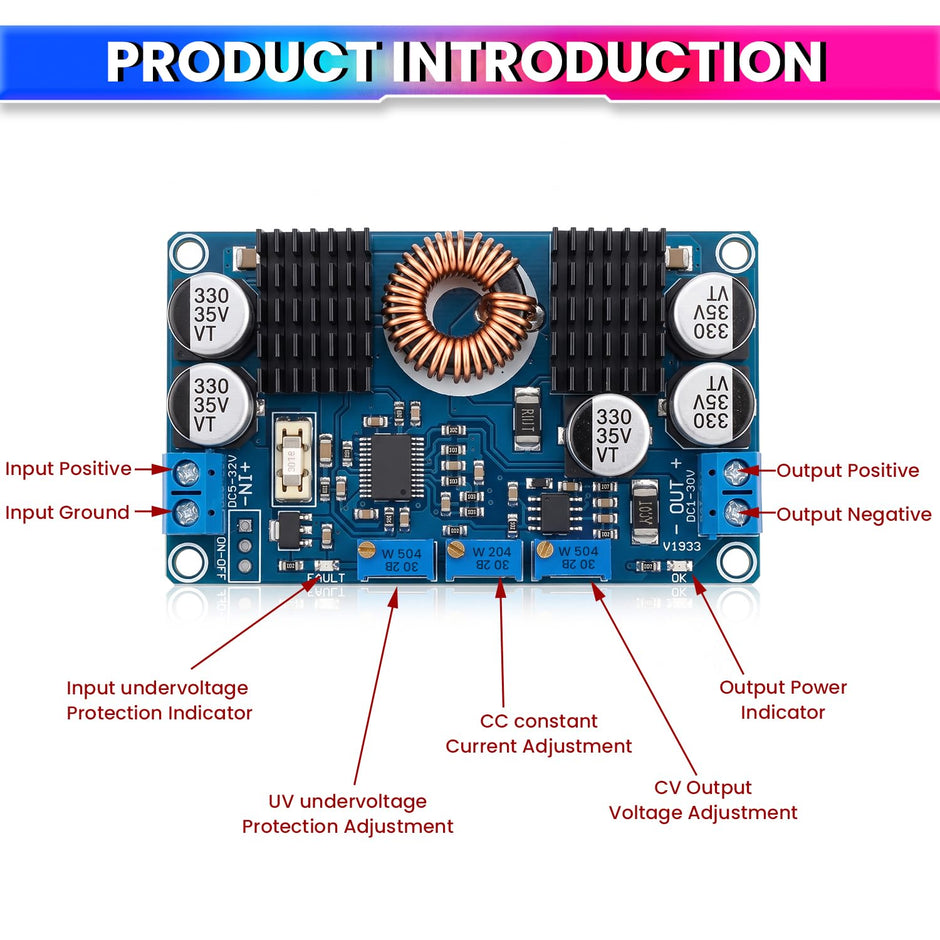

MULTIPLE PROTECTION FEATURES
The module includes:
Adjustable undervoltage protection
Overcurrent protection
Output overvoltage protection
Short-circuit protection
Replaceable input fuse
Red fault indicator
These features help protect the module and connected equipment during abnormal

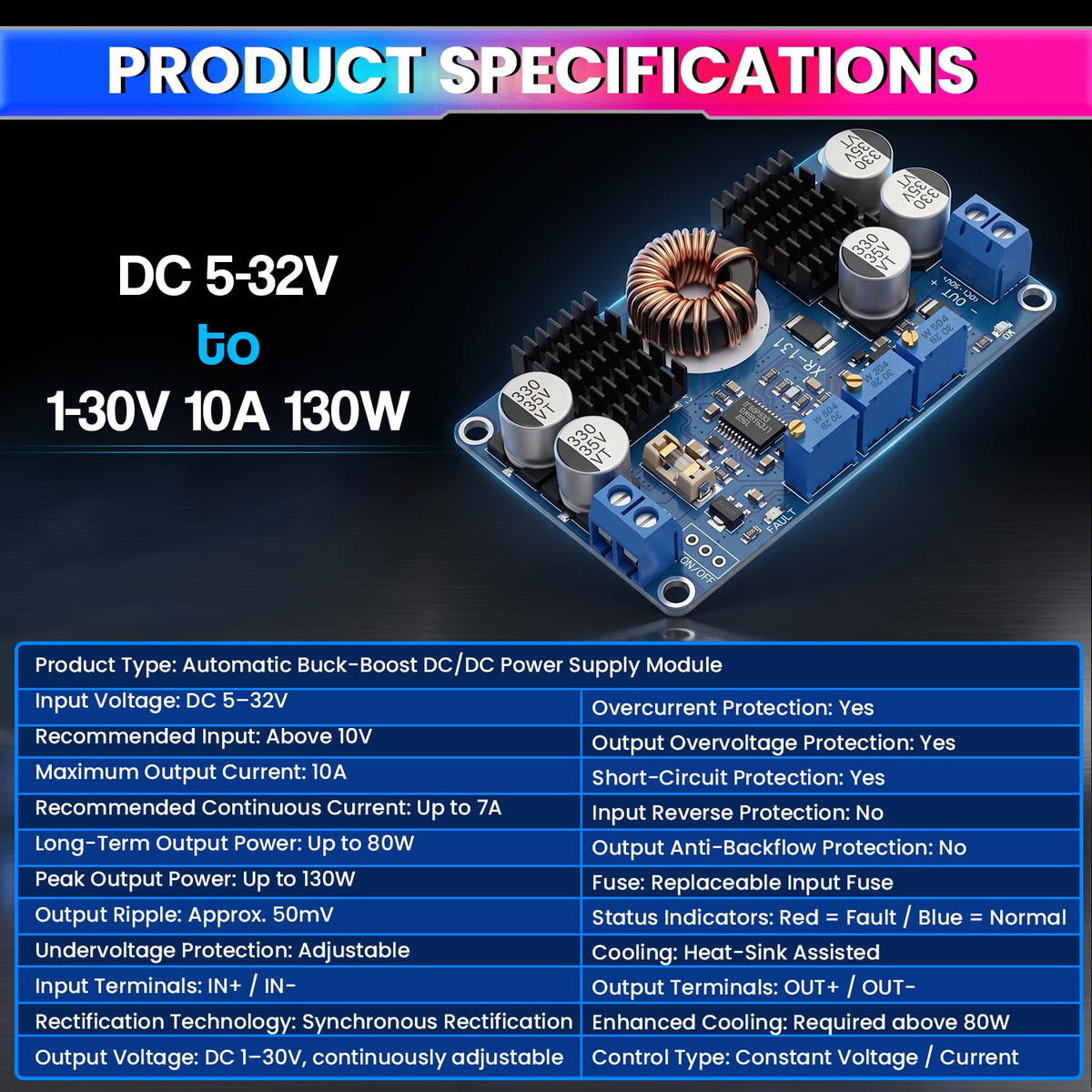

Specifications<.
Product Type:- Automatic Buck-Boost DC/DC Power Supply Module
Input Voltage:- DC 5–32V
Recommended Input:- Above 10V
Output Voltage:- DC 1–30V, Continuously Adjustable
Maximum Output Current:- 10A
Recommended Continuous Current:- Up to 7A
Long-Term Output Power:- Up to 80W
Peak Output Power:- Up to 130W
Output Ripple:- Approx. 50mV
Control Type:- Constant Voltage / Constant Current
Undervoltage Protection:- Adjustable
Overcurrent Protection:- Yes
Output Overvoltage Protection:- Yes
Short-Circuit Protection:- Yes
Input Reverse Protection:- No
Output Anti-Backflow Protection:- No
Rectification Technology:- Synchronous Rectification
Fuse:- Replaceable input fuse
Status Indicators:- Red fault / Blue normal indication

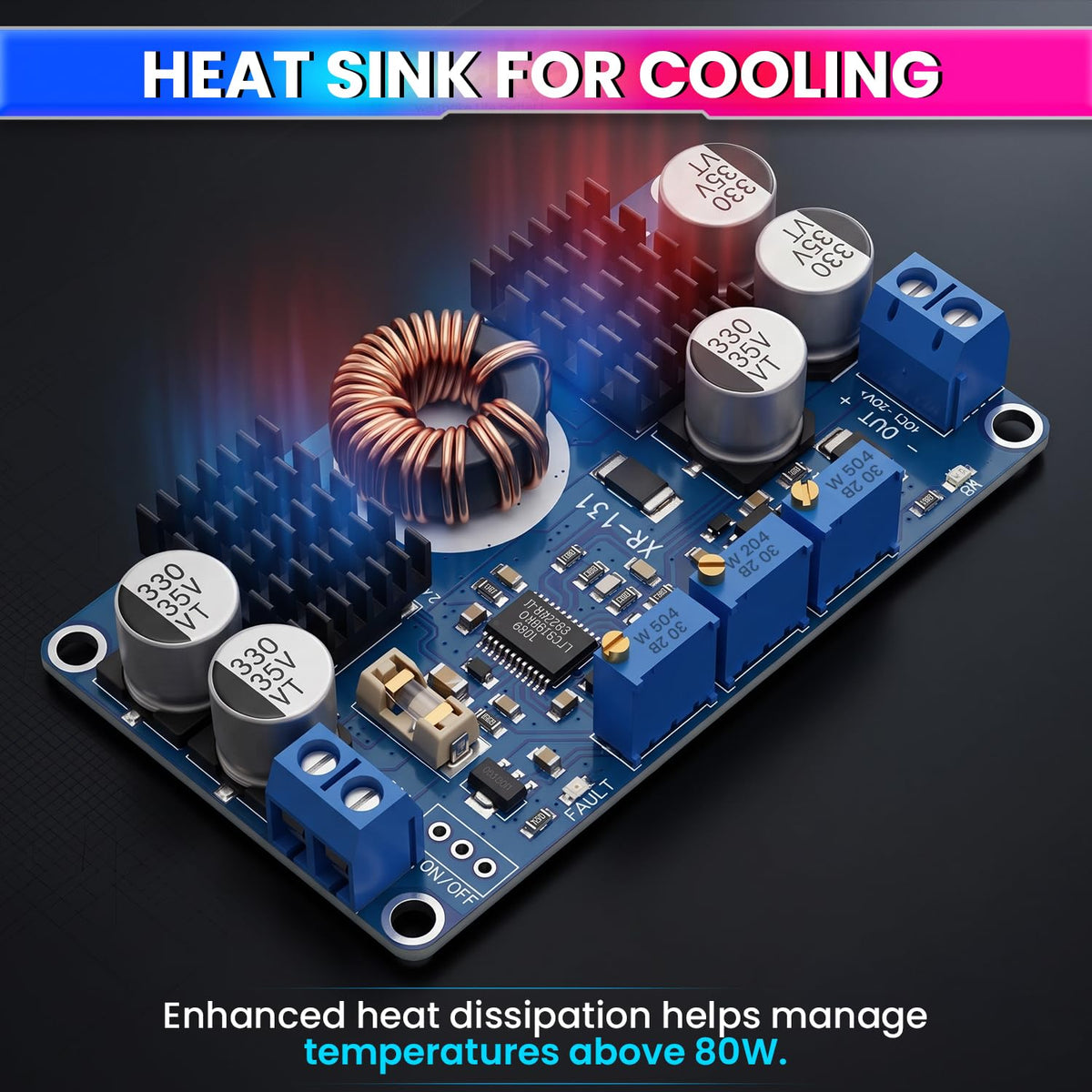

Cooling:- Heat-sink assisted; enhanced cooling required above 80W
Input Terminals:- IN+ / IN−
Output Terminals:- OUT+ / OUT−
Important Usage Notes
Input reverse-polarity protection is NOT provided. Verify input polarity before connecting the power source.
Output anti-backflow protection is NOT provided. External protection components may be required depending on the application.
For continuous operation above 80W, enhanced cooling is required. Ensure suitable wiring, connectors and power-source capacity for high-current operation.
