Know before you buy
-
DC 12V · 10A relay output
Switch loads up to 10A.
-
0.01 s to 999 min timing window
From split-second pulses to long delays.
-

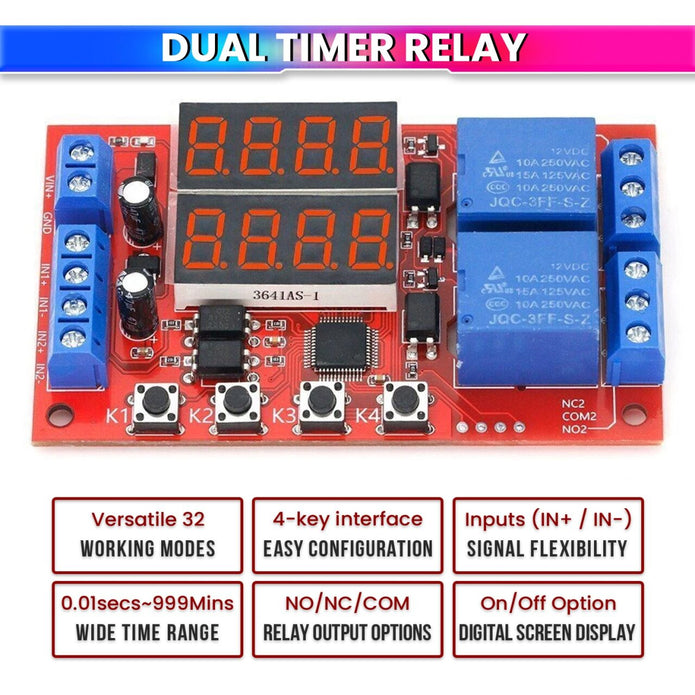

32 working modes
Delay, cycle, pulse, self-lock and loop modes.
-

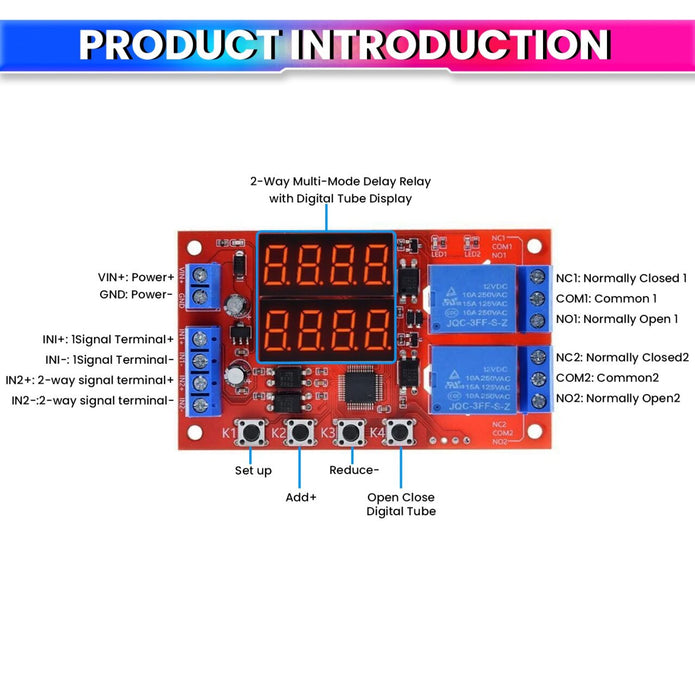

Digital display · 4-button UI
Set up with K1–K4; display can blank on standby.
Features that make it useful
-

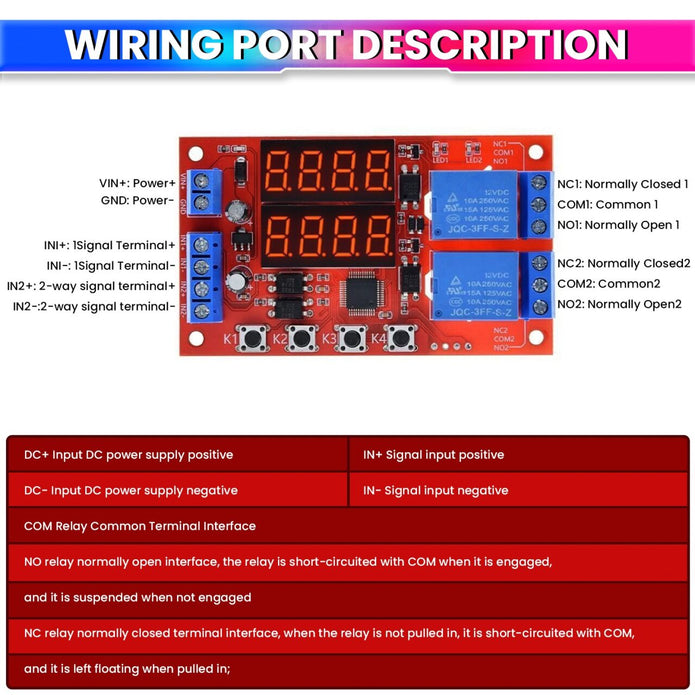

NO / NC / COM terminals
Wire for normally-open or normally-closed switching.
-
IN+ / IN− trigger inputs
Positive and negative trigger support.
-
30-day easy returns
Hassle-free returns.

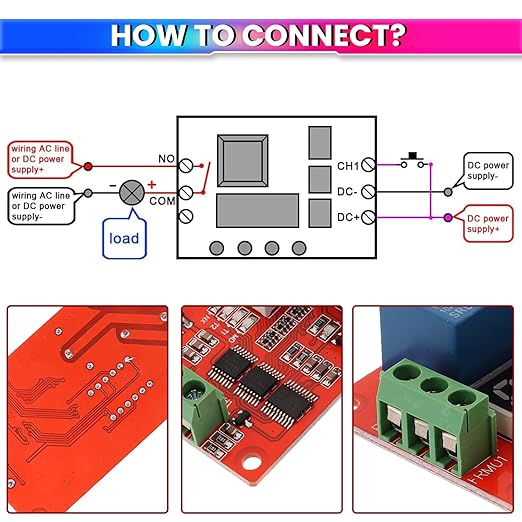

How to use
-
Power from DC 12V and keep the switched load within 10A on NO/NC/COM
Observe polarity.
-
Select mode and set A/B times + cycle count via K1–K4; check on the digital display
Choose from 32 modes.
-
Wire IN+/IN− triggers to match your control polarity
Positive and negative triggers are supported.

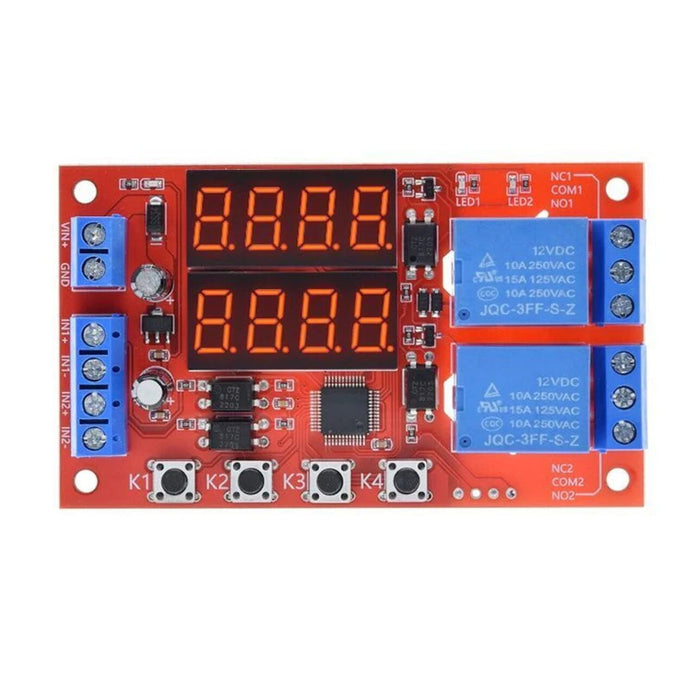

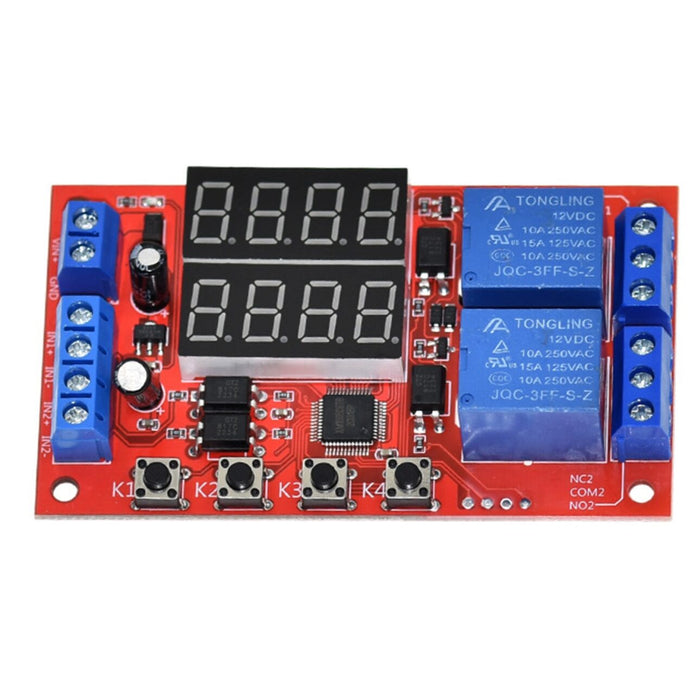

12V 10A Adjustable Delay Relay 32-Mode
amiciKart · DC 12V · 10A · 32 modes · 0.01s–999 min · LED display
12V 10A adjustable time-delay relay module with 32 modes: delay on/off, cycle, pulse count, self-lock, power-on delay and infinite loop. Timing 0.01 s to 999 min, NO/NC/COM relay, K1–K4 buttons, digital display, IN+/IN− triggers.
Sale price
Rs. 699.00
-62%
Regular price
Rs. 1,800.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 699.00
Unit price
Increments of 1
Minimum of 1
Maximum of
12V 10A Adjustable Time Delay Relay Module – 32 Modes Dual LED Timer Switch with Digital Display
Sale price
Rs. 699.00
Regular price
Rs. 1,800.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 699.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

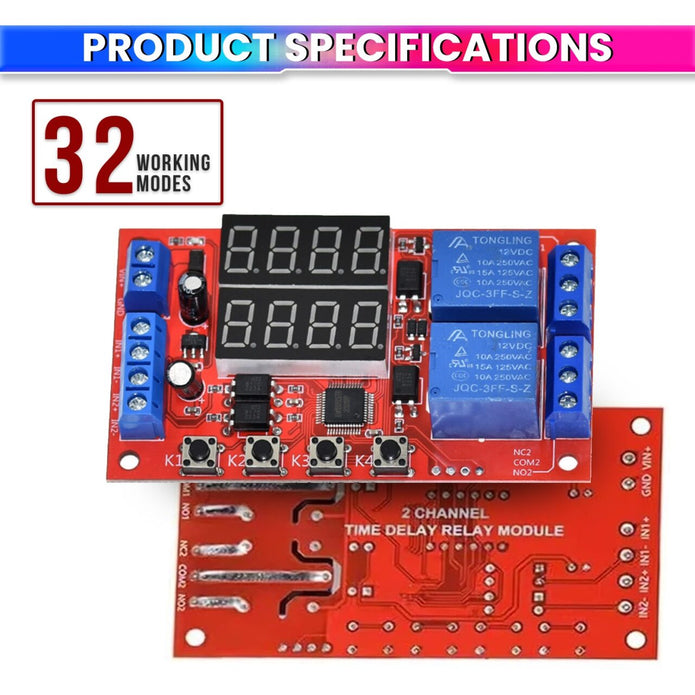

Specifications
| SKU | 1xADJ-DLY-12V |
|---|---|
| Brand | amiciKart |
| Device class | Adjustable time-delay relay module |
| Supply | DC 12V |
| Relay current | 10A · NO/NC/COM |
| Modes | 32 (delay ON/OFF · cycle · pulse · self-lock · power-on delay · loops) |
| Timing | 0.01 s to 999 min |
| UI | K1–K4 buttons · digital display (blankable) |
| Triggers | IN+ / IN− |
| Returns | 30-day no-questions-asked |
Frequently asked questions
What are the voltage and current?
DC 12V supply and 10A relay output.
What timing range?
0.01 seconds to 999 minutes with 32 modes.
Is this rated for AC mains switching?
It is a 12V DC module; an AC mains switching rating is not specified.
Full Product Description
12V 10A Adjustable Delay Relay 32-Mode
12V 10A adjustable time-delay relay module with 32 working modes and digital display. DC 12V, 10A relay (NO/NC/COM), modes including delay-on/off, cycle, pulse count, self-lock, power-on delay, infinite loop, timing 0.01 s to 999 min, 4-button UI (K1–K4), dual LED / digital display (can blank on standby), IN+/IN− trigger inputs, 30-day returns.
- NO / NC / COM terminals: Normally-open or normally-closed switching.
- IN+ / IN− trigger inputs: Positive and negative trigger support.
- 30-day easy returns: Hassle-free returns.
