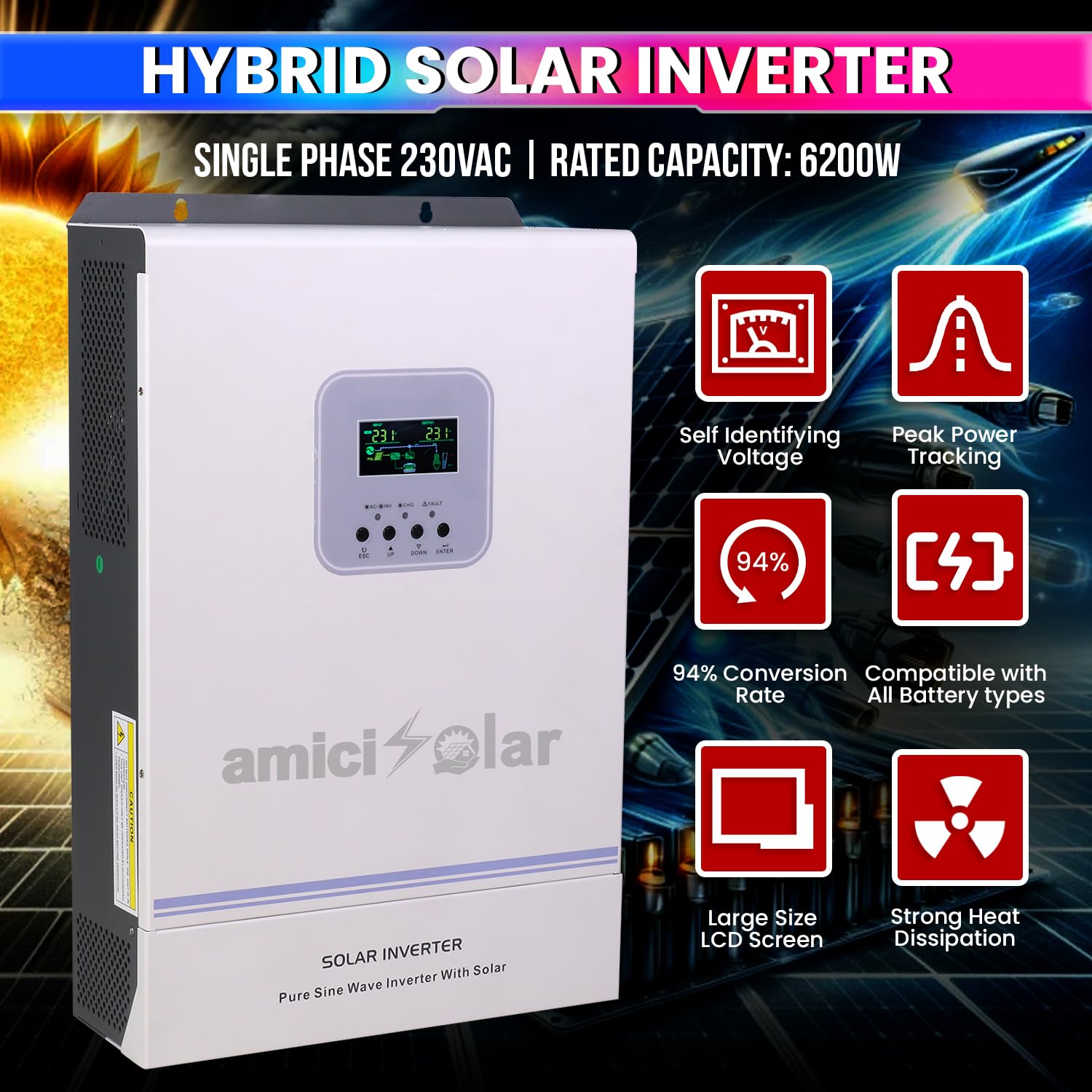

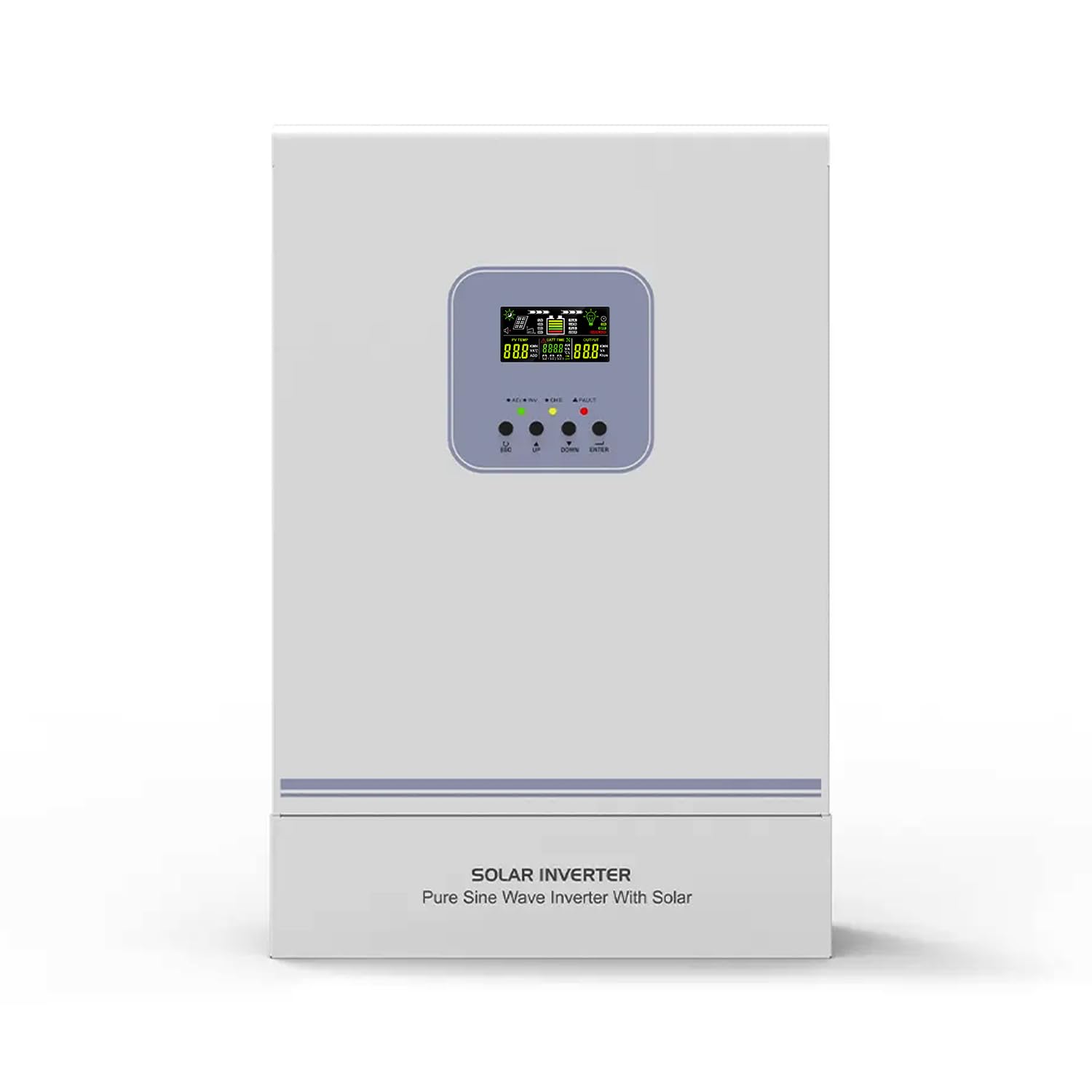

Solar Inverter|AC & DC Input |Supports 6200W Solar Panel & 48V Battery|All Battery Types & Controls AC Devices Directly from Solar Input

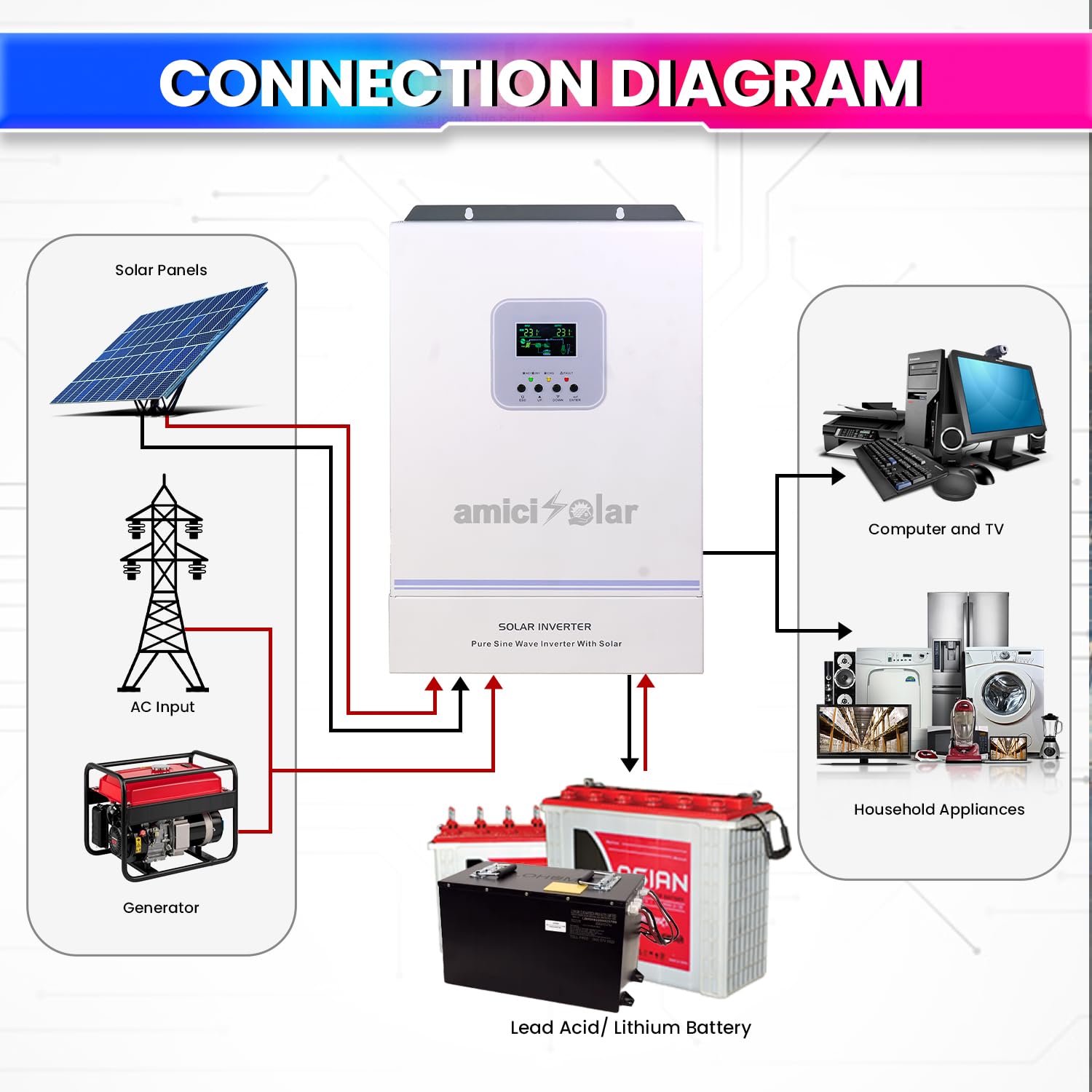

• Why You Need This MPPT Solar Inverter :-This advanced inverter outshines traditional models by seamlessly operating on both AC and DC inputs. It also supports direct solar-to-AC device operation, where AC devices can be powered from direct solar output.
• Innovative Dual Input System :-Seamlessly operates on both AC supply and DC (Solar) input. Prioritize your preferred input mode with customizable settings for efficient energy use.
• High Load Capacity :-Power up to 6200W load effortlessly. Perfect for a variety of household and industrial applications, ensuring reliable performance even under heavy loads.
• Superior Solar Compatibility :-Supports up to 6200W solar panels and 48V batteries, making it ideal for solar energy setups. Make sure panel VOC should be 60V or more.
• Universal Battery Support :-Designed to work with all battery types, including lead-acid, lithium-ion, and more. Enjoy versatility and convenience tailored to your energy needs.
• 1-Year Warranty & Dedicated Support :-For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.

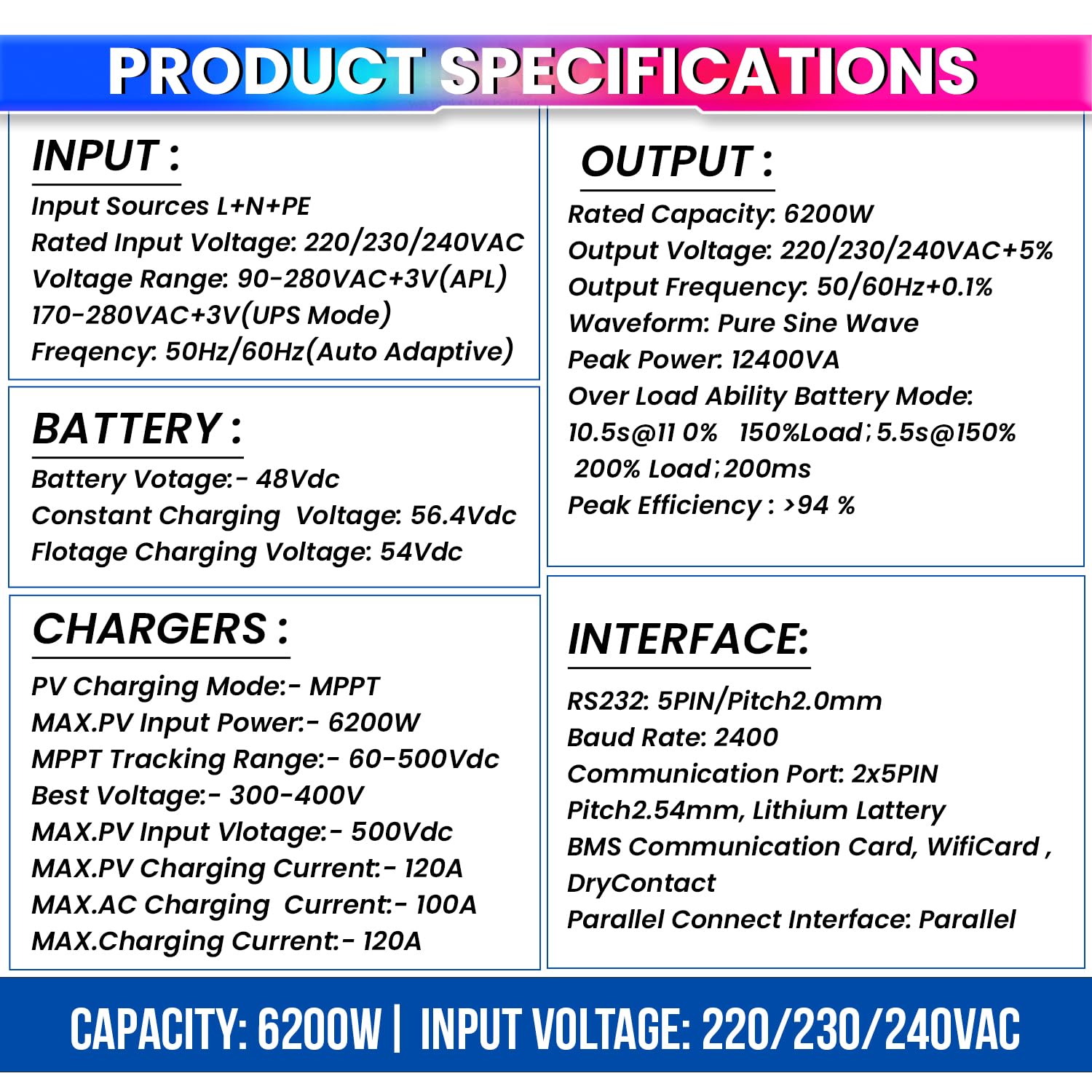

Specifications:-
Output:-
Rated Capacity:-6200W
Output Voltage:- 220/230/240VAC+5%
Output Frequency:- 50/60Hz+0.1%
Waveform:- Pure Sine Wave
Transfer Time (adjustable) Computers(UPS Mode) 1 Oms, Appliance (APL Mode )20ms
Peak Power:- 12400VA
Over Load Ability Battery Mode: 10.5s@110% -150% Load, 5.5s@150% -200% Load, 200ms @>200% Load
Peak Efficiency (Battery Mode):- >94 %
Battery:-
Battery Voltage:- 48Vdc
Constant Charging Voltage (Adjustable):- 56.4Vdc
Flotage Charging Voltage (Adjustable):- 54Vdc
Chargers:-
PV Charging Mode:- MPPT
MAX.PV Input Power:- 6200W
MPPT Tracking Range:- 60-500Vdc
Best Voltage:- 300-400V
MAX.PV Input Voltage:- 500Vdc
MAX.PV Charging Current:- 120A
MAX.AC Charging Current:- 100A
MAX Charging Current:- 120A
Display:-
LCD Display:- Display Running Mode/Loads/Input/Output etc.

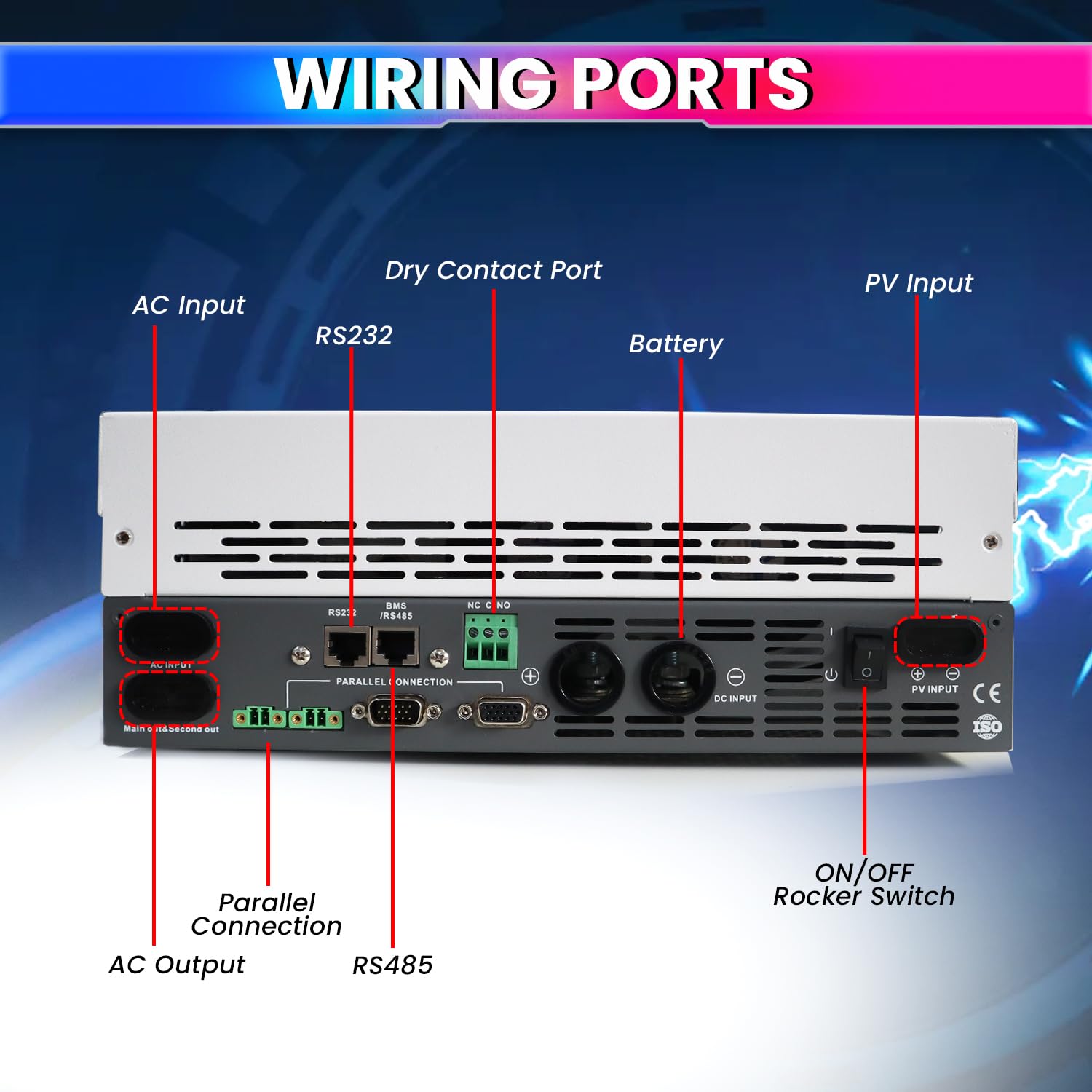

Interface:-
RS232:- 5PIN/Pitch2.0mm. Baud Rate2400
Communication Port:- 2x 5PIN/Pitch2.54mm,Lithium Battery BMS Communication Card, WIFI Card , Dry Contact
Parallel Connect Interface:- With Parallel
Environments:-
Operating Temperature:- 0-40?C
Humidity:- 20%-95%(Non-condensing)
Storage Temperature:- -15~60
Altitude:- Altitude Not Over 1000m,Derating over 1000m,Max 4000m. Refer to IEC62040
Noise - 50db
