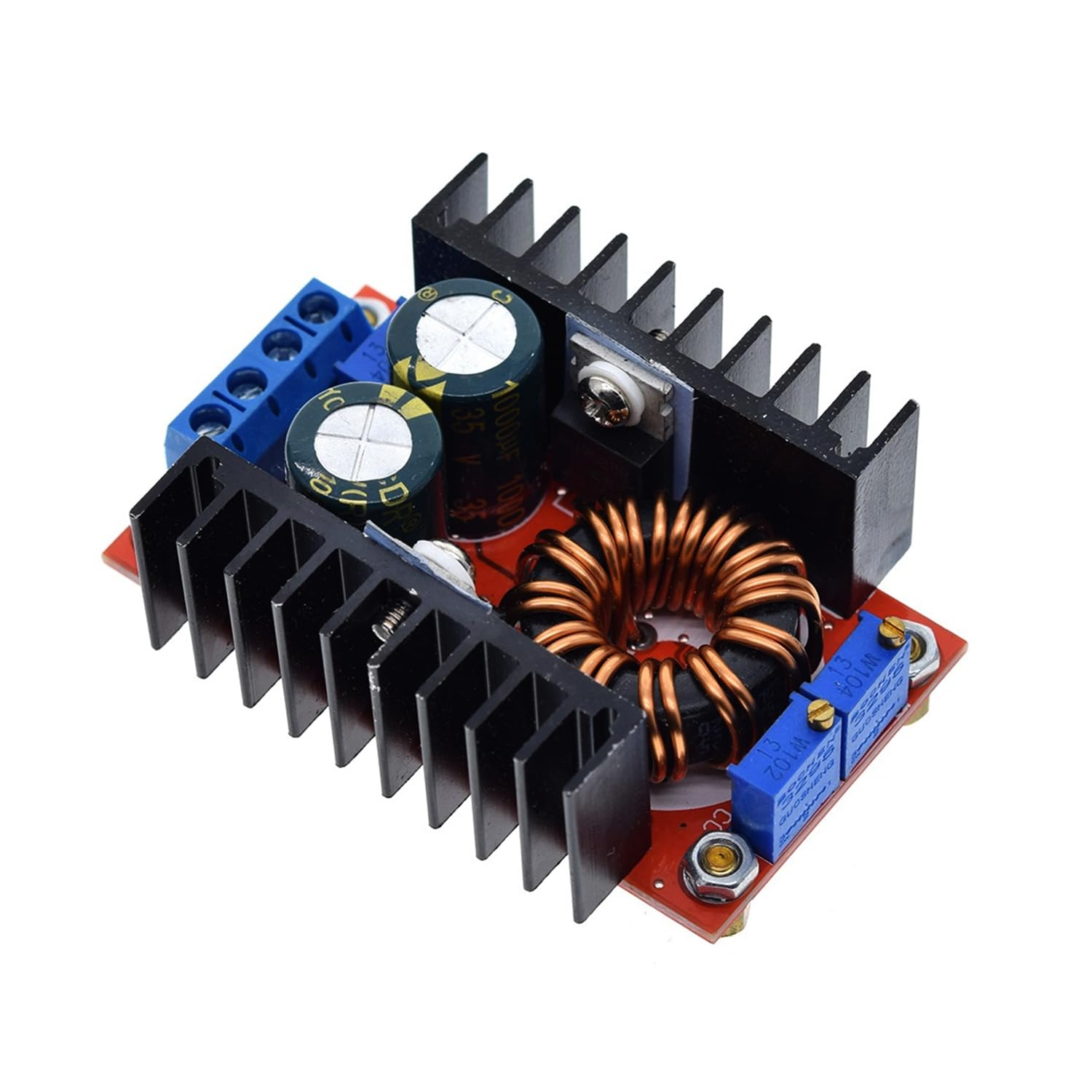

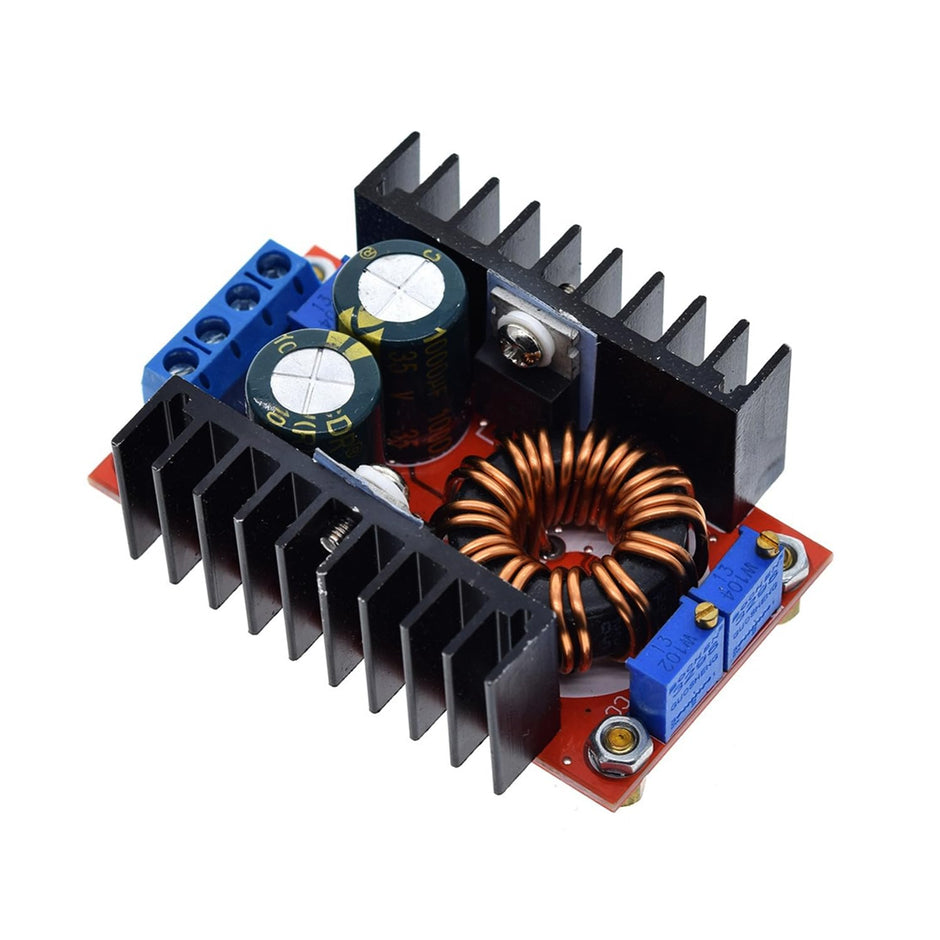

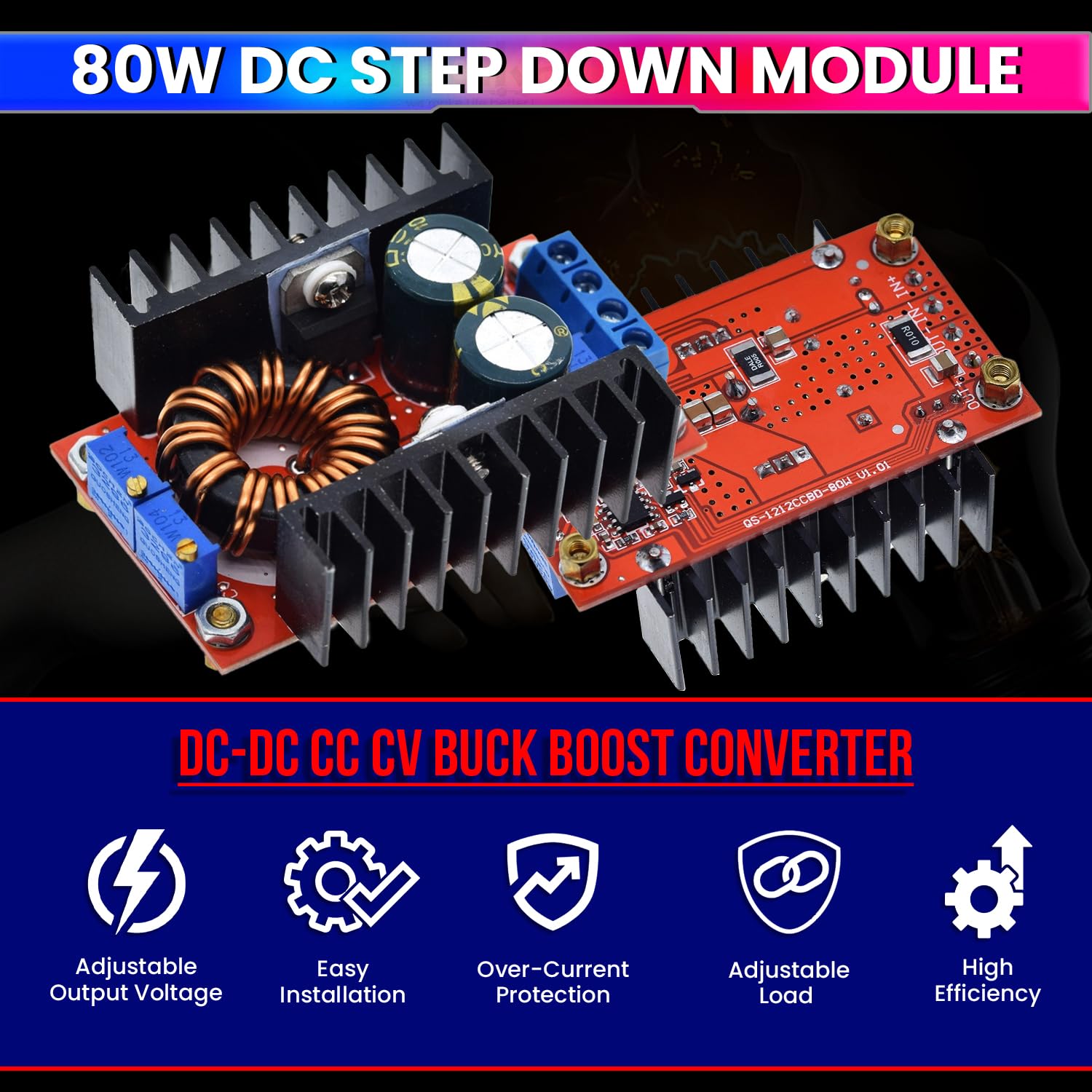

80W Buck-Boost Converter, DC 10-35V to 1-35V Step-Up/Step-Down Power Module

Couldn't load pickup availability
- Wide Voltage Range & High Power Output – Supports DC 10-35V input and provides an adjustable 1-35V output, delivering up to 8.5A and 80W max, ideal for a variety of applications.
- Buck-Boost Functionality – Efficiently steps up or steps down voltage to match your specific requirements, ensuring stable performance for sensitive electronics.

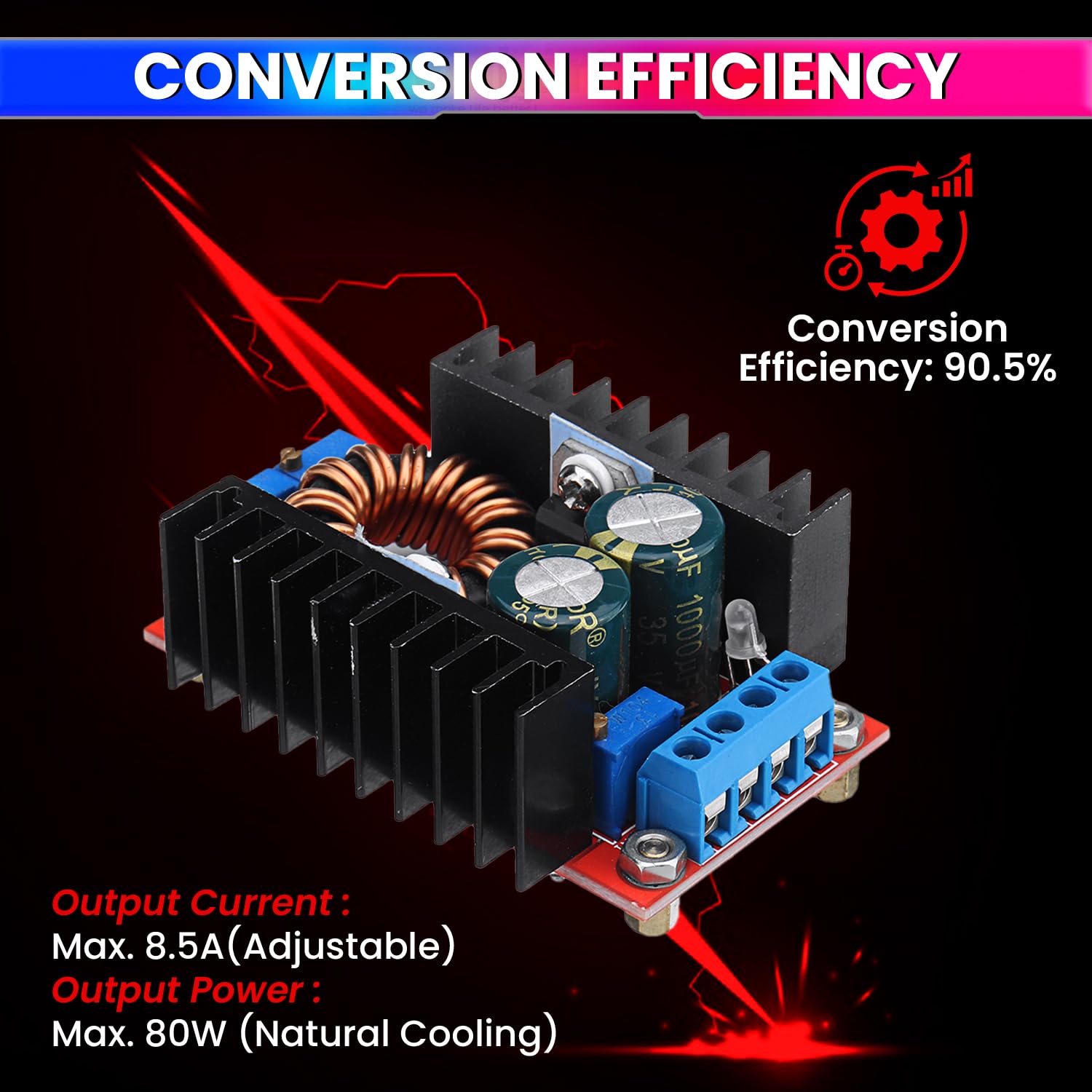

- High Conversion Efficiency – Features an advanced design with up to 90.5% efficiency, ensuring minimal energy loss and optimal power conversion.
- Superior Heat Dissipation & Stable Performance – Equipped with an airfoil heat sink for enhanced cooling, preventing overheating and ensuring long-term stability in high-power applications.
- Smart Protection Features – Includes adjustable under-voltage protection for battery safety, short circuit protection, and over-temperature protection with power reduction mode to prevent damage.
- Versatile Applications – Designed for battery charging, high-power LED lighting, and solar cell applications, with a constant current function and dual-color LED indicators for clear charging status visibility.
- Warranty- 1-Year Warranty & Dedicated Support : -For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.

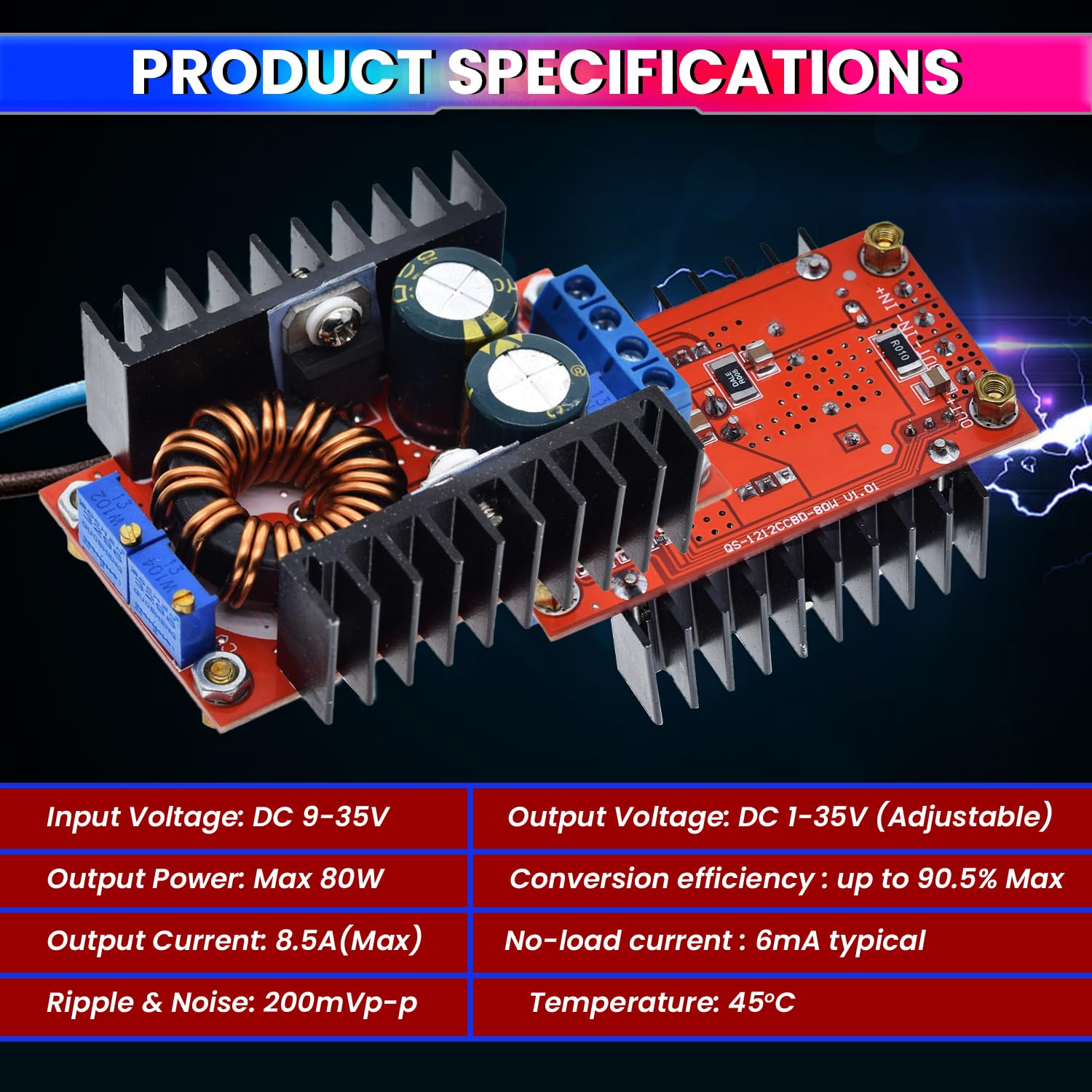

Specifications:
Product: Buck Boost Convertor
Input voltage : DC 9-35V
Output Voltage : DC 1-35V (Adjustable)
Output Current : 8.5A(MAX) (Adjustable)
Input current : 12A (MAX)(heatsink will be necessary for over 6A)
Output Power : natural cooling 80W (MAX)
Conversion efficiency : 90.5% Max (14V to 12V 2A)
Ripple and Noise : 200mVp-p
No-load current : 6mA typical
Working temperature : 45 degrees
Low stock
In stock, ready to ship
Have a question?
Description
- Wide Voltage Range & High Power Output – Supports DC 10-35V input and provides an adjustable 1-35V output, delivering up to 8.5A and 80W max, ideal for a variety of applications.
- Buck-Boost Functionality – Efficiently steps up or steps down voltage to match your specific requirements, ensuring stable performance for sensitive electronics.
- High Conversion Efficiency – Features an advanced design with up to 90.5% efficiency, ensuring minimal energy loss and optimal power conversion.
- Superior Heat Dissipation & Stable Performance – Equipped with an airfoil heat sink for enhanced cooling, preventing overheating and ensuring long-term stability in high-power applications.
- Smart Protection Features – Includes adjustable under-voltage protection for battery safety, short circuit protection, and over-temperature protection with power reduction mode to prevent damage.
- Versatile Applications – Designed for battery charging, high-power LED lighting, and solar cell applications, with a constant current function and dual-color LED indicators for clear charging status visibility.
- Warranty- 1-Year Warranty & Dedicated Support : -For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.
Specifications:
Product: Buck Boost Convertor
Input voltage : DC 9-35V
Output Voltage : DC 1-35V (Adjustable)
Output Current : 8.5A(MAX) (Adjustable)
Input current : 12A (MAX)(heatsink will be necessary for over 6A)
Output Power : natural cooling 80W (MAX)
Conversion efficiency : 90.5% Max (14V to 12V 2A)
Ripple and Noise : 200mVp-p
No-load current : 6mA typical
Working temperature : 45 degrees
